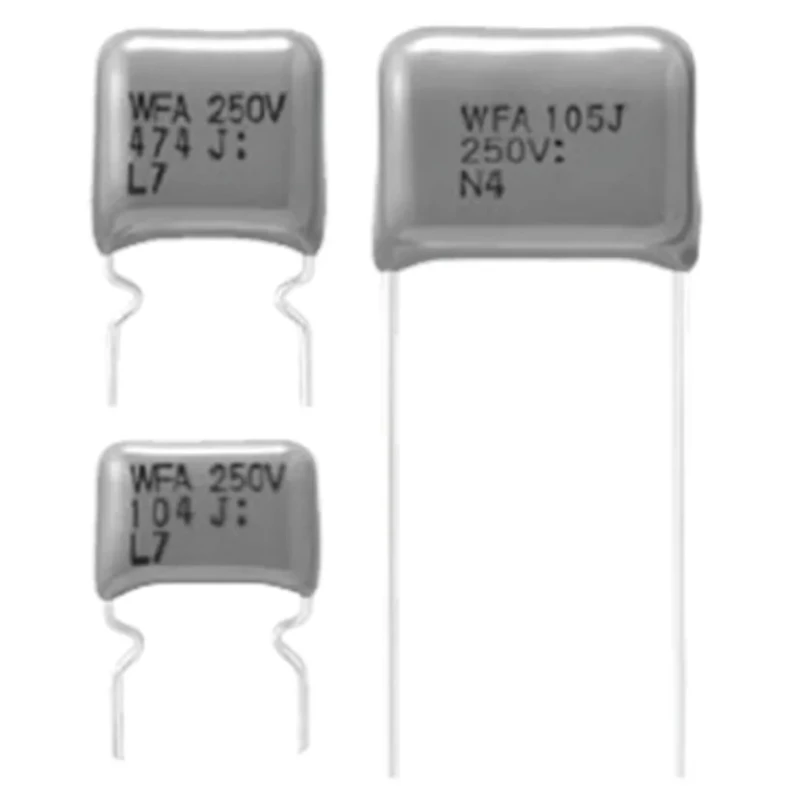

Panasonic ECWF(A) Film Capacitor, 680 nF ±5%, 450 V DC, Through Hole, Lead Pitch 15mm ECWF2W684JA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 12.1mm |
| Length | 18.1mm |
| Model | ECWF2W684JA |
| Packaging | Bag |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | ECWF(A) |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 680nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Dissipation Factor | 0.1% |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 727-0120Brand: PanasonicManufacturers Part No.: ECWF2W684JADistrelec Article No.: 304-45-739 |
| Rated DC Voltage | 450V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact metallised polypropylene film design ensuring low loss and low noise.
- Tolerates operating temperatures from -40°C up to 105°C.
- Lead pitch of 15 mm for through-hole mount compatibility.
- Encapsulated with self-extinguishing material compliant with UL94V-0 for safety.
- Complies with automotive standard AEC-Q200 and international certifications CSA E60384-14, EN 60384-14, UL 60384-14.
- Suitable for active filter circuits, high current and high frequency applications up to 450 V DC.
- Available in bag packaging, ensuring protection during transport and handling.
- Dissipation factor of 0.1% for efficient performance in electronic circuits.
Product Description
Panasonic ECWF2W684JA ECWF(A) film capacitor is a metallised polypropylene film capacitor designed for demanding high current and high frequency applications requiring low loss and low noise performance. It features a capacitance of 680 nF with a tolerance of ±5%, a rated DC voltage of 450 V, and a through-hole mount type with a 15 mm lead pitch.
This capacitor is encapsulated in a self-extinguishing material meeting UL94V-0 standards, providing excellent safety and reliability. It operates efficiently over a wide temperature range from -40°C to 105°C, making it suitable for automotive and industrial electronic environments compliant with AEC-Q200 standards.
Dimensions are compact with 18.1 mm length, 7.5 mm width, and 12.1 mm height, making it 50% smaller than comparable series like ECQE(H) and ECWF(S). The capacitor's terminal type is through-hole, with a lead diameter of 0.8 mm, facilitating easy perfboard and PCB mounting.
Applications include high current circuits, high frequency circuits, and active filter circuits up to 450 V DC. Its low dissipation factor of 0.1% ensures minimal energy loss, enhancing circuit efficiency. The product meets international standards CSA E60384-14, EN 60384-14, and UL 60384-14.
The model ECWF2W684JA guarantees stable and reliable performance in critical electronic component assemblies.
Compact metallised polypropylene design with low loss and low noise. Wide operating temperature range from -40°C to 105°C. Compliant with automotive and international safety standards. Through-hole mounting with 15 mm lead pitch and 0.8 mm lead diameter.
Ideal for high current, high frequency, and active filter circuit applications. Self-extinguishing UL94V-0 encapsulation for enhanced safety. Dimensions: 18.1x7.5x12.1 mm (LxWxH). Capacitance 680 nF with ±5% tolerance. Explore more high-quality Film Capacitors and electronic components on EnvMart for industrial, automotive, manufacturing, and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 680 nF with a tolerance of ±5%.
It has a maximum rated DC voltage of 450 V.
The dimensions are 18.1 mm in length, 7.5 mm in width, and 12.1 mm in height.
The lead pitch for this through-hole mount capacitor is 15 mm.
This capacitor operates efficiently over a temperature range from -40°C to 105°C.
It is encapsulated in a self-extinguishing material that complies with UL94V-0 standards.
It complies with the automotive standard AEC-Q200.
The dissipation factor is 0.1%, ensuring efficient performance in electronic circuits.
This model features a through-hole terminal type with a lead diameter of 0.8 mm.
It is available in bag packaging, providing protection during transport and handling.
It is suitable for high current circuits, high frequency circuits, and active filter circuits up to 450 V DC.
This model meets international standards CSA E60384-14, EN 60384-14, and UL 60384-14.
