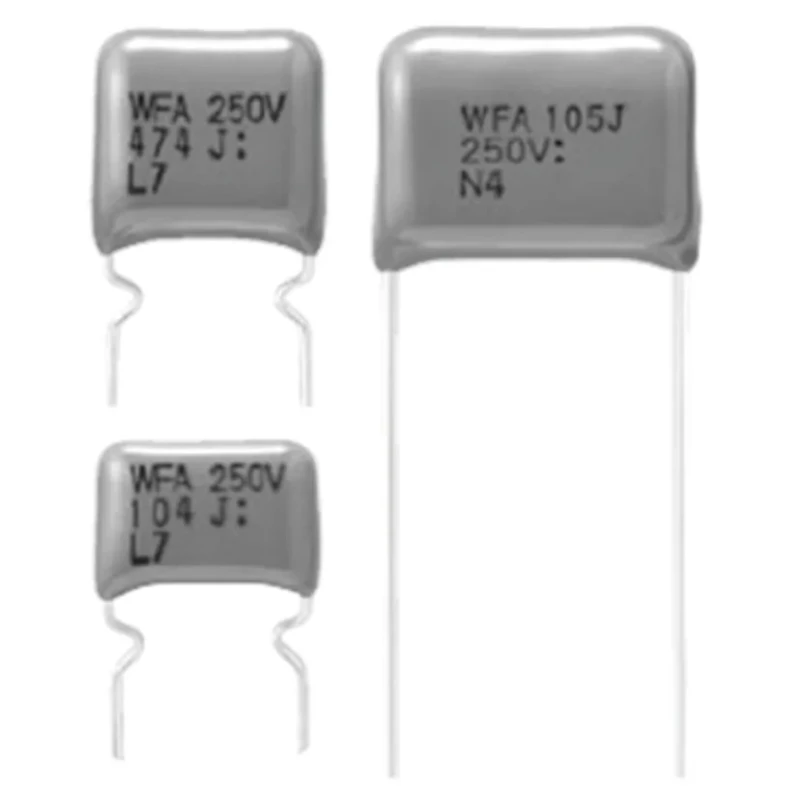

Panasonic ECWF(A) Film Capacitor, ±5 %, 680 nF, 250 V DC, Through Hole Mount ECWF2684JAQ

Panasonic ECWF2684JAQ Film Capacitor is a metallised polypropylene capacitor optimized for high current and high frequency applications, featuring a capacitance of 680 nF and a rated DC voltage of 250 volts. Designed with a through hole mounting style, this capacitor offers reliable performance in demanding electronic circuits.

This film capacitor features ±5 % capacitance tolerance, enabling precise and consistent capacitance essential for active filter circuits and other high-frequency applications. It is constructed with powder resin coating and lead wire type terminals for durability and stability.

The capacitor measures 23.5 mm in height, 18.1 mm in length, and 7.4 mm in width, making it compact and space-efficient. It complies with automotive standard AEC-Q200 and recognized safety standards including CSA E60384-14, EN 60384-14, and UL 60384-14, assuring quality and safety in industrial and automotive environments.

Operating temperature ranges from -40°C to 105°C, suitable for a variety of harsh conditions. Its low dissipation factor of 0.1% contributes to minimal energy losses, supporting efficiency in power systems.

Encapsulated in a UL94V-0 self-extinguishing material, this capacitor enhances safety by reducing fire risks. Its lead pitch is 15 mm and lead diameter 0.8 mm, enabling straightforward PCB assembly.

This capacitor excels in high-frequency, high-current circuits, and active filter circuits up to voltage ratings of 450 V DC, making it ideal for industrial, automotive, and electronic manufacturing applications.

Package includes the film capacitor bagged for easy handling and installation readiness. Capacitance of 680 nanofarads ensures suitable electrical performance. Rated for a DC voltage of 250 volts for reliable operation. Through hole mount type provides stable mechanical and electrical connections.

Offers ±5 % capacitance tolerance for precision applications. Suitable for high-frequency, high-current circuits and active filter circuits. Compact design with dimensions 23.5 mm height, 18.1 mm length, and 7.4 mm width.

Meets automotive standard AEC-Q200 ensuring quality and reliability. Operational temperature range from -40°C to 105°C for versatile environments. Encapsulated in UL94V-0 self-extinguishing material for safety. Low dissipation factor of 0.1 % minimizes energy loss.
