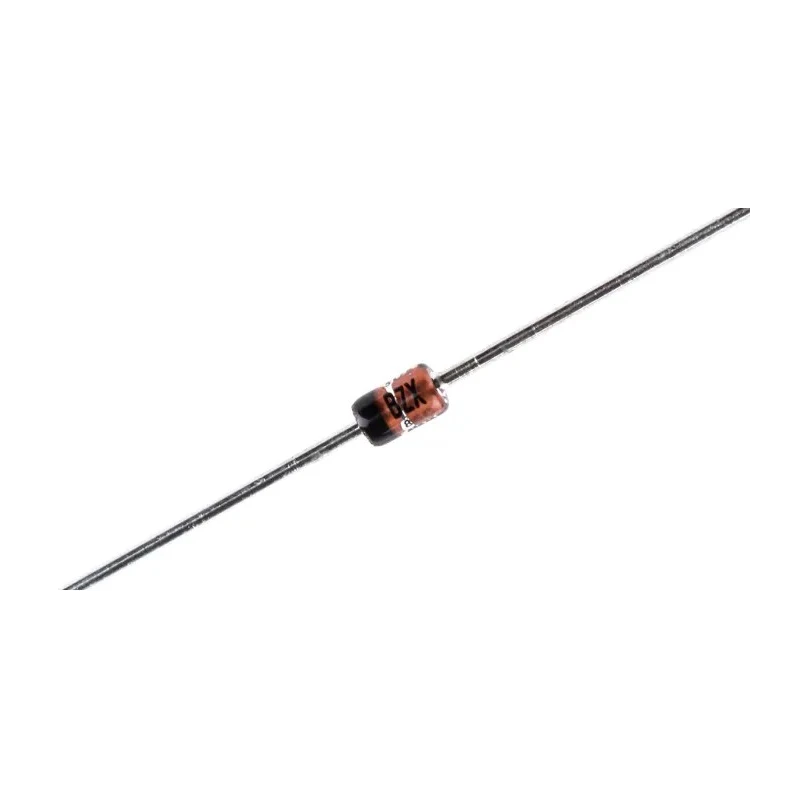

Vishay 3.3 V 1.3 W Voltage Regulator Zener Diode Single Through Hole 2-Pin DO-41 BZX85C3V3-TAP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.6mm |
| Length | 4.1mm |
| Model | BZX85C3V3-TAP |
| Mount Type | Through Hole |
| Series | BZX85 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -55°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 708-7922PBrand: VishayManufacturers Part No.: BZX85C3V3-TAP |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1.3W |
| Diode Configuration | Single |
| Test Current It | 80mA |
| Maximum Reverse Leakage Current | 40μA |
| Nominal Zener Voltage Vz | 3.3V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 20Ω |
Key Features
- Features a single diode configuration for precise voltage regulation.
- Designed for through-hole mounting with a 2-pin DO-41 package.
- Maximum power dissipation of 1.3 watts supports efficient heat handling.
- Operational temperature range from -55°C to 175°C for versatile applications.
- Complies with AEC-Q101 automotive standards for quality and reliability.
- Minimal reverse leakage current of 40μA for stable performance.
- Compact dimensions with length 4.1 mm and height 2.6 mm.
- Typical voltage temperature coefficient of -0.07% per °C enhances stability.
Product Description
Vishay BZX85C3V3-TAP is a 3.3 V Zener Diode designed for voltage regulation in electronic circuits, offering 1.3 W of maximum power dissipation. It features a single diode configuration housed in a 2-pin DO-41 through-hole package, facilitating easy PCB mounting and replacement.
This diode is engineered for use in stabilizing and clipping circuits, especially where consistent voltage regulation is required under varying loads and temperatures. It operates reliably across a wide temperature range from -55°C to 175°C, making it suitable for industrial, automotive, and consumer electronics applications.
The device complies with the stringent AEC-Q101 automotive standard, underscoring its suitability for transport sector electronics. Its low reverse leakage current of 40μA and maximum Zener impedance of 20 ohms ensure precise and dependable operating characteristics.
Key physical attributes are compact, with a length of 4.1 mm and a height of 2.6 mm, enabling integration into space-constrained PCB layouts. The negative temperature coefficient (-0.07%/°C) further promotes voltage stability across temperature variations.
Features a single diode configuration for precise voltage regulation. Designed for through-hole mounting with a 2-pin DO-41 package. Maximum power dissipation of 1.3 watts supports efficient heat handling. Voltage tolerance of 6% ensures consistent Zener voltage of 3.3 V.
Operational temperature range from -55°C to 175°C for versatile applications. Complies with AEC-Q101 automotive standards for quality and reliability. Minimal reverse leakage current of 40μA for stable performance. Compact dimensions with length 4.1 mm and height 2.6 mm.
Typical voltage temperature coefficient of -0.07% per °C enhances stability.
This Zener Diode is ideal for use in industrial electronics, automotive systems, power management units, and other electronic assemblies where voltage regulation and reliability are critical. EnvMart offers this authentic Vishay component to meet high-quality standards and ensure effective circuit protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum power dissipation of this model is 1.3 watts, which supports efficient heat handling during operation.
The nominal Zener voltage of this diode is 3.3 V, ensuring consistent voltage regulation in electronic circuits.
It operates reliably across a wide temperature range from -55°C to 175°C, making it suitable for various applications.
This model is housed in a DO-41 package type, designed for through-hole mounting.
The maximum reverse leakage current for this Zener diode is 40μA, which contributes to its stable performance.
This diode features a 2-pin configuration, which facilitates easy integration into circuit designs.
It complies with the AEC-Q101 automotive standard, ensuring quality and reliability for automotive applications.
The maximum Zener impedance for this diode is 20 ohms, which helps maintain voltage stability under varying loads.
The dimensions of this model are 4.1 mm in length and 2.6 mm in height, allowing for compact PCB layouts.
It features a single diode configuration, which is essential for precise voltage regulation in circuits.
The typical voltage temperature coefficient is -0.07% per °C, enhancing voltage stability across temperature variations.
This Zener diode is suitable for industrial electronics, automotive systems, and power management units, where reliable voltage regulation is critical.
