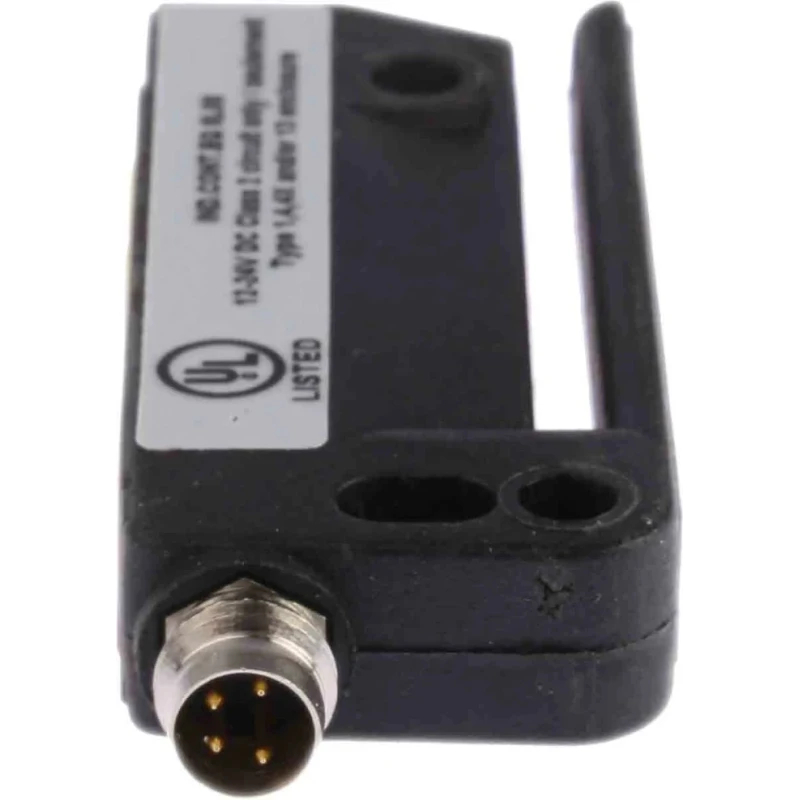

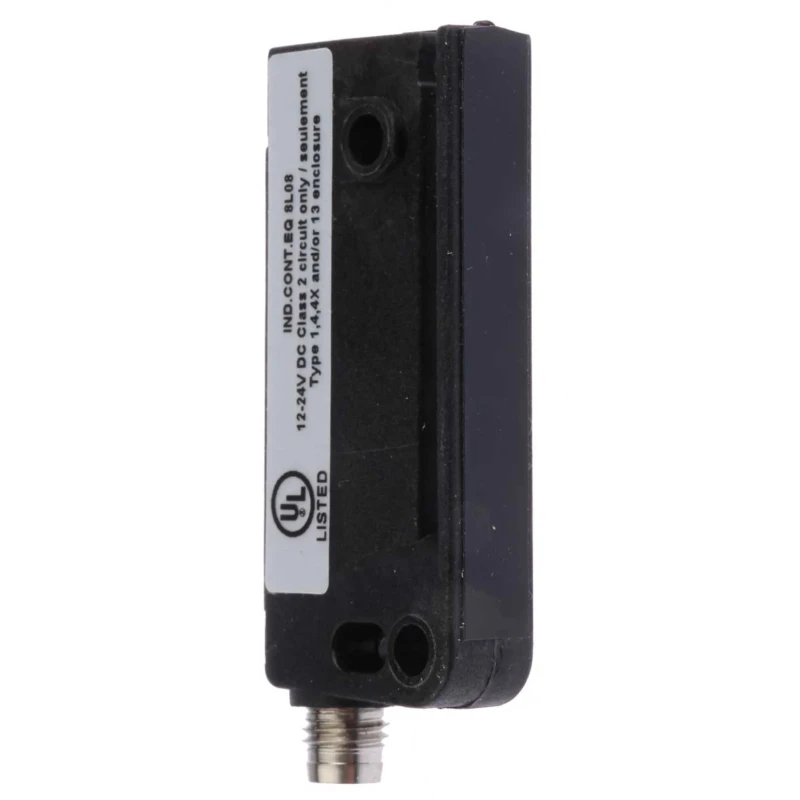

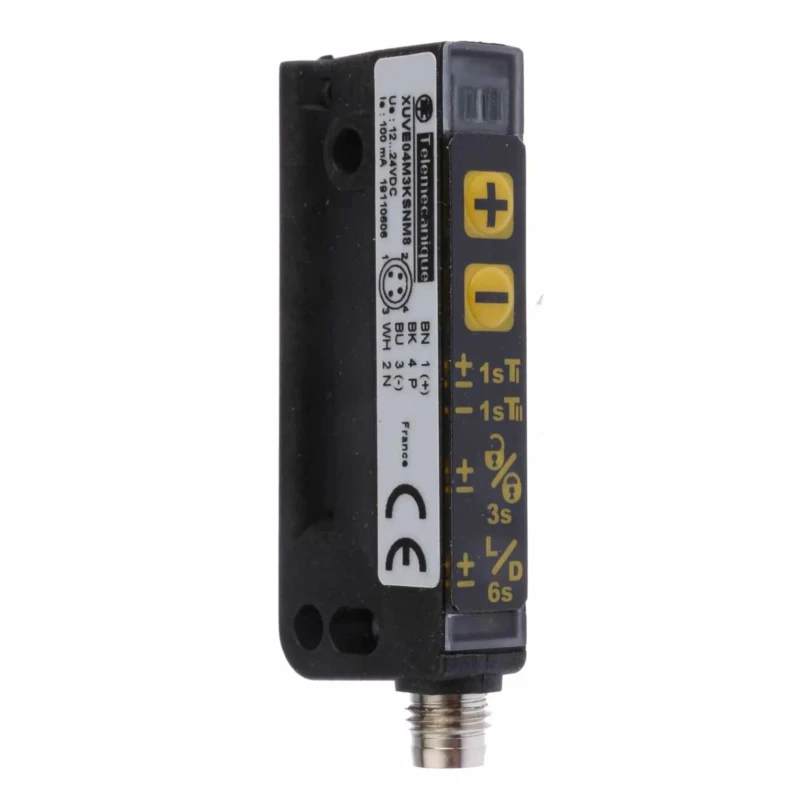

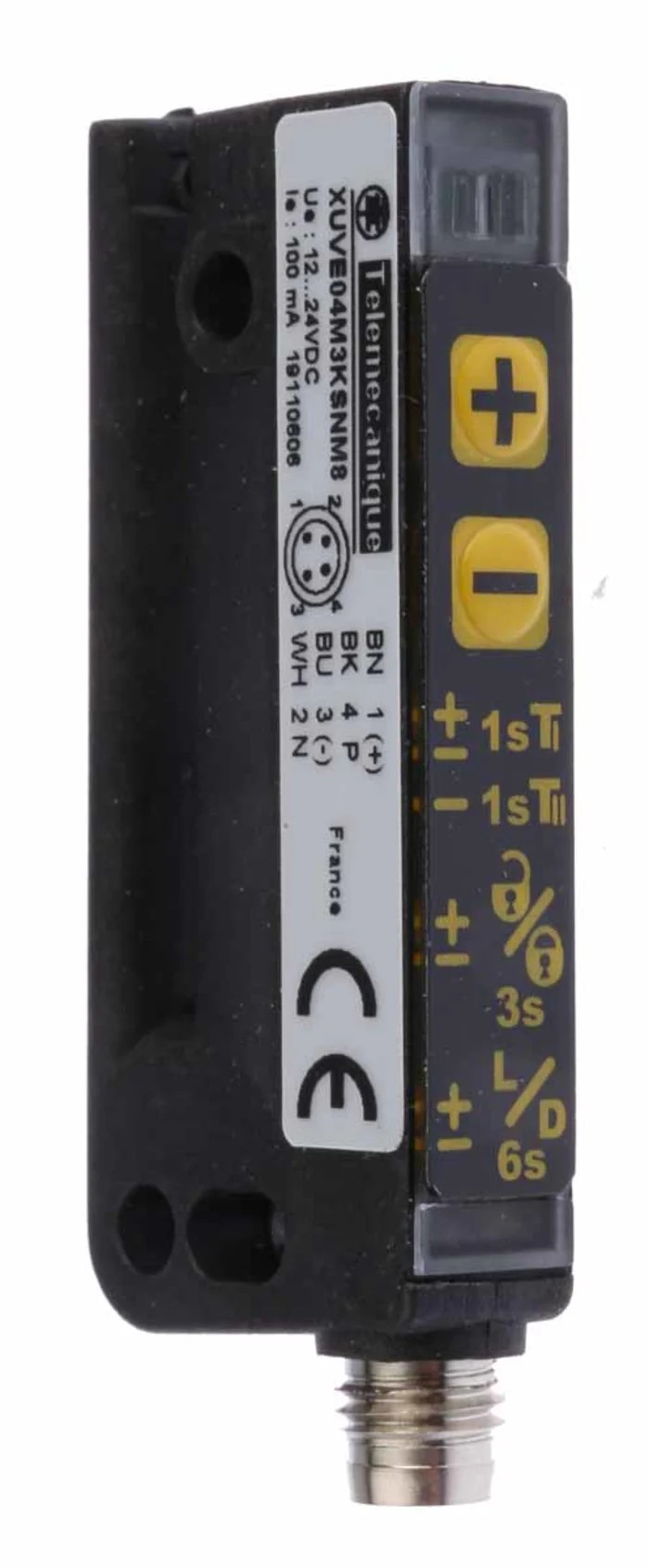

Telemecanique Sensors Through Beam Photoelectric Sensor Fork Style 3 mm Detection Range NPN/PNP Output IP65

Telemecanique Sensors model XUVE04M3KSNM8 is a highly efficient through beam photoelectric sensor designed with a fork sensor style for detection of opaque labels and small objects. It provides precise operation with a 3 mm detection range and employs an infrared light source optimized for accuracy in various industrial and automation settings.

The sensor features a robust thermoplastic housing with an IP65 rating, offering protection against dust and water ingress, suitable for harsh industrial environments. Its compact design includes a depth of 40 mm, making it adaptable to tight installation spaces. It operates over a temperature range from -20°C to 60°C ensuring stable performance in varying ambient conditions.

Equipped with an adjustable numeric potentiometer and LED indicators, users can fine-tune the sensor's sensitivity effectively. The output type supports both NPN and PNP configurations with a 4-pin connector for straightforward integration into existing control systems. The maximum DC voltage rating is 24 V with a maximum current of 100 mA, suitable for standard industrial automation applications.

The sensor responds rapidly with a response time of 50 microseconds, ensuring timely detection in fast-moving production lines. The device includes output state yellow LEDs to indicate sensor activation and red LEDs for adjustment and keypad locking status. It meets CE and cULus approvals, confirming compliance with relevant international standards.

This photoelectric sensor is ideal for applications in industrial automation, manufacturing processes, packaging lines, and labelling systems where precise detection of small objects is critical. Its accuracy of +/- 50 μm at speeds of 150 m/min ensures high reliability and repeatability in detection tasks.

Infrared light source optimized for optical detection. Thermoplastic IP65 rated housing resists dust and water. Fork style sensor designed for label and object detection. Adjustable numeric potentiometer with LED feedback.

Supports NPN/PNP output for versatile interfacing. Rapid 50 microsecond response time for fast detection. Operating temperature range from -20°C to 60°C. Compliance with CE and cULus safety standards. Discover more about Photoelectric Sensors in our Electronics & Electricals Sensor category at EnvMart to find tailored solutions for your industrial automation needs.
