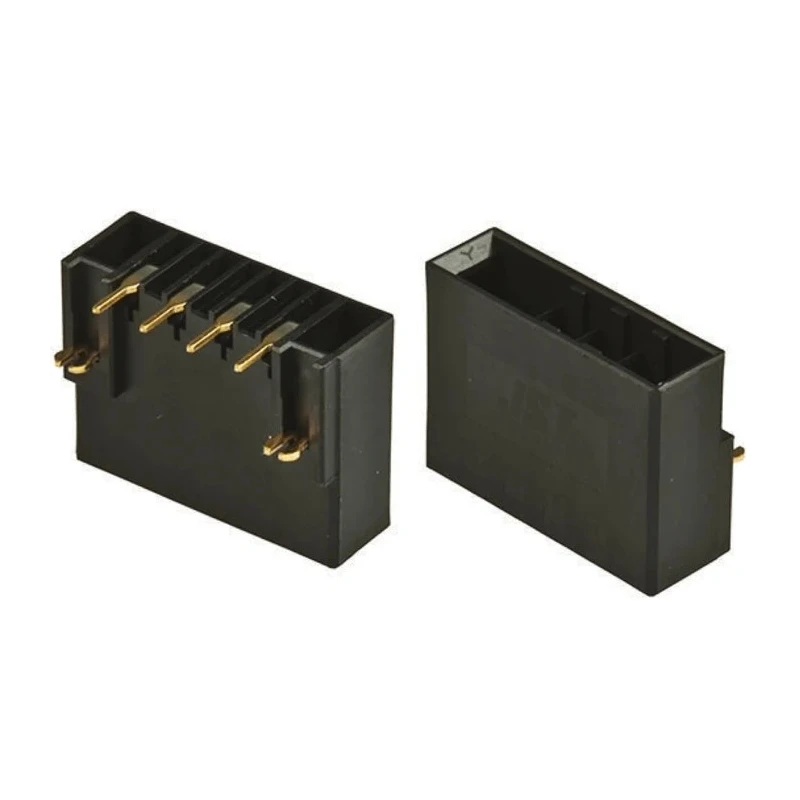

JST JFA J300 Series Right Angle Through Hole PCB Header 6 Contacts 5.08 mm Pitch 1 Row Shrouded S06B-F32SK-GGXR

JST S06B-F32SK-GGXR is a high-quality PCB header from the JFA J300 Series designed for right angle through hole mounting applications on printed circuit boards. Featuring a shrouded 6 contact wire-to-board connector with a 5.08 mm pitch and a single-row configuration, it ensures a secure and reliable connection. The header is manufactured with a thermoplastic housing material, providing robust insulation and mechanical strength.

This series is known for its double spring construction in related connectors, which includes main and contact pressure adjustment springs, enhancing connection stability. The contacts are made of copper alloy with gold plating to guarantee excellent conductivity and corrosion resistance. The header can handle a current rating of 10.5A and voltage up to 600V, supporting demanding electronic applications.

The JST S06B-F32SK-GGXR operates reliably across a wide temperature range from -55°C up to 105°C, making it suitable for various industrial environments including electronics manufacturing, automotive, and power systems. Its solder termination type allows for secure through-hole PCB mounting. It is also designed with housing lances and a secure locking mechanism to prevent accidental disconnections.

This connector series is intended for applications that require dependable wire-to-board connections with polarization options achieved via specific key codes, preventing incorrect mating. Typically compatible with 14-28 AWG wire sizes, it offers flexibility across multiple wiring requirements.

The product is RoHS compliant, and although there are no listed certifications, it reflects high standards of manufacture in Japan. This PCB header is ideal for electronics, laboratory, manufacturing, and power distribution uses where high performance wire-to-board connections are critical.

Designed for wire-to-board connections with a right angle orientation. Constructed with thermoplastic housing for durability and insulation. Contacts are made of copper alloy with gold plating for reliable conductivity. Supports current rating up to 10.5A and voltage up to 600V.

Operates reliably within a temperature range of -55°C to 105°C. Features solder termination type suitable for PCB mounting. Uses a shrouded design to enhance connection security and prevent mis-mating. Has a single row with 6 male contacts spaced at 5.08 mm pitch.

Manufactured in Japan ensuring high production standards. Explore more high-quality PCB Headers and connectors within the Electronics & Electricals category at EnvMart for reliable industrial-grade components.
