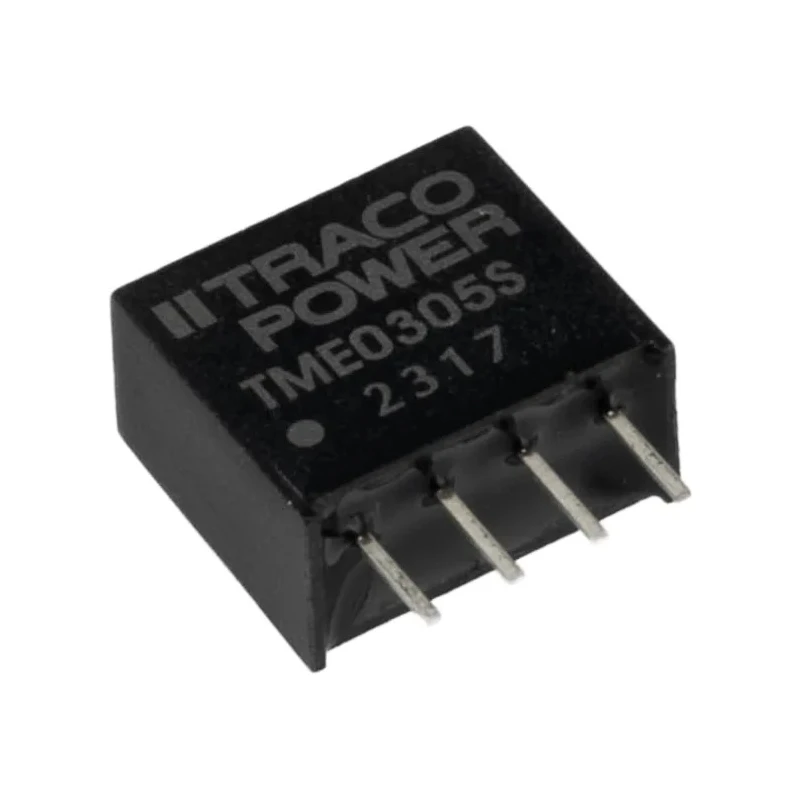

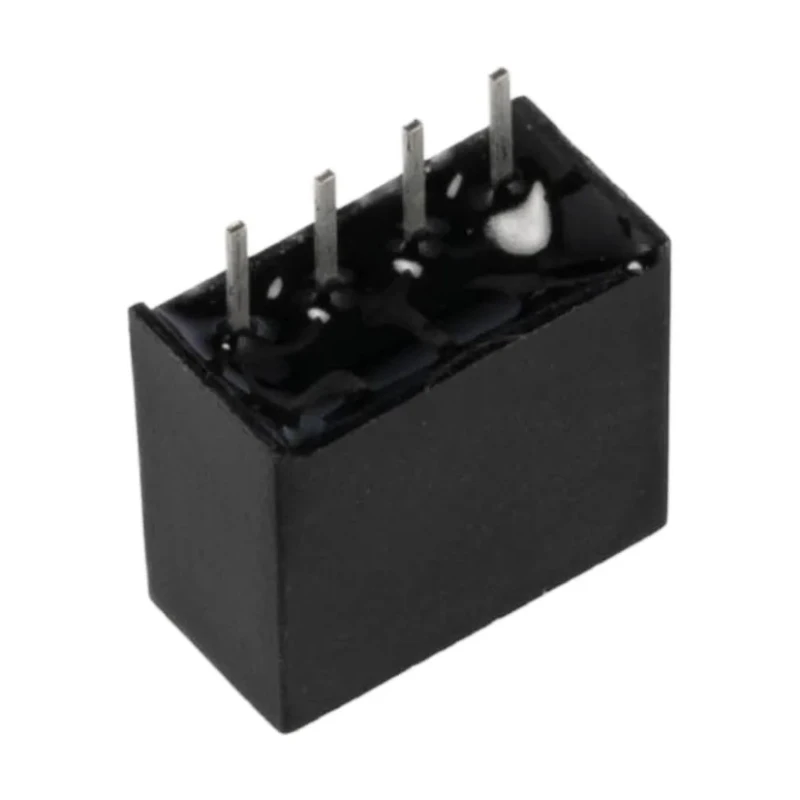

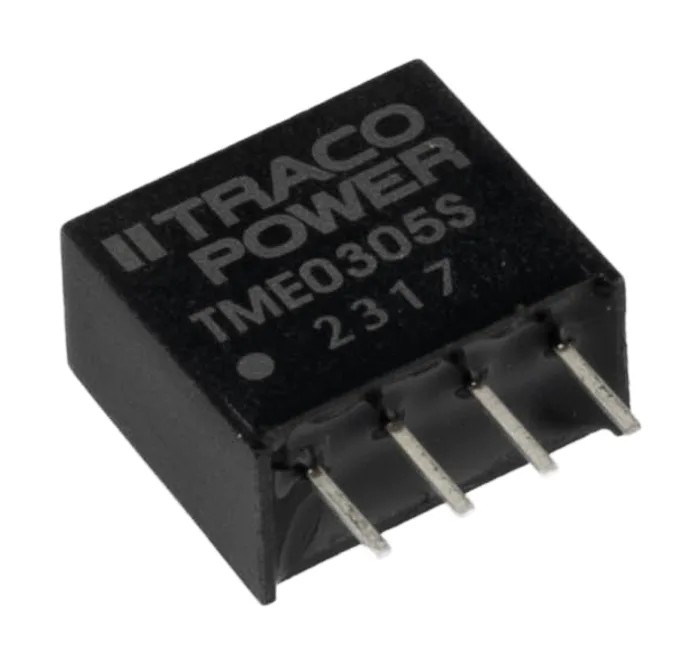

TRACOPOWER DC/DC Converter 5V dc 200 mA 1 W SIP Through Hole 2.97-3.63 V Input TME 0305S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 77% |
| Length | 11.5mm |
| Model | TME 0305S |
| Depth | 10.2mm |
| Width | 6.1mm |
| Mount Type | Through Hole |
| Series | TME |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 3.63V |
| Minimum Input Voltage | 2.97V |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 706-5445Brand: TRACOPOWERManufacturers Part No.: TME 0305SDistrelec Article No.: 303-73-475 |
| Number of Pins | 4 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1kV dc |
Key Features
- Operates with input voltage range 2.97 V to 3.63 V for flexible power supply conditions.
- Features an isolated single output with 1 kV DC isolation voltage ensuring safety in board-level power distribution.
- Rated for continuous operation in wide temperature range -40°C to 85°C, suitable for harsh environments.
- Efficient conversion with typical efficiency of 77%, minimizing energy loss.
- Compact dimensions of 11.5 mm length, 6.1 mm width, and 10.2 mm depth fit space-critical applications.
- Designed with non-conductive black plastic casing rated UL 94-V0 for flame resistance.
- Short circuit protection limits current duration to 0.5 seconds preventing damage under fault conditions.
- Low output ripple and noise (max 150 mVp-p) ensures stable performance for sensitive electronics.
Product Description
TRACOPOWER TME 0305S is a miniature, isolated, single-output DC/DC converter providing 5V DC output at 200 mA with 1 W maximum power. Packaged in a SIP form factor for through-hole mounting, it demands minimal board space at 0.7 cm², making it ideal for high-density industrial PCB power distribution.
This converter operates from a low input voltage range between 2.97 V and 3.63 V, ensuring adaptability in different power environments. It provides galvanic isolation of 1,000 V DC between input and output to enhance system safety and noise suppression.
Designed for harsh industrial use, the unit functions reliably within a broad temperature range from -40°C to 85°C and features a black, non-conductive, UL 94-V0 rated plastic case. The converter’s electrical performance includes short circuit protection with a maximum 0.5 s current limiting, 150 mVp-p output ripple, and temperature coefficient of ±0.01% per K typical.
Compact dimensions (11.5 mm length, 6.1 mm width, 10.2 mm depth) allow integration into space-efficient designs. Its mean time between failures (MTBF) of 2,000,000 hours confirms industrial-grade reliability for applications in automation, instrumentation, control systems, and other electronics requiring stable and isolated low-power DC supply.
Operates within industrial temperature extremes. High isolation voltage supporting safety requirements. Low output noise and ripple for sensitive devices. Robust short circuit protection. Minimal board footprint for compact designs.
Complies with RoHS environmental standards. UL 94-V0 rated casing ensures flame retardance. High reliability with 2 million hours MTBF. Lead-free construction suitable for green manufacturing. Industrial and laboratory use cases including power supply isolation and signal conditioning.
This TRACOPOWER TME series DC/DC Converter is a reliable, space-saving solution for industrial, laboratory, automation, and commercial electronic applications requiring efficient, isolated 5V DC power with low noise and strong protection features. Explore more power conversion solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range of 2.97 V to 3.63 V, allowing for flexible power supply conditions.
The maximum output power of the TRACOPOWER TME 0305S is 1 W, with a rated output current of 200 mA at 5 V DC.
This unit has compact dimensions of 11.5 mm in length, 6.1 mm in width, and 10.2 mm in depth, making it suitable for space-critical applications.
The TRACOPOWER TME 0305S features an isolation voltage of 1 kV DC, enhancing safety in board-level power distribution.
This DC/DC converter has a typical efficiency of 77%, which helps minimize energy loss during operation.
It is rated for continuous operation within a wide temperature range of -40°C to 85°C, suitable for harsh environments.
This model is designed for through-hole mounting, packaged in a SIP form factor for minimal board space usage.
The TME 0305S includes short circuit protection that limits current duration to a maximum of 0.5 seconds to prevent damage under fault conditions.
This DC/DC converter provides a single output, delivering 5 V DC at a maximum output current of 200 mA.
The TRACOPOWER TME 0305S has an MTBF of 2,000,000 hours, indicating high reliability for industrial applications.
It is designed with a non-conductive black plastic casing rated UL 94-V0 for flame resistance, ensuring safety during operation.
Yes, this model complies with RoHS environmental standards, making it suitable for green manufacturing practices.
