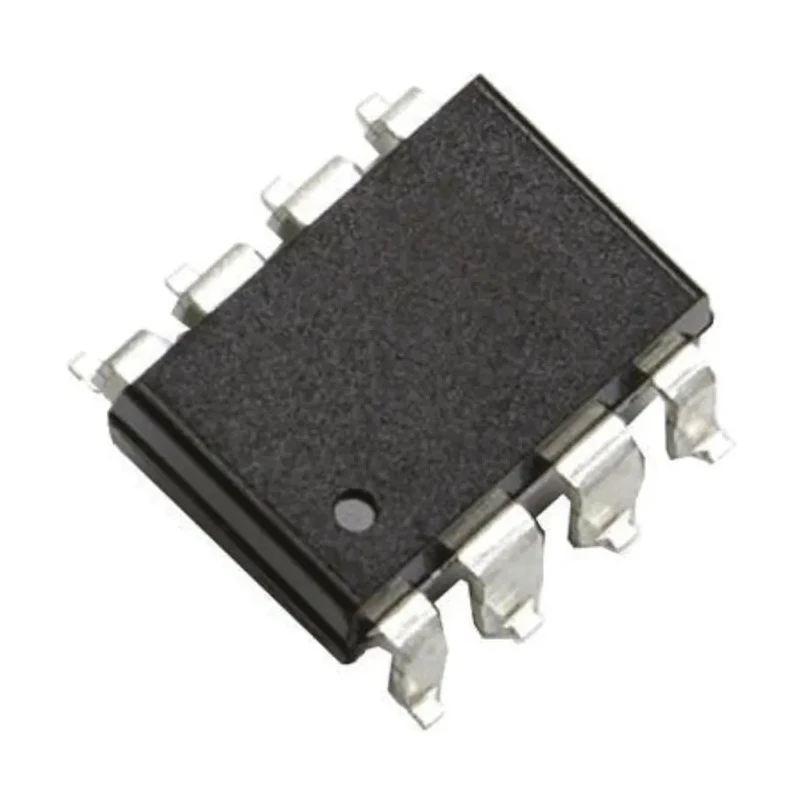

Broadcom ASSR Series Solid State Relay PCB Mount 0.6 A Load 60 V Load 1.7V Control ASSR-1420-302E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.6mm |
| Length | 9.7mm |
| Model | ASSR-1420-302E |
| Width | 6.4mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | ASSR |
| Maximum Operating Temperature | +85°C |
| Contact Configuration | SPST |
| Package Type | DIP-8 |
| Minimum Operating Temperature | -40°C |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 0.6A |
| Standards/Approvals | RoHS, CSA, IEC, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 693-6898PBrand: BroadcomManufacturers Part No.: ASSR-1420-302E |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | -60V |
| Minimum Control Voltage | 1.1V |
| Maximum Control Voltage | 1.7V |
| Off State Leakage Current | 0.5nA |
| On State Resistance | 0.2Ω |
Key Features
- Compact DIP-8 package suitable for PCB mounting applications.
- SPST contact configuration optimized for AC and DC switching.
- Operating temperature ranges from -40°C to +85°C ensuring robust performance.
- Low On State Resistance of 0.2 ohms reduces power loss during operation.
- MOSFET output type delivers high-speed switching with minimal leakage current of 0.5 nA.
- Wide load voltage range from -60 V to 60 V supports diverse industrial needs.
- Complies with RoHS, CSA, IEC, and UL standards for quality and safety.
Product Description
Broadcom ASSR-1420-302E is a Solid State Relay designed for PCB mounting, supporting a maximum load current of 0.6 Amps and a maximum load voltage of 60 Volts. The relay operates with a minimum control voltage of 1.1 V and a maximum control voltage of 1.7 V, enabling precise AC and DC switching functions. Its compact DIP-8 package and robust operational temperature range from -40°C to +85°C make it ideally suited for industrial automation, electrical equipment, and control systems.
This relay incorporates a high-speed Photo MOSFET output stage featuring low on-state resistance of 0.2 ohms, which contributes to efficient power management and minimal heat dissipation. The device exhibits a minimal off-state leakage current of 0.5 nA, improving reliability in sensitive signal conditioning applications. Moreover, the SPST contact configuration facilitates straightforward circuit integration with isolated input and output stages.
Broadcom's ASSR series complies with important industry standards including RoHS, CSA, IEC, and UL, ensuring adherence to safety and environmental regulations. The relay measures 9.7 mm in length, 6.4 mm in width, and 3.6 mm in height, offering a compact form factor for space-constrained designs.
Typical use cases include industrial automation equipment, HVAC control, manufacturing machinery, signal isolation, and other applications requiring reliable solid-state switching. The relay's MOSFET output type provides faster switching speeds and longer lifespan compared to electromechanical relays, making it suitable for high-performance electronic systems.
Compact DIP-8 package suitable for PCB mounting applications. SPST contact configuration optimized for AC and DC switching. Operating temperature ranges from -40°C to +85°C ensuring robust performance. Low On State Resistance of 0.2 ohms reduces power loss during operation.
MOSFET output type delivers high-speed switching with minimal leakage current of 0.5 nA. Wide load voltage range from -60 V to 60 V supports diverse industrial needs. Complies with RoHS, CSA, IEC, and UL standards for quality and safety.
Length and width dimensions of 9.7mm by 6.4mm enable compact design integration. Explore the broad range of Solid State Relays at EnvMart for various industrial and automation control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.6 Amps.
It supports a wide load voltage range from -60 V to 60 V.
The control voltage for this unit ranges from 1.1 V to 1.7 V.
This relay features a MOSFET output type, which allows for high-speed switching.
The on-state resistance is 0.2 ohms, which helps reduce power loss during operation.
The operating temperature range for the ASSR-1420-302E is from -40°C to +85°C.
This solid state relay measures 9.7 mm in length, 6.4 mm in width, and 3.6 mm in height.
It has an SPST contact configuration, optimized for AC and DC switching.
This model complies with RoHS, CSA, IEC, and UL standards for quality and safety.
The off-state leakage current is 0.5 nA, which enhances reliability in sensitive applications.
It comes in a compact DIP-8 package suitable for PCB mounting applications.
Typical applications include industrial automation equipment, HVAC control, and signal isolation.
