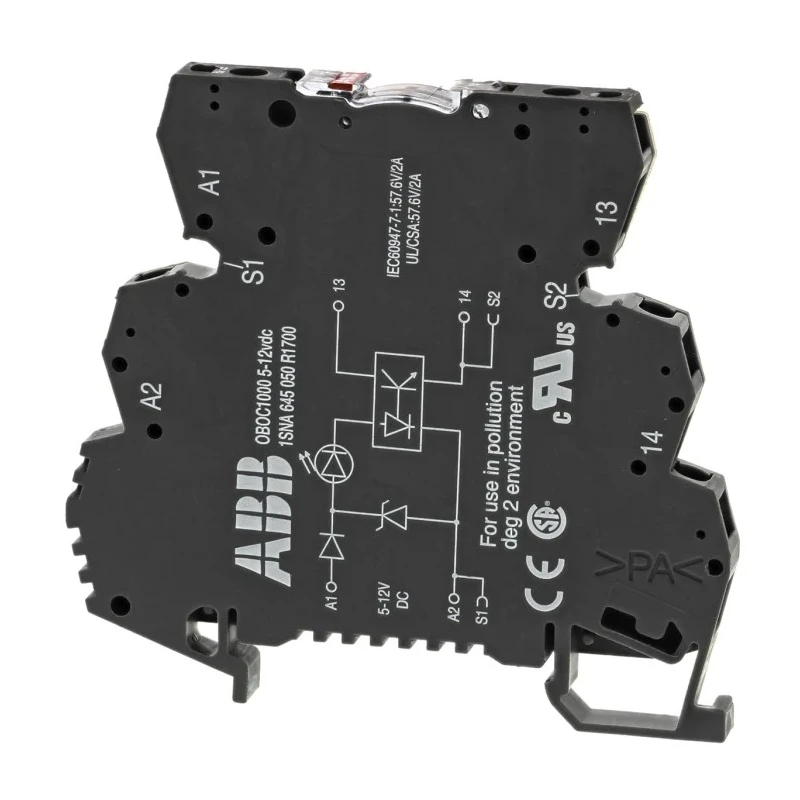

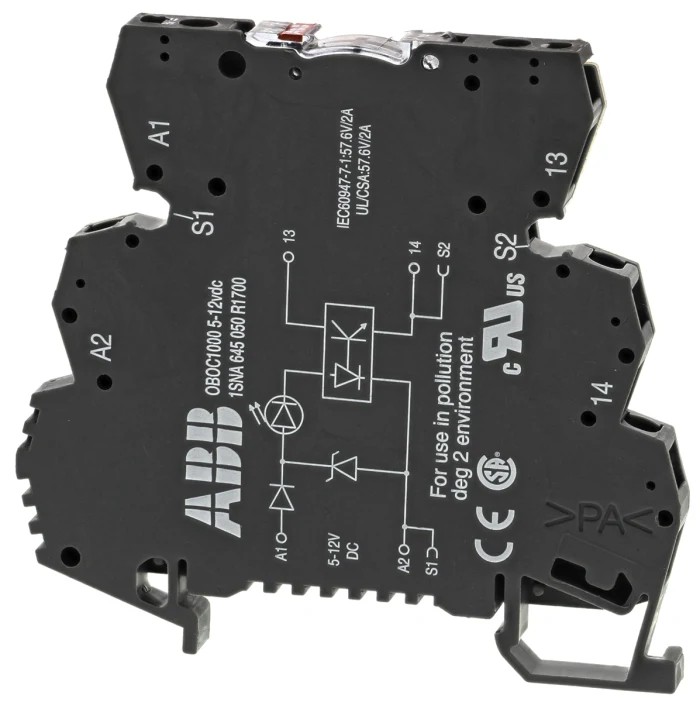

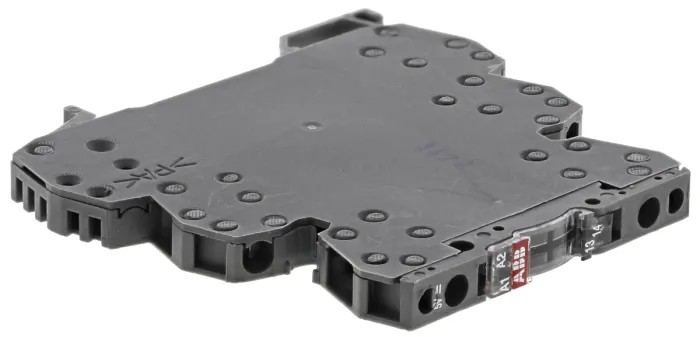

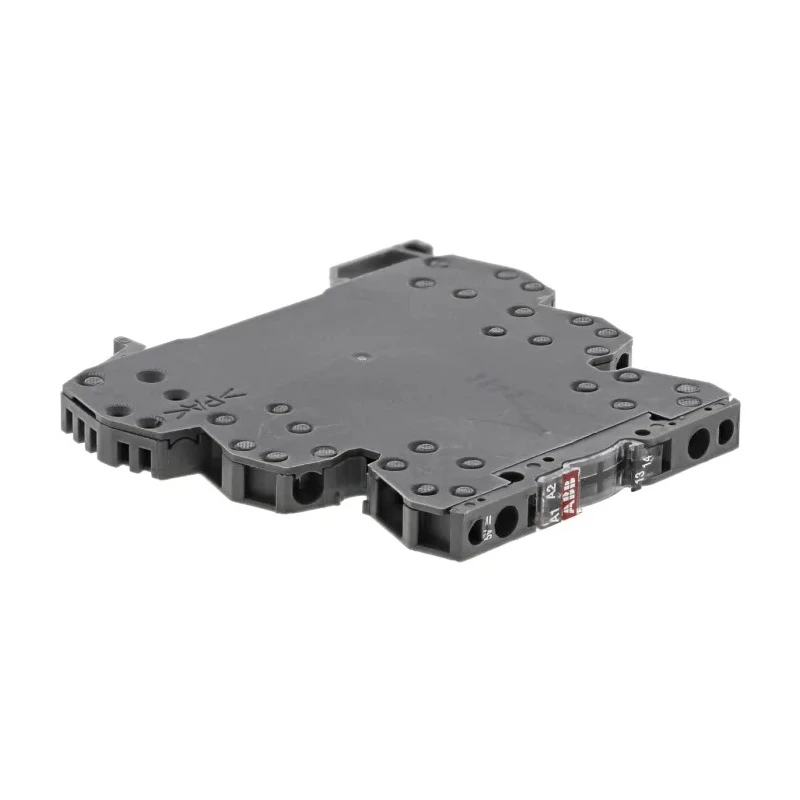

ABB R600 Series Solid State Relay 12 A Load DIN Rail Mount 400 V AC Load 250 V AC/DC Control 1SNA645050R1700 OBOC2000-5-12VDC

ABB 1SNA645050R1700 OBOC2000-5-12VDC R600 Series Solid State Relay is a high-performance electrically operated switch designed for control and switching of AC loads up to 12 amperes. Designed for DIN rail mounting, this relay offers reliable insulation and switching capabilities suitable for industrial and automation applications.

The relay supports a maximum load voltage of 400 V AC and control voltage ranging from 5 V AC/DC to 250 V AC/DC, providing flexibility across various control environments. Its compact design measures 70 mm in length and 6 mm in width, facilitating installation in limited panel space.

With an IP20 rating, it offers protection against solid foreign objects and operates efficiently within a temperature range of -20°C to 70°C, making it suitable for harsh industrial conditions. The device exhibits a low off-state leakage current of just 50 μA, minimizing power losses when switched off.

The relay utilizes screw clamp optocouplers and comes equipped with output transistor, triac, MOS transistor, and relay types to ensure compatibility with diverse load requirements. The product offers voltage and current adjustments along with galvanic insulation for safe operation and signal transmission through input/output logic isolation.

Robust overvoltage protection enhances device longevity and operational safety. The R600 series solid state relay is compliant with multiple stringent standards including CEI 60664-1, UL 94 V0, CEI 947-1, CEI 1131-2, CEM:IRC 1000-4-2, and CEI 947-7-1, backing its industrial-grade certification.

Supports a maximum load current of 12 amperes ensuring reliable switching. Operates with load voltages up to 400 V AC suitable for industrial applications. Control voltage ranges from 5 V AC/DC to 250 V AC/DC providing versatile input compatibility.

Features DIN rail mounting for easy installation in electrical panels. Compact design with a width of 6 mm and length of 70 mm. IP20 rated enclosure for protection against solid objects with safe operating temperature range from -20°C to 70°C.

Low off-state leakage current of 50 μA reduces energy waste. Includes overvoltage protection ensuring durability and safety in harsh environments. Output includes relay, transistor, triac, and MOS transistor types for different load controls.

Complies with multiple standards such as CEI 60664-1, UL 94 V0, and CEI 947-1 to ensure quality and safety.

This solid state relay is ideal for industrial automation, process control, HVAC, and manufacturing environments requiring reliable low maintenance switching solutions. Its DIN rail mount design integrates seamlessly into standard electrical enclosures, enhancing installation efficiency.
