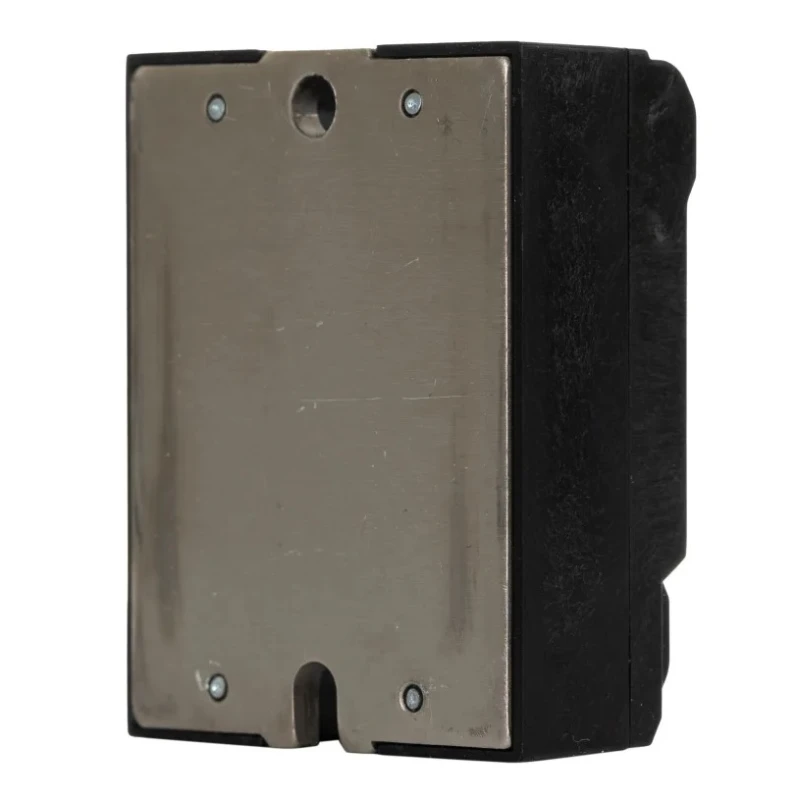

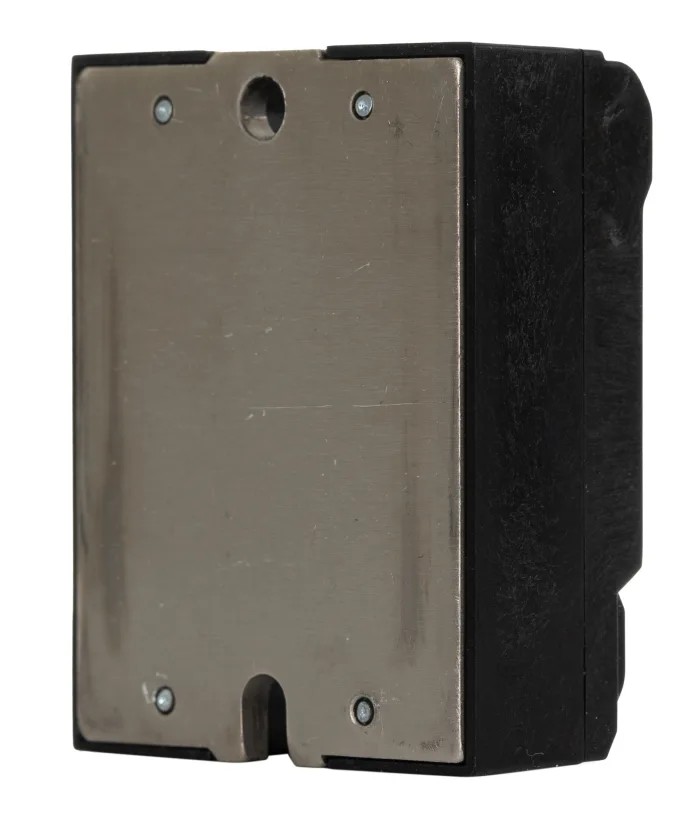

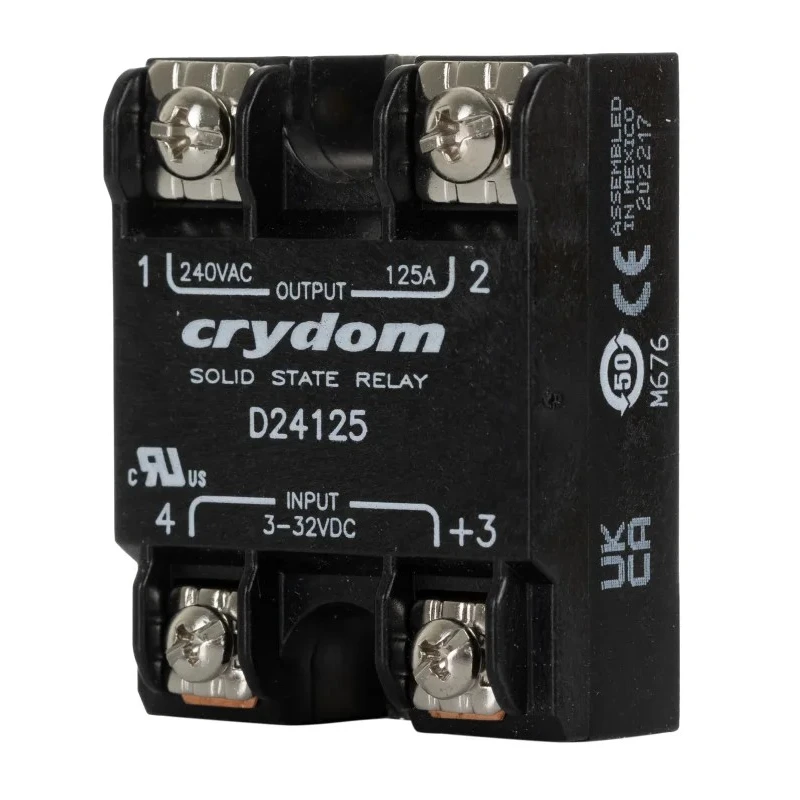

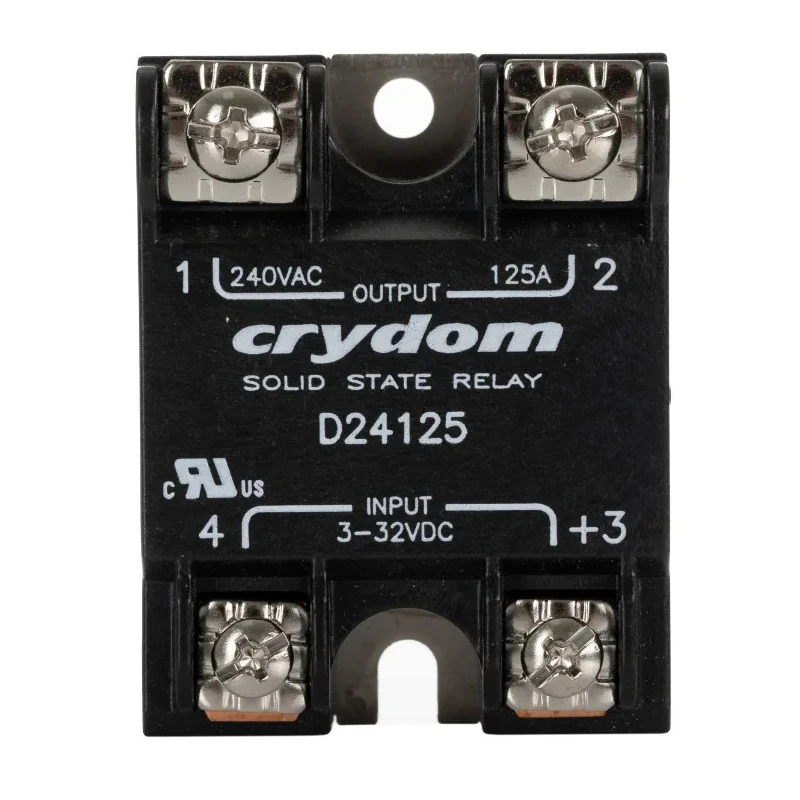

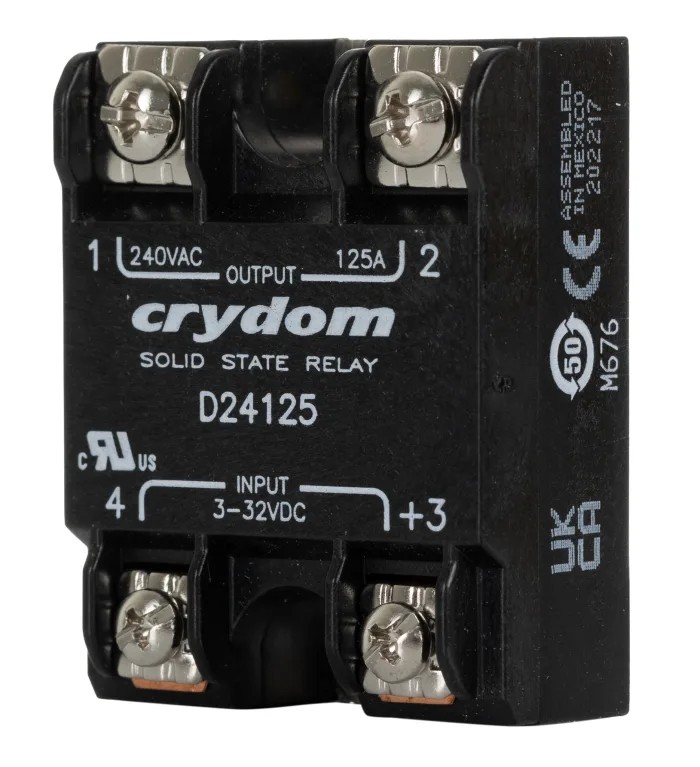

Crydom Solid State Relay Panel Mount 125A, 280Vrms Load, 32V Control D24125

Crydom D24125 Solid State Relay is engineered for high-power panel mount applications and withstands harsh environments thanks to its operating range from -40°C to 80°C.

This relay supports a maximum load current of 125A and load voltage up to 280Vrms, making it suitable for demanding industrial machinery, laboratory equipment controls, HVAC systems, and field automation. Its zero-cross switching technology keeps electrical noise minimal, ideal for sensitive installations.

Equipped with FASTON terminals, the device allows for easy integration into control panels and offers panel-mount installation with anti-rotation barriers that maintain secure fit and alignment under heavy vibrations.

Zero-cross switching ensures low noise operation, preserving signal integrity in complex environments. Versatile control voltage range - accepts DC from 4V to 32V. Heavy-duty SCR output delivers durability for continuous industrial operation.

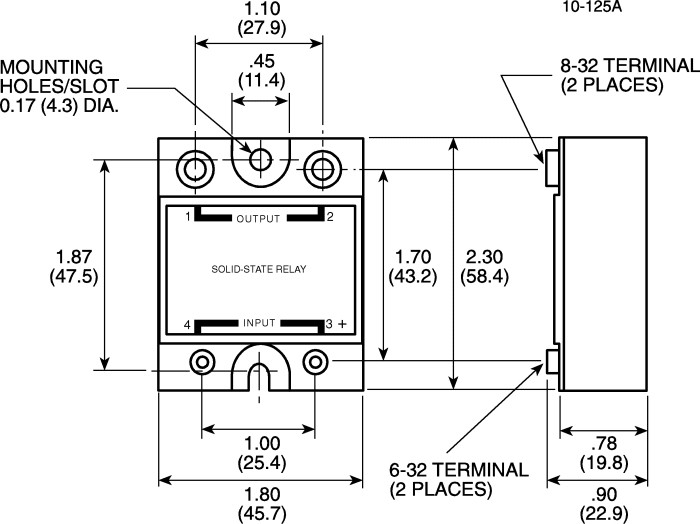

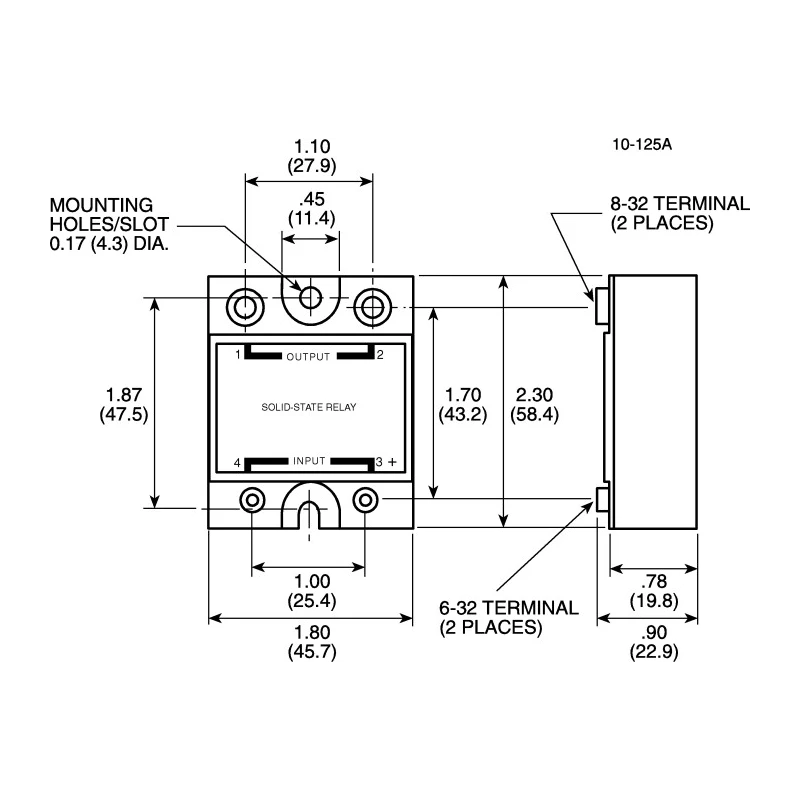

Compact footprint - measures 58.4mm x 22.6mm x 23mm (LxWxH). Rated IP20 for dust and accidental touch protection, suitable for standard panel installations. Compliance with UR, CSA, and RoHS standards for superior safety and reliability.

Off state leakage current limited to 1mArms for operational efficiency. Handles capacitance of 8pF to manage output loads effectively.

This relay is used in industrial automation systems, laboratory environments, HVAC and process controls, commercial equipment, and heavy-duty power switching. Its robust specifications and secure mounting design make it a top choice for professionals in these fields.
