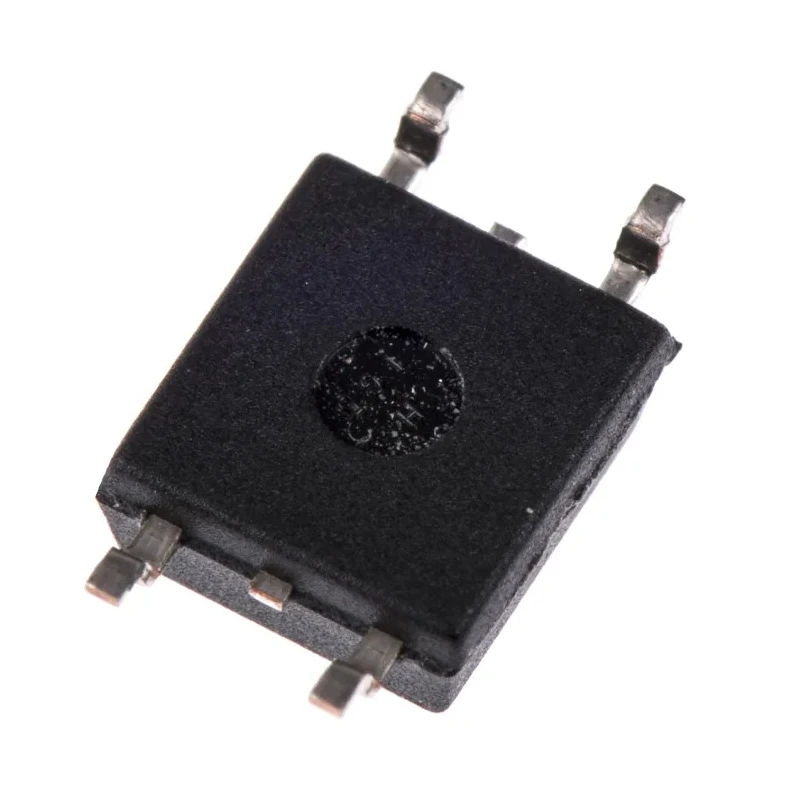

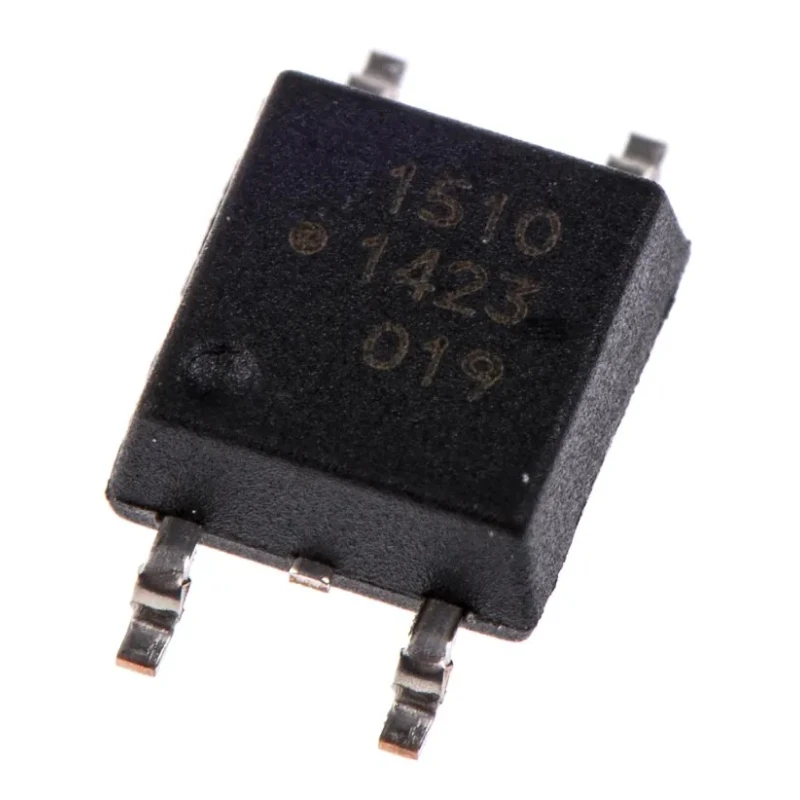

Broadcom ASSR Series Solid State Relay, 1 A Load Current, 60 V Load Voltage, PCB Mount, SOP-4 Package ASSR-1510-003E

Broadcom ASSR-1510-003E Solid State Relay from the ASSR Series is engineered for reliable PCB mounting applications requiring precise switching of AC loads up to 1 ampere and a maximum load voltage of 60 volts. Packaged in the compact SOP-4 form factor, this relay incorporates an infrared LED driving a high-speed photovoltaic diode array to control dual high-voltage MOSFET switches, ensuring fast and efficient AC switching with low on-state resistance.

Operating safely across a broad temperature range from -40°C to 85°C, the ASSR-1510-003E maintains robust performance in diverse industrial, automation, and electronic control scenarios. Its gull wing terminals and SPST contact configuration facilitate straightforward PCB assembly, making it suitable for automated manufacturing processes.

With minimal off-state leakage current and low capacitance, this solid state relay achieves enhanced electrical isolation and signal integrity, critical for sensitive communication and control circuits. Compliance with widely recognized standards including UL, RoHS, and CSA further ensures safety and environmental responsibility.

This product is well-suited for industrial automation systems, electronic instrumentation, HVAC controls, manufacturing equipment, and other applications requiring silent, reliable switching without mechanical wear and electromagnetic noise associated with traditional relays.

This solid state relay features a MOSFET output type with 0.5 ohms on-state resistance. It provides AC switching with a load current capacity of 1 ampere and load voltage up to 60 volts. Compact dimensions enable integration into space-constrained PCB layouts.

Robust operating temperature range allows use in harsh environments. The product meets UL, RoHS, and CSA standards for certified reliability and quality. Optimized for low off-state leakage and capacitance, supporting high signal fidelity.

Gull wing terminal style and SPST contact ensure compatibility with automated assembly and reliable operation. Explore more Solid State Relays and industrial automation components at EnvMart to suit your technical and manufacturing requirements.
