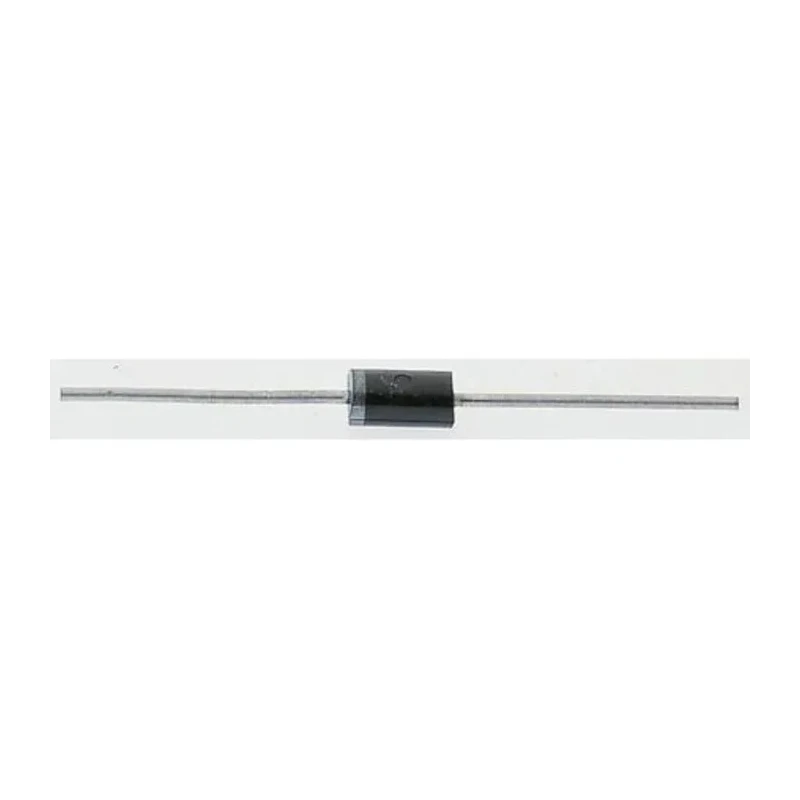

Taiwan Semiconductor 400 V 3 A Through Hole Switching Diode 2-Pin DO-201AD HER305G R0
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.6mm |
| Brand | Taiwan Semiconductor |
| Height | 5.6mm |
| Length | 9.5mm |
| Model | HER305G R0 |
| Width | 5.6mm |
| Mount Type | Through Hole |
| Series | HER305G |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-1959Brand: Taiwan SemiconductorManufacturers Part No.: HER305G R0 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 125A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 50ns |
Key Features
- Through hole mount type ensures easy installation on PCB.
- Peak reverse recovery time of 50 ns for high-speed switching applications.
- Maximum forward voltage of 1.3 V reduces power loss.
- Operates from -65°C to 150°C suitable for harsh environments.
- Single diode configuration with AEC-Q101 automotive standard compliance.
- Peak non-repetitive forward surge current of 125 A withstands transient loads.
Product Description
Taiwan Semiconductor HER305G R0 is a high-performance switching diode designed for applications requiring 3 A maximum continuous forward current and 400 V peak reverse voltage. Packaged in a 2-pin DO-201AD through-hole configuration, it ensures robust mechanical stability and ease of PCB mounting.
This diode provides rapid switching capabilities with a peak reverse recovery time of just 50 nanoseconds, making it suitable for power switching, rectification, and signal demodulation in electronics and electrical equipment. Its maximum forward voltage of 1.3 V helps reduce conduction losses, improving efficiency in power circuits.
Designed to operate over a wide temperature range from -65°C to 150°C, the HER305G R0 diode is well suited for industrial, automotive, and commercial electronic applications. The single diode configuration complies with the AEC-Q101 automotive standard to ensure reliability in demanding environments.
Its compact physical dimensions (length 9.5 mm, diameter 5.6 mm) enable integration into space-constrained designs without compromising performance. The diode can handle peak non-repetitive forward surge currents up to 125 A, providing durability against transient electrical loads.
Through hole mount type ensures easy installation on PCB. Peak reverse recovery time of 50 ns for high-speed switching applications. Maximum forward voltage of 1.3 V reduces power loss. Operates from -65°C to 150°C suitable for harsh environments.
Single diode configuration with AEC-Q101 automotive standard compliance. Compact dimensions: length 9.5 mm, diameter 5.6 mm for space-saving designs. Peak non-repetitive forward surge current of 125 A withstands transient loads.
This switching diode is ideal for use in industrial equipment, automotive electronics, power supplies, and general electronic component assemblies that require reliable and efficient Semiconductor Diodes. Explore more semiconductor products from Taiwan Semiconductor at EnvMart for advanced circuit protection and switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HER305G R0 has a maximum continuous forward current rating of 3 A.
This switching diode can withstand a peak reverse voltage of 400 V.
The peak reverse recovery time for this diode is 50 nanoseconds, making it suitable for high-speed switching applications.
The maximum forward voltage of the HER305G R0 is 1.3 V, which helps reduce power loss.
This diode operates effectively within a temperature range of -65°C to 150°C, suitable for harsh environments.
The HER305G R0 is packaged in a 2-pin DO-201AD configuration, which allows for through-hole mounting.
This diode can handle a peak non-repetitive forward surge current of up to 125 A.
The HER305G R0 features a single diode configuration, compliant with AEC-Q101 automotive standards.
The dimensions of the HER305G R0 are 9.5 mm in length and 5.6 mm in diameter.
This model supports through-hole mounting, ensuring easy installation on PCBs.
The HER305G R0 complies with the AEC-Q101 automotive standard, ensuring reliability in automotive applications.
The peak reverse current for the HER305G R0 is rated at 10 μA.
