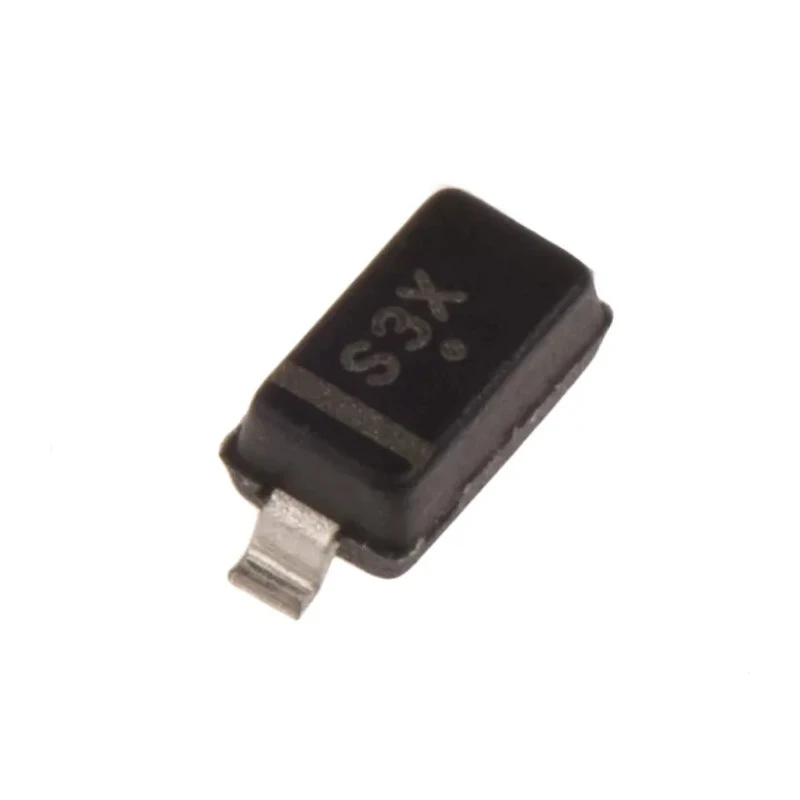

onsemi Schottky Diode 30 V 1 A Surface Mount 2-Pin SOD-123 MBR130T1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Schottky Diode 30 V 1 A Surface Mount 2-Pin SOD-123 MBR130T1G

Name: onsemi Schottky Diode 30 V 1 A Surface Mount 2-Pin SOD-123 MBR130T1G
Brand: onsemi
SKU: 350724
Price: 0.11 USD
Availability: InStock



Category Schottky Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.12mm
Length	2.69mm
Model	MBR130T1G
Width	1.6mm
Mount Type	Surface
Series	MBR130
Maximum Operating Temperature	125°C
Package Type	SOD-123
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	60μA
Peak Non-Repetitive Forward Surge Current Ifsm	5.5A
Maximum Forward Voltage Vf	0.47V

Key Features

The diode features a compact SOD-123 package suitable for automated board assembly.
It operates reliably at temperatures from -65°C to 125°C.
Maximum forward voltage drop is 0.47 V, optimizing efficiency.
The diode is lightweight, weighing approximately 11.7 mg for minimal PCB load.
It conforms to AEC-Q101 automotive standards, ensuring durability in automotive applications.
Designed with epoxy moulded case and stress protection for enhanced robustness.
Pin configuration and package dimensions enable easy integration into compact electronic circuits.
Ideal for use in power rectification, freewheeling, and polarity protection.

Product Description

onsemi MBR130T1G is a Schottky barrier diode designed for efficient low voltage, high-frequency rectification and protection in surface mount applications. Featuring a 2-pin SOD-123 package, it offers a maximum continuous forward current of 1 A and can withstand peak repetitive reverse voltages of up to 30 V. The diode operates safely over a wide temperature range from -65°C to 125°C.

This diode presents a low forward voltage drop of 0.47 V, enhancing power efficiency in electronic circuits. Its compact size - with dimensions of length 2.69 mm, width 1.6 mm, and height 1.12 mm - and lightweight 11.7 mg package make it suited for automated PCB assembly where space and weight constraints are critical.

The device meets the stringent AEC-Q101 standards for automotive applications, ensuring reliability and stress protection under challenging conditions. Its epoxy moulded case protects the junction, making it ideal for use as a freewheeling diode, polarity protection, and in low voltage power rectification scenarios.

Its 2-pin surface mount configuration supports easy integration into electronic designs focused on power management. Engineered for industrial, automotive, consumer electronics, and manufacturing applications, this diode supports efficient and durable performance.

The diode features a compact, lightweight SOD-123 package for automated assembly. Operational temperature range from -65°C to 125°C ensures versatility. Low forward voltage drop of 0.47 V reduces power losses. Meets AEC-Q101 automotive qualification standards.

Epoxy moulded case provides robust stress protection. Supports applications including power rectification, freewheeling, and polarity protection. Compact dimensions facilitate space-saving PCB design. Lightweight construction minimizes overall device load.
