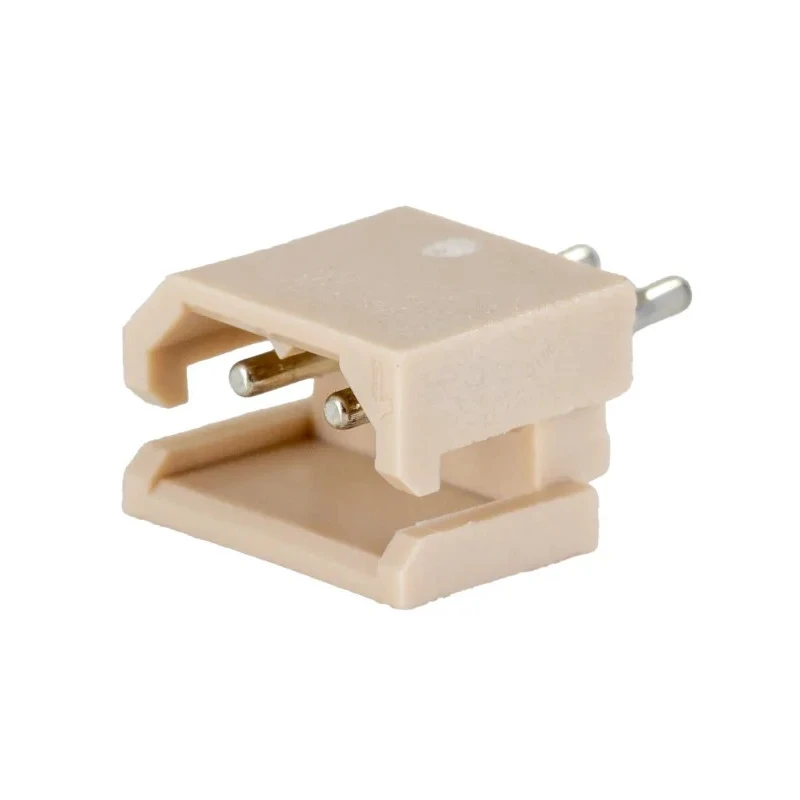

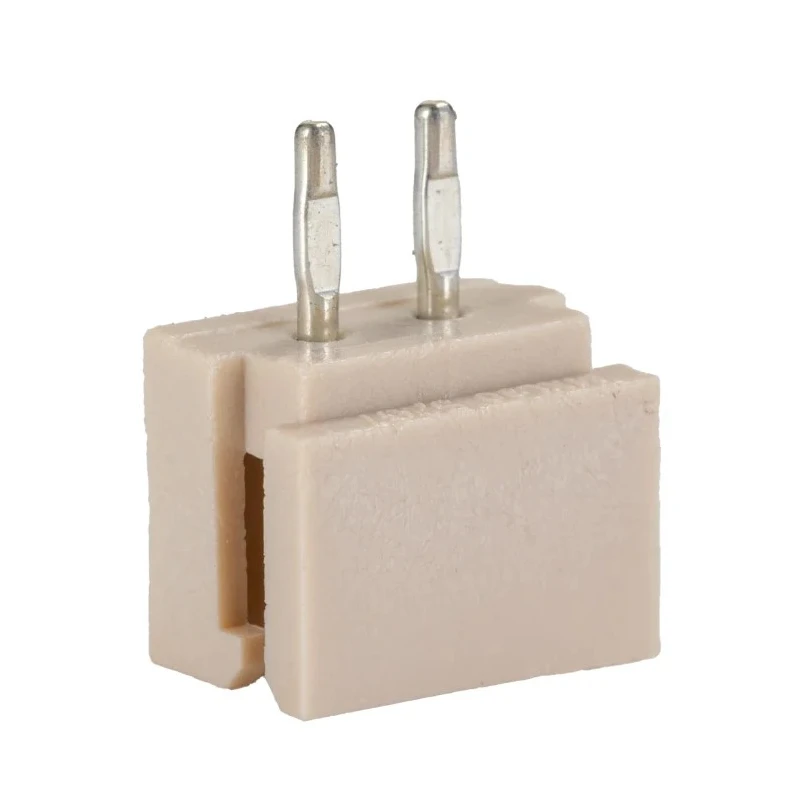

Molex SPOX Series Vertical Through Hole PCB Header 2 Contacts 2.5mm Pitch 1 Row Shrouded 3A Current Rating 250V 99-99-0986

Molex 99-99-0986 SPOX Series Vertical Through Hole PCB Header features a 1-row, 2-contact design with 2.5mm pitch, suitable for high-reliability wire-to-board connections in automation and electronics industries. The component’s shrouded configuration provides enhanced protection and alignment during installation, safeguarding contacts and improving connection stability.

Constructed with nylon housing and brass contacts plated with tin, this header ensures excellent electrical performance and mechanical durability. It supports through hole mounting, delivering robust soldered joints for long-lasting PCB integration.

The header is rated for a current of 3A and a voltage of 250V, operating reliably across a temperature range from -40°C to 105°C. It is designed to withstand up to 30 mating cycles, making it suitable for applications that require frequent connector insertions and removals.

Installation requires alignment of pins with PCB holes and soldering to ensure a secure fit. The recommended PCB thickness is 1.60mm, ensuring proper mechanical and electrical contact. Its vertical orientation is ideal for board layouts demanding vertical wire-to-board connections.

Through hole termination ensures secure PCB mounting. Shrouded, vertical design enhances safety and connection integrity. Nylon housing and brass tin-plated contacts provide durability and conductivity. Rated for 30 mating cycles for extended mechanical life.

Supports signal transmission applications in electronics and automation equipment. Operates within temperature range of -40°C to 105°C. Current rating of 3A and voltage rating of 250V suitable for standard PCB applications.

Recommended PCB thickness of 1.60mm for compatibility.

This Molex PCB Header is widely used in industrial automation, electronic device assemblies, and other manufacturing applications that require reliable, efficient wire-to-board interconnections. Explore our broader selection of Molex connectors and PCB components to find compatible accessories and connectors for your projects.
