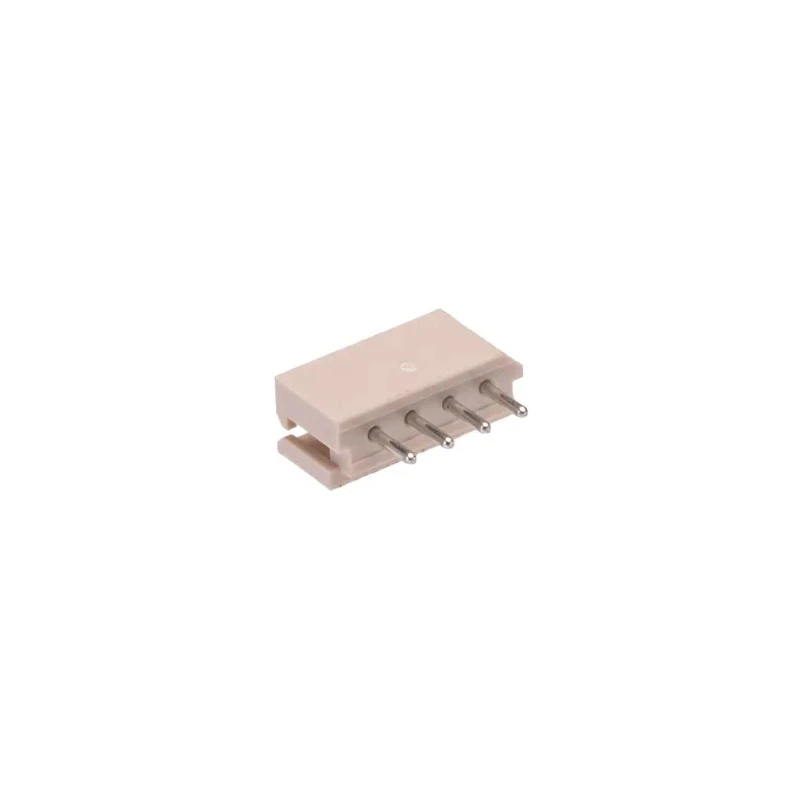

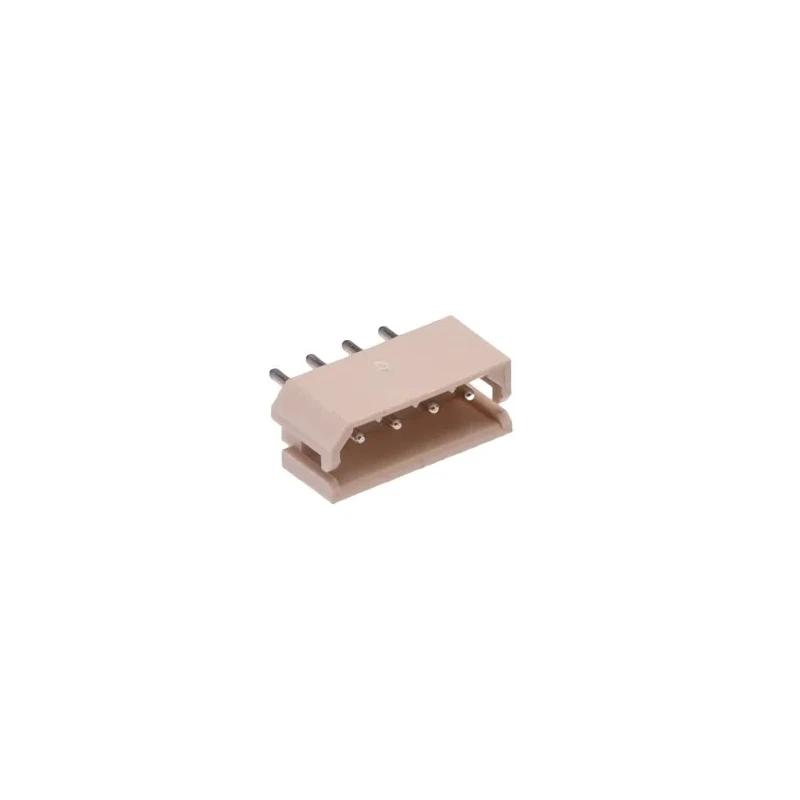

Molex SPOX Series Vertical Through Hole PCB Header, 4 Contacts, 2.5 mm Pitch, 3A Current, Shrouded, 1 Row 22-03-5045

Molex 22-03-5045 SPOX Series PCB Header is a shrouded, vertical through hole connector designed to provide reliable wire-to-board connections. It features 4 male contacts spaced with a 2.5 mm pitch and arranged in a single row. The nylon housing ensures durability and electrical insulation for industrial and commercial electronics applications.

Its brass contacts are tin-plated to resist corrosion and maintain consistent conductivity. This PCB header supports a maximum current rating of 3A and a voltage rating of 250V, suitable for a wide range of electronic equipment.

The connector is manufactured to operate reliably within a temperature range from -40°C to 105°C, making it fit for demanding environments. The tail pins measuring 3.5 mm facilitate secure soldering on PCBs with a recommended thickness of 1.60 mm.

The shrouded design enhances protection and prevents accidental contact during mating and demating cycles, which are rated up to 30. Its vertical orientation optimizes board space in compact assemblies, such as LED lighting systems and consumer electronics.

Vertical orientation optimises space in compact assemblies. Durable construction rated for up to 30 mating cycles. Compatible with standard PCB thickness of 1.60 mm. 3A current and 250V voltage ratings provide robust electrical performance.

Shrouded design ensures secure and protected connections. Tin-plated brass contacts for reliable conductivity. Operates in temperatures ranging from -40°C to 105°C. Single row, 4 contact configuration with 2.5 mm pitch. This connector is ideal for industrial, consumer electronics, LED lighting, and automation sectors requiring compact, reliable PCB connectors.
