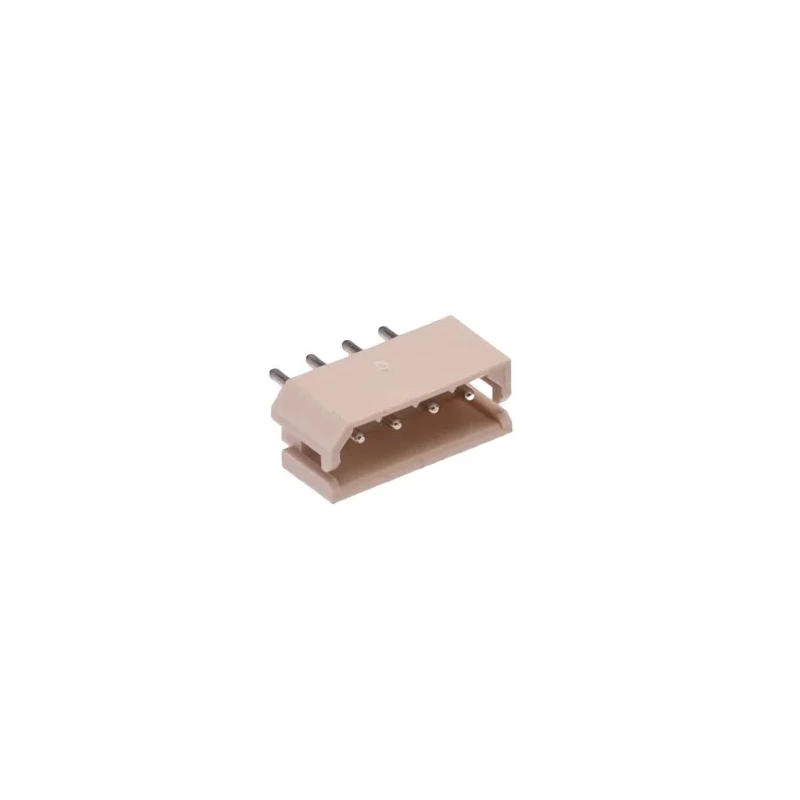

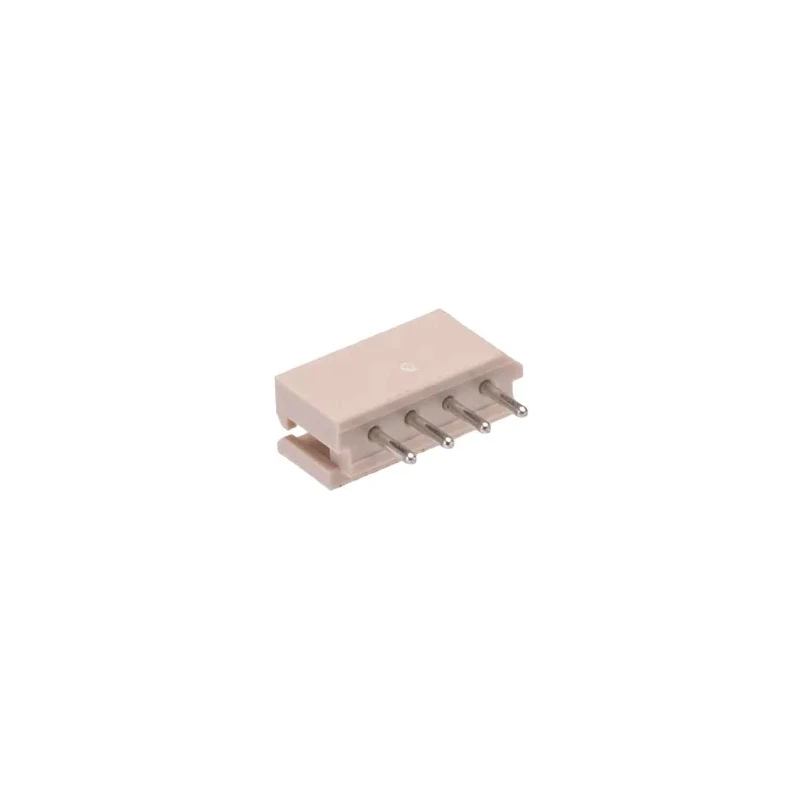

Molex SPOX Series Vertical Through Hole PCB Header, 4 Contact(s), 3A Current Rating, 2.5 mm Pitch, 1 Row, Shrouded 22-03-5045

Name: Molex SPOX Series Vertical Through Hole PCB Header, 4 Contact(s), 3A Current Rating, 2.5 mm Pitch, 1 Row, Shrouded 22-03-5045
Brand: Molex
SKU: 350588
Price: 0.28 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Korea
Voltage	250V
Brand	Molex
Orientation	Vertical
Current	3A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	SPOX
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.5mm

Key Features

This PCB header features a vertical orientation for efficient space usage in compact electronic assemblies.
It is constructed with Nylon housing and brass contacts plated with tin for enhanced durability.
The shrouded design ensures secure and protected connections in demanding applications.
The connector supports a maximum operating temperature of 105°C and a minimum of -40°C.
Rated for a voltage of 250V and up to 30 mating cycles, it ensures reliable performance over repeated use.
The connector uses through-hole mount type suitable for standard 1.6 mm thick PCBs.
Tail pin length is 3.5 mm, providing solid solder termination.
Ideal for use in electronics, automation, signal transmission, and LED lighting applications.

Product Description

Molex 22-03-5045 Vertical Through Hole PCB Header is a high-quality connector optimized for wire-to-board applications requiring reliable electrical connections. Rated at 3A current with a 2.5 mm pitch and featuring 4 male contacts in a single row, this PCB header provides efficient and secure mounting for a variety of electronics and automation uses.

Designed with a vertical orientation, it maximizes usable PCB space while ensuring secure mating. The shrouded Nylon housing protects the contacts and connection from mechanical damage and misalignment. The contacts are made of brass and plated with tin for corrosion resistance and excellent conductivity.

This connector has a maximum operating temperature of 105°C and can endure temperatures as low as -40°C, making it versatile across different environments. It supports a maximum voltage of 250V and is rated for up to 30 mating cycles, ensuring durability for repeated assembly and disassembly.

Mounting is via through-hole technology, compatible with standard PCB thicknesses of 1.6 mm. Tail pins measuring 3.5 mm facilitate robust solder connections.

Applications include electronic device assembly, LED lighting systems, signal transmission, and general electronics requiring a compact and reliable wire-to-board connection solution.

Vertical orientation optimizes space in compact assemblies. Durable Nylon housing with brass tin-plated contacts. Shrouded design for enhanced protection and secure connections. Rated for 3A current at 250V with 30 mating cycles.

Through-hole mount compatible with 1.6 mm PCB thickness. Operating temperature range from -40°C to 105°C. Tail pin length of 3.5 mm ensures solid solder termination. Browse more PCB Headers and connectors at EnvMart, the trusted source for quality electronic components and industrial-grade solutions.
