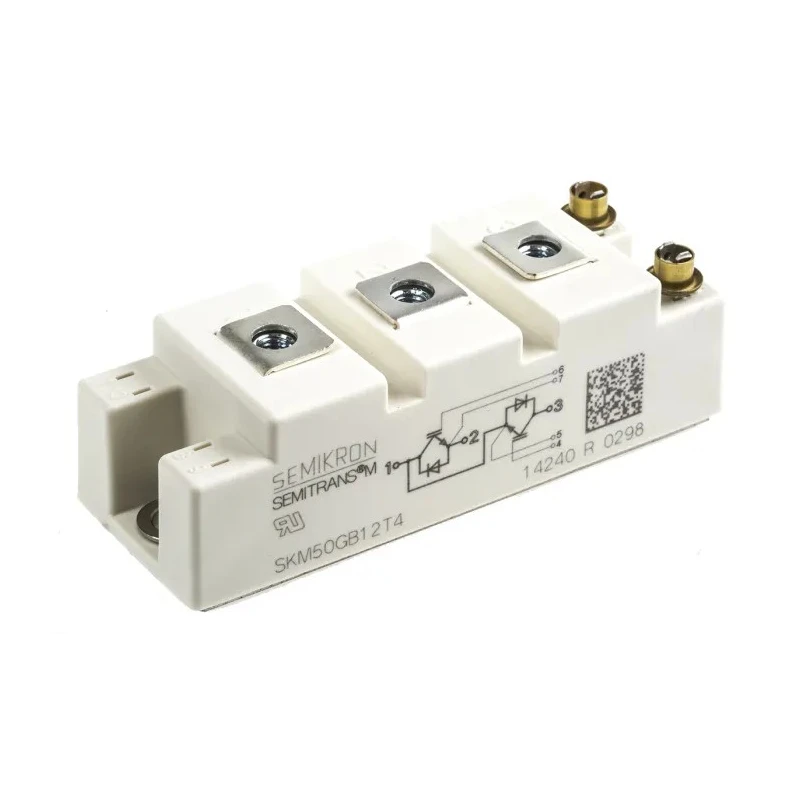

Semikron Danfoss N-Channel IGBT Module 81 A 1200 V, 7-Pin SEMITRANS Panel Mount SKM50GB12T4

Semikron Danfoss SKM50GB12T4 is a high-performance N-Channel IGBT module suited for power switching in industrial environments. It supports a maximum continuous collector current of 81 A and a collector-emitter voltage rating of 1200 V, making it ideal for AC inverter motor drives, uninterruptible power supplies, and other demanding power management applications.

The module features two series-connected IGBT transistors configured in a half-bridge arrangement within a compact SEMITOP package designed for panel mounting. Its 7-pin layout and insulated copper baseplate with Direct Bonded Copper technology ensure efficient thermal management and electrical isolation.

With a switching speed up to 20 kHz, this module enables fast and reliable operation, supporting better system performance in HVAC, manufacturing automation, and power supply systems. The device maintains operation within temperature ranges from -40°C to +175°C, ensuring durability in harsh industrial conditions.

The maximum gate-emitter voltage of 20 V provides stable control of gate signals, while the collector-emitter saturation voltage of 2.1 V helps minimize power losses. Compact SEMITOP package suitable for panel mounting. Dual IGBT transistors in half-bridge configuration.

Maximum continuous collector current of 81 A. Voltage rating of 1200 V collector-emitter voltage. Switching frequency capability of up to 20 kHz. Operating temperature range from -40°C to 175°C. Insulated copper baseplate with Direct Bonded Copper technology.

Pin count of 7 for easy integration.

This IGBT Module is widely used in industrial power electronics applications such as motor drives, power inverters, and UPS systems. It provides reliable switching performance and thermal management essential for high power density designs. Explore more power semiconductor components and modules to build efficient electronic systems with confidence at EnvMart.
