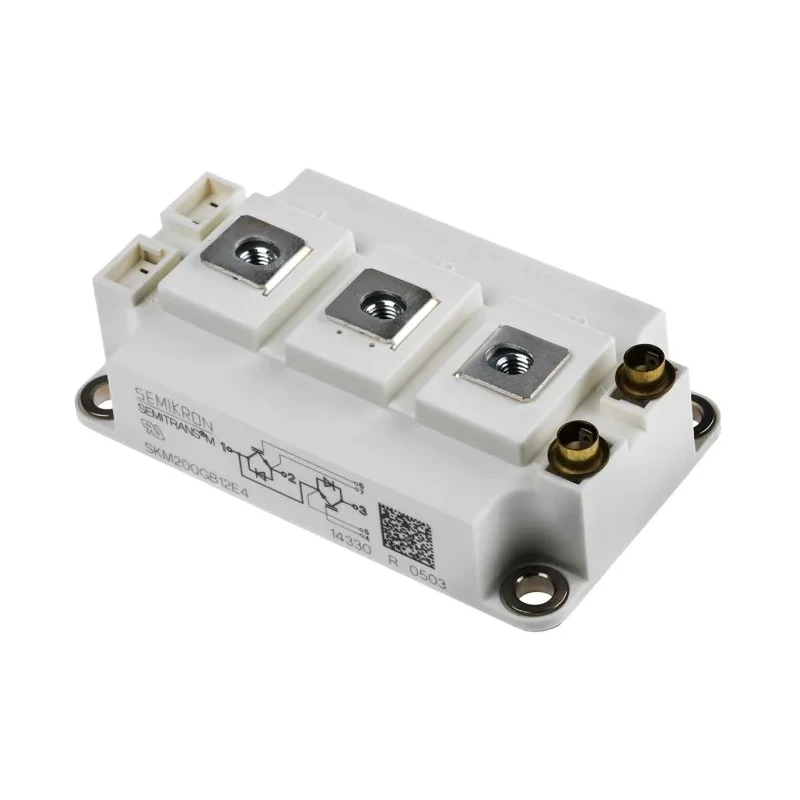

Semikron Danfoss N-Channel IGBT Module 313 A 1200 V 7-Pin SEMITRANS Panel SKM200GB12E4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semikron Danfoss |
| Height | 30mm |
| Length | 106.4mm |
| Model | SKM200GB12E4 |
| Width | 61.4mm |
| Mount Type | Panel |
| Series | SKM200GB12E4 |
| Maximum Operating Temperature | 175°C |
| Package Type | SEMITRANS |
| Minimum Operating Temperature | -40°C |
| Pin Count | 7 |
| Maximum Continuous Collector Current Ic | 313A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.05V |
| Channel Type | N |
| Maximum Gate Emitter Voltage VGEO | 20 V |
| Number of Transistors | 2 |
Key Features
- The module features a maximum continuous collector current of 313 A.
- It supports a maximum collector emitter voltage of 1200 V.
- Equipped with 2 transistors in a SEMITRANS package.
- Utilizes a 7-pin panel mount configuration.
- Suitable for switching frequencies up to 12 kHz.
- Operates reliably between -40°C to 175°C operating temperature range.
- Maximum gate emitter voltage rating of 20 V ensures safe operation.
- Maximum collector emitter saturation voltage of 2.05 V facilitates low losses.
Product Description
Semikron Danfoss SKM200GB12E4 is a high-performance N-Channel IGBT Module engineered for industrial power electronics applications requiring efficient switching and robust reliability. With a maximum continuous collector current of 313 A and a maximum collector emitter voltage rating of 1200 V, this module is suitable for demanding power semiconductor tasks.
The device employs two series-connected IGBT transistors housed in a compact SEMITRANS package, facilitating easy panel mounting with a 7-pin interface. It supports switching frequencies up to 12 kHz, making it ideal for AC inverter motor drives, uninterruptible power supplies, and other power switching applications in industrial, manufacturing, and HVAC sectors.
The module exhibits a wide operating temperature range from -40°C minimum to 175°C maximum, ensuring performance under harsh environmental conditions. Its insulated copper baseplate employs Direct Bonded Copper technology for enhanced thermal management, contributing to improved reliability and efficiency.
Physical dimensions are length 106.4 mm, width 61.4 mm, and height 30 mm, allowing compact integration in control panels.
The maximum gate emitter voltage of 20 V and maximum collector emitter saturation voltage of 2.05 V help minimize power losses and facilitate stable operation. The series SKM200GB12E4 provides robust switching characteristics with a 12 kHz switching speed capability.
The module features a maximum continuous collector current of 313 A. Utilizes a 7-pin panel mount SEMITRANS package. Operating temperature range from -40°C to 175°C. Compact dimensions suitable for panel mounting. Designed for industrial electronics, power management, and motor control applications.
This product is new and originates from India. It is a reliable choice in the IGBT Module category for advanced power switching needs. Explore more Semikron Danfoss components and power semiconductor modules on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current of this IGBT module is 313 A.
It supports a maximum collector emitter voltage of 1200 V.
This model operates reliably between -40°C and 175°C.
It supports switching frequencies up to 12 kHz, making it suitable for various power switching applications.
The dimensions are 106.4 mm in length, 61.4 mm in width, and 30 mm in height.
The module contains two series-connected IGBT transistors.
It uses a SEMITRANS package type for easy panel mounting.
The maximum gate emitter voltage rating is 20 V.
The maximum collector emitter saturation voltage is 2.05 V.
This model utilizes a panel mount configuration with a 7-pin interface.
This product originates from India.
It is suitable for industrial power electronics applications such as AC inverter motor drives and uninterruptible power supplies.
