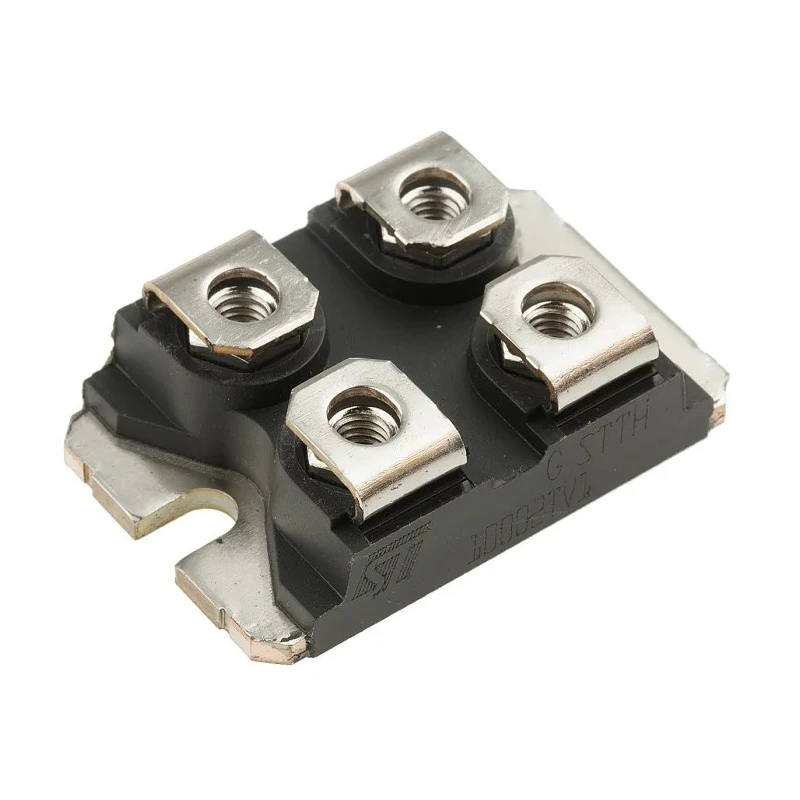

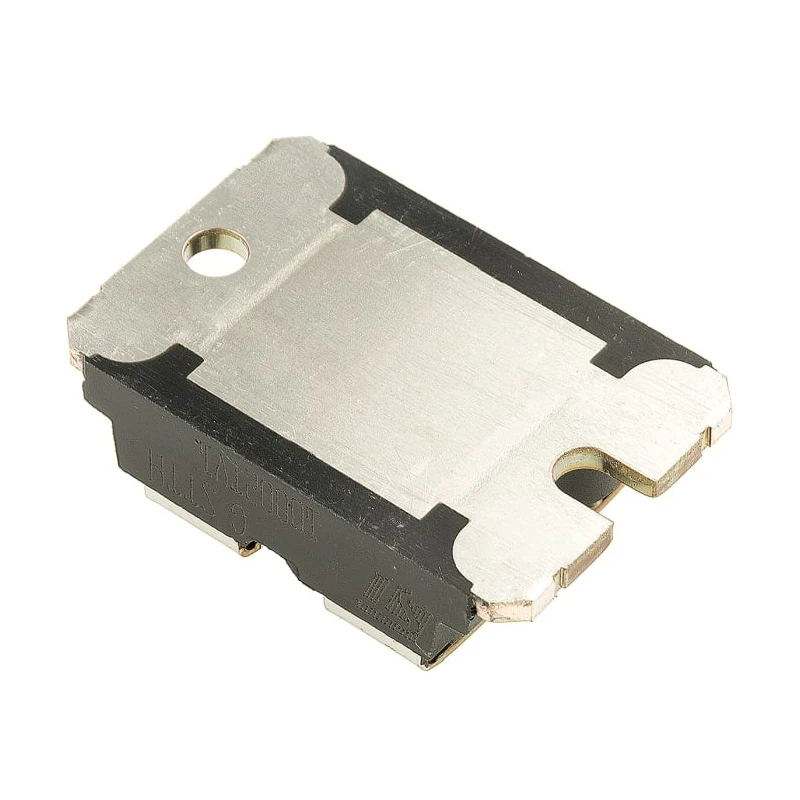

STMicroelectronics 200 V 50 A Diode Switching 4-Pin ISOTOP STTH10002TV1
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4mm |
| Brand | STMicroelectronics |
| Height | 9.1mm |
| Length | 38.2mm |
| Model | STTH10002TV1 |
| Width | 25.5mm |
| Mount Type | Panel |
| Series | STTH10002 |
| Maximum Operating Temperature | 150°C |
| Package Type | ISOTOP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 50A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 750A |
| Maximum Forward Voltage Vf | 1.15V |
| Peak Reverse Recovery Time trr | 65ns |
Key Features
- This diode supports a maximum continuous forward current of 50 amperes.
- It features a peak reverse repetitive voltage rating of 200 volts.
- The package type is ISOTOP with a 4-pin configuration, enabling easy panel mount installation.
- Peak non-repetitive forward surge current capability reaches 750 amperes.
- Operating temperature range spans from -55°C to 150°C, ensuring robust performance in varied environments.
- The diode has a maximum forward voltage of 1.15 volts, optimizing power efficiency.
- Peak reverse current is 50 microamperes, supporting low leakage in operation.
- Peak reverse recovery time is 65 nanoseconds, suitable for high-speed switching tasks.
Product Description
STMicroelectronics STTH10002TV1 is a robust switching diode packaged in a 4-pin ISOTOP format, rated for 200 V peak reverse voltage and 50 A maximum continuous forward current. It is engineered for demanding industrial and electronic applications requiring high efficiency and reliability in rectifier circuits.
This diode delivers a peak non-repetitive forward surge current of 750 A and operates effectively between -55°C and 150°C, proving reliable in harsh temperature conditions. Its peak forward voltage of 1.15 V contributes to efficient power handling with minimal energy loss, and the low peak reverse current of 50 µA enhances circuit stability by reducing leakage currents.
Designed with a peak reverse recovery time of just 65 ns, it supports high-frequency switching applications. The physical measurements - length 38.2 mm, width 25.5 mm, height 9.1 mm, and pin diameter 4 mm - make it suitable for tight panel mount installations using the ISOTOP package style.
This product complies with RoHS standards, ensuring it meets current environmental and safety regulations. It is ideal for use in industrial automation, power supply circuits, power rectification in manufacturing equipment, and other applications requiring durable and efficient diode switching components.
Maximum continuous forward current: 50 A. Peak reverse repetitive voltage: 200 V. 4-pin ISOTOP package for panel mounting. Peak non-repetitive forward surge current: 750 A. Operating temperature range: -55°C to 150°C. Maximum forward voltage: 1.15 V.
Peak reverse current: 50 µA. Peak reverse recovery time: 65 ns. Complies with RoHS environmental standards. Physical size suitable for efficient PCB layouts. Explore more quality semiconductor components and diodes in the STMicroelectronics range at EnvMart for professional industrial and electronic solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 50 amperes.
The peak reverse repetitive voltage rating is 200 volts.
This model is packaged in a 4-pin ISOTOP configuration, designed for easy panel mount installation.
It has a peak non-repetitive forward surge current capability of 750 amperes.
The operating temperature range spans from -55°C to 150°C.
The maximum forward voltage is 1.15 volts, which optimizes power efficiency.
The peak reverse current is 50 microamperes, supporting low leakage in operation.
The peak reverse recovery time is 65 nanoseconds, suitable for high-speed switching tasks.
The physical dimensions are 38.2 mm in length, 25.5 mm in width, and 9.1 mm in height, with a pin diameter of 4 mm.
Yes, it complies with RoHS standards, ensuring it meets current environmental and safety regulations.
This diode is ideal for industrial automation, power supply circuits, and power rectification in manufacturing equipment.
The STTH10002TV1 is a switching diode designed for high efficiency and reliability in rectifier circuits.
