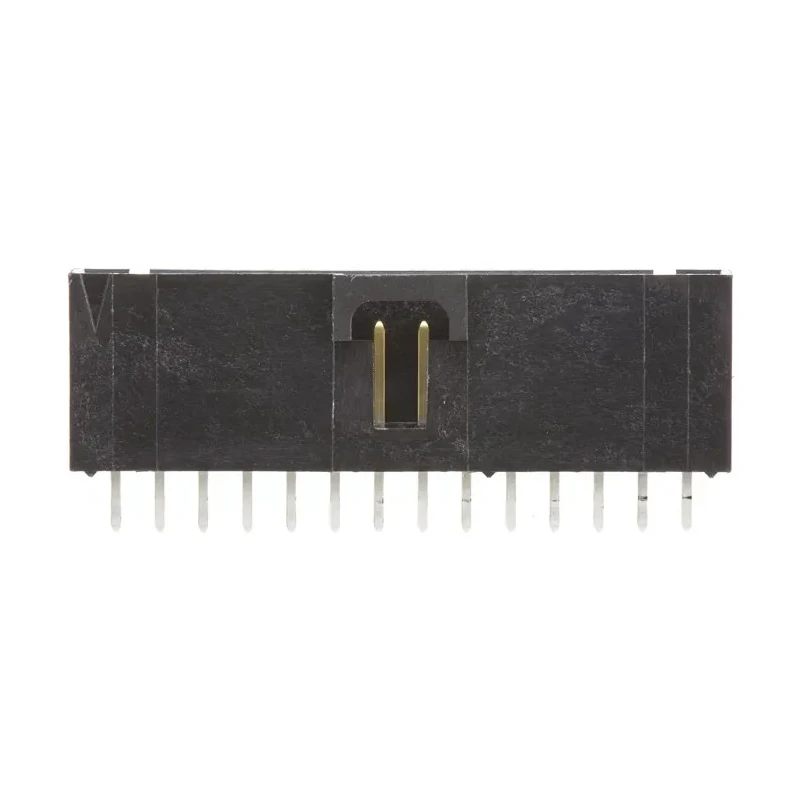

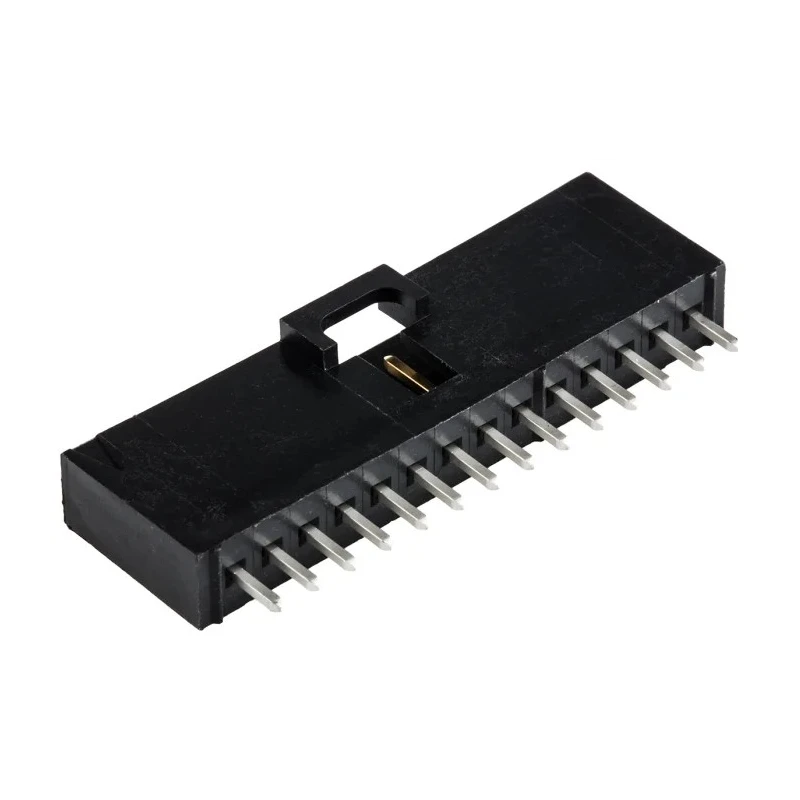

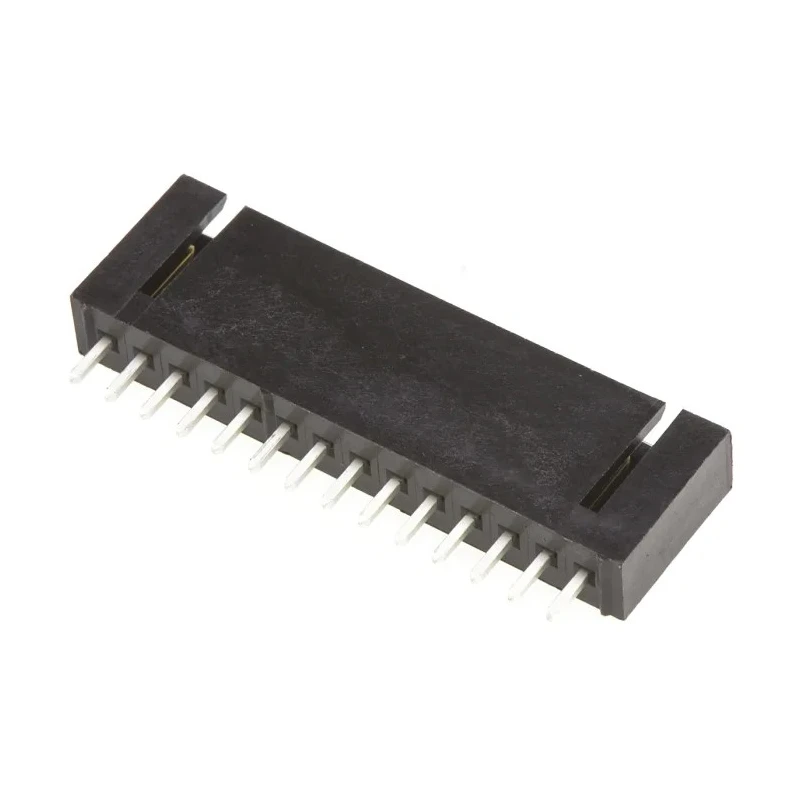

Molex SL Series Straight Through Hole PCB Header, 14 Contact(s), 2.54 mm Pitch, 1 Row, Shrouded 70543-0013

Molex 70543-0013 SL Series Straight Through Hole PCB Header is a high-quality wire-to-board connector designed for reliable PCB interconnections. It features 14 contacts in a single row with a precise 2.54 mm pitch, facilitating compact and efficient circuit designs in electronic components manufacturing and assembly.

The header's housing is manufactured from robust glass filled polyester, providing durability and high thermal stability to withstand temperatures ranging from -40°C to 105°C, making it suitable for demanding industrial environments. The male contacts are constructed from phosphor bronze with gold plating that ensures excellent electrical conductivity and resistance against corrosion for long-term performance.

This component is intended for through hole mounting with solder termination, providing a secure mechanical and electrical connection on PCBs. The shrouded design adds an extra layer of safety by protecting contacts from accidental damage and reducing the risk of misalignment during mating.

The PCB header supports a voltage rating of 250V and a current rating of 3A, which is adequate for a wide range of power and signal transmission applications. The tail pin length of 3.3 mm and a mating pin length of 6.1 mm guarantee compatibility with mating connectors such as the 70600G and 70600N series, commonly used in electronics assemblies.

This PCB header is used extensively in electronic manufacturing, power connectors, and signal transmission applications across industrial, laboratory, and commercial electronics sectors. It is suitable for integration into dense electronic assemblies requiring reliable and consistent PCB connections.

The product is designed for industrial-grade electronic component assembly. Offers high mechanical strength with glass filled polyester housing. Gold-plated phosphor bronze contacts ensure enhanced conductivity and corrosion resistance.

Meets operating temperature requirements from -40°C to 105°C. Supports 3A current and 250V voltage ratings for reliable operation. Shrouded design enhances safety and durability. Compatible with mating connectors 70600G and 70600N series for versatile application.

Provides a precise 2.54 mm pitch spacing and 14 contact points in one row. Through hole mount with solder termination for secure PCB assembly. Explore the full range of Molex PCB Headers and connectors on EnvMart for industrial and commercial electronics needs.
