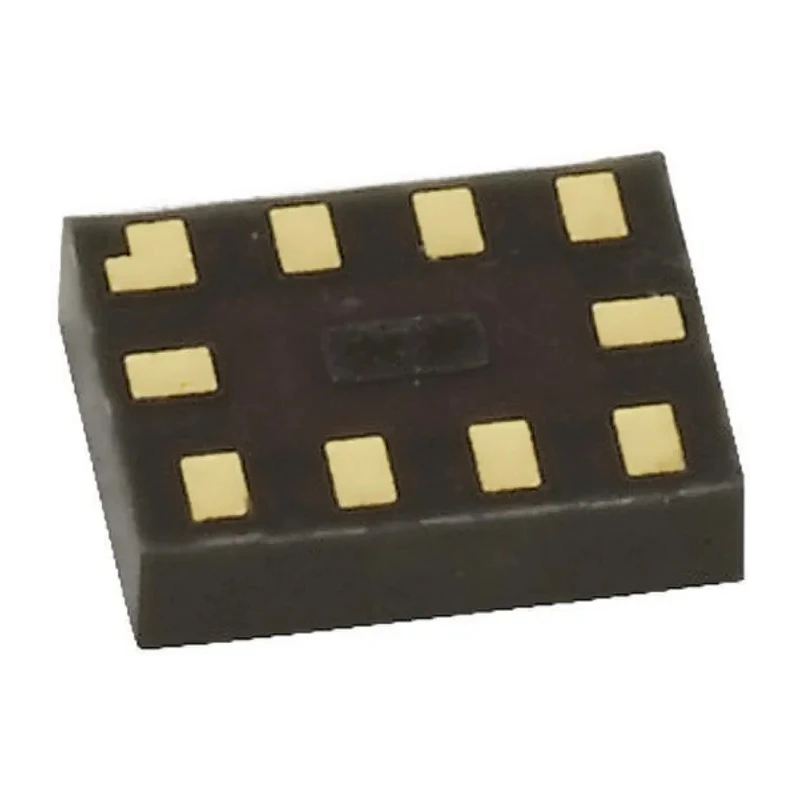

onsemi Voltage Level Translator Bus Transceiver 1 Voltage Bi-Directional 10-Pin MicroPak FXL2TD245L10X

onsemi FXL2TD245L10X is a Voltage Level Translator Bus Transceiver designed to facilitate bi-directional voltage translation in electronic devices. Utilizing the FXL logic family technology, this semiconductor component effectively manages signal voltage levels between different parts of a circuit. Its compact 10-Pin MicroPak surface mount package offers an efficient footprint for PCB designs, making it ideal for modern electronics manufacturing.

The device ensures robust performance with a maximum propagation delay time of 22 nanoseconds under load condition CL, providing quick and reliable signal transitions. It operates comfortably within a supply voltage range of 1.1V to 3.6V, supporting a maximum low-level output current of 24mA and a symmetrical maximum high-level output current of -24mA. This balanced current drive capability helps maintain signal integrity in bus transceiver operations.

Durability is ensured through an extended operating temperature range from -40°C to 85°C, making it suitable for a wide range of commercial and industrial electronic applications. The small package dimension (2.1mm in length and 500μm in height) makes it fit for compact devices where board space is at a premium.

The FXL2TD245L10X is engineered without automotive approval standards, so it is primarily intended for consumer and industrial electronics rather than automotive systems. It serves as a crucial component in logic level translation circuits, enabling efficient communication between devices operating at different voltage levels.

This transceiver uses the FXL logic family, providing dependable voltage translation. Its bi-directional functionality allows communication between varying voltage domains. The MicroPak 10-pin surface mount package offers a small form factor.

The device supports operations at low supply voltages starting from 1.1V up to 3.6V maximum. Propagation delay time of 22ns assures efficient performance in signal timing. Current drive capacity is specified at ±24mA for robust bus signals.

Operating temperature from -40°C to +85°C suits a wide environmental range. Ideal for industrial, laboratory, manufacturing, and communication electronic circuits. Compact size and surface mount design provide ease of assembly and space efficiency.
