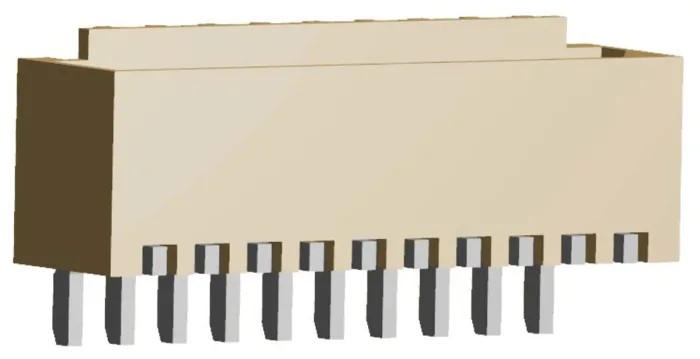

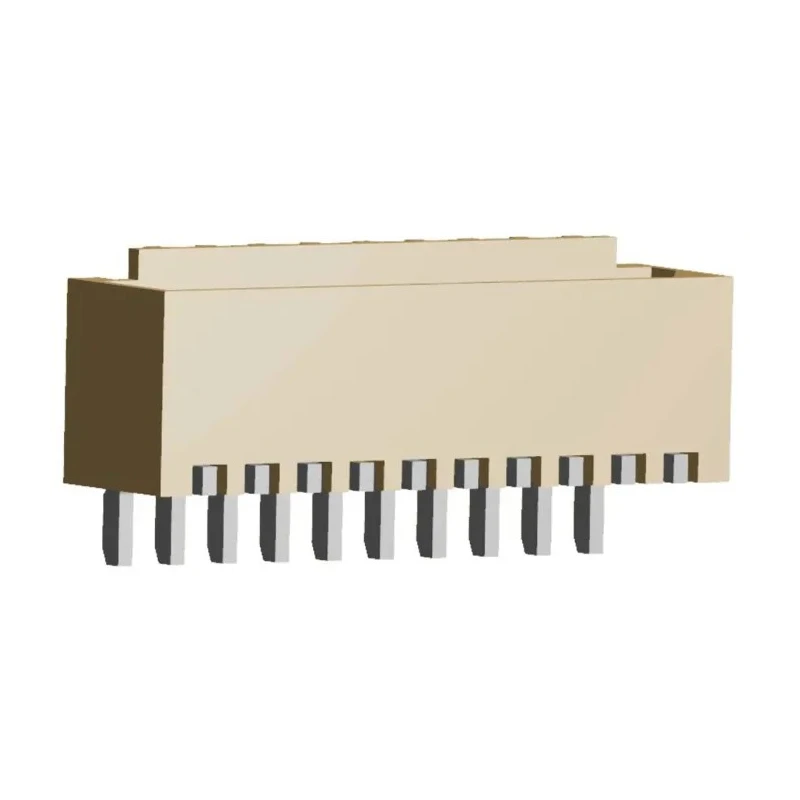

Molex Pico-SPOX Series Right Angle Surface PCB Header, 10 Contacts, 1.5 mm Pitch, 1 Row, Shrouded 87438-1043

Molex 87438-1043 Pico-SPOX Series Right Angle Surface PCB Header is a high-quality, shrouded PCB header connector designed for wire-to-board applications requiring a compact 1.5 mm pitch and 10 contacts arranged in a single row. Featuring a right angle orientation, this connector facilitates easy PCB assembly with surface mount technology.

The connector is constructed with brass contacts plated with tin to ensure low contact resistance and long-term reliability. Its thermoplastic housing provides robust electrical insulation and mechanical stability. Rated for a maximum current of 3A, it supports AWG #24 wires, making it ideal for higher current applications within compact electronic devices.

This product supports operating temperatures from -55°C to 105°C, ensuring stable performance in a wide range of industrial, commercial, and communication electronics environments. The 350V voltage rating offers safe and efficient operation in varied circuitry.

The Molex Pico-SPOX Series is noted for its efficiency in space-constrained applications, often utilized in industrial control systems, automotive electronics, instrumentation, and embedded systems manufacturing processes.

Designed for higher current wire-to-board configurations in compact packaging. Rated for a maximum current of 3A using AWG #24 wires. 1.5 mm pitch with a single row of contacts ensuring compact layout. Right angle orientation with shrouded housing for secure connections.

Constructed with brass contacts plated with tin for durability. Thermoplastic housing material provides electrical insulation and mechanical strength. Surface mount termination type suitable for PCB assembly. Operates reliably between -55°C and 105°C temperature range.

Contact gender is male and connector system is wire-to-board. Voltage rating of 350V ensures safe operation in typical electronic applications. This PCB Header is compatible with Molex 87439 Series housings and is typically supplied on a reel, facilitating efficient automated insertion in production lines.
