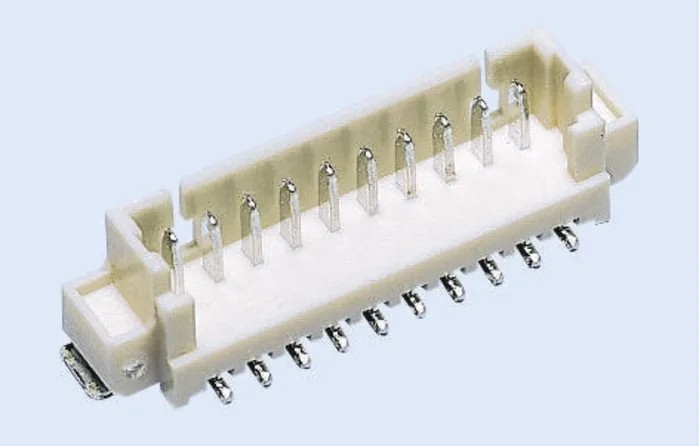

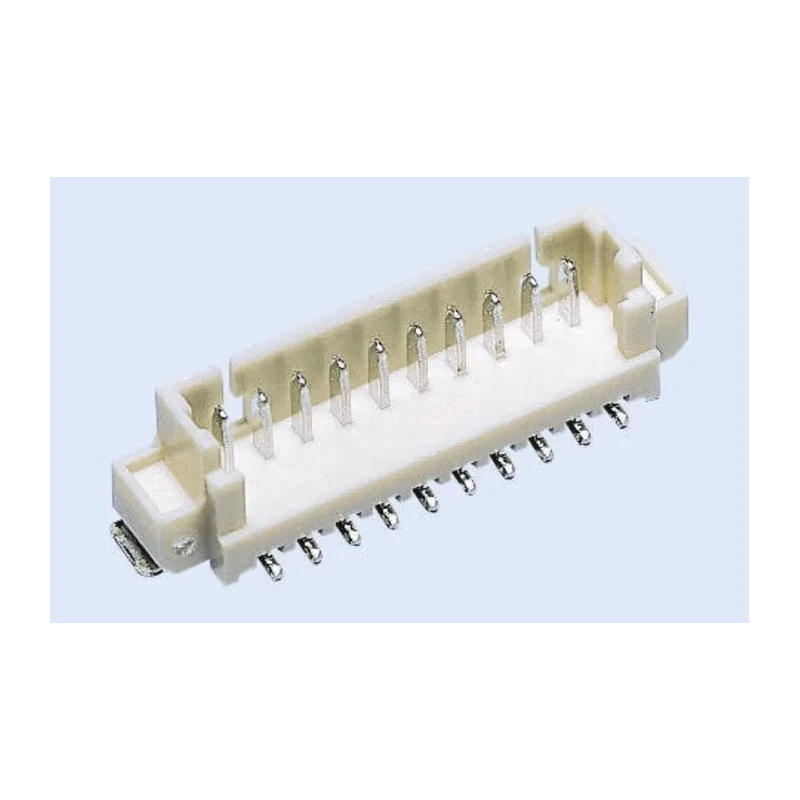

Molex PicoBlade Series Straight Surface PCB Header 13 Contacts 1.25 mm Pitch 1 Row Shrouded 53398-1371

Molex 53398-1371 PicoBlade Series Straight Surface PCB Header is a precision engineered wire-to-board connector designed for high density electronic applications. Featuring a 1.25 mm pitch and 13 contacts arranged in a single row, this shrouded PCB header provides secure and compact connections while saving valuable PCB space by up to 45% compared to larger pitch systems.

The connector operates reliably at currents up to 1 amp and voltages up to 125 V. Its nylon housing is crafted for durability and chemical resistance, supporting operating temperatures ranging from -40°C to 105°C. Phosphor bronze contact material ensures excellent electrical performance, while tin plating further improves corrosion resistance and solderability.

Designed as a straight surface mount with solder terminations, it includes solder tabs that enhance retention on the PCB and act as strain relief to prevent joint cracking from handling or vibration. The shrouded design includes locking windows which engage with latching ramps in the mating crimp housing, providing a friction locking mechanism to prevent accidental unmating.

This PicoBlade header series is used widely in automotive alarms, car audio systems, DVD players, industrial process controls, and medical patient monitoring devices, where compact size and reliable connection are essential.

Supports 1 A current capability ensuring reliable performance. Compact 1.25 mm pitch design enables up to 45% PCB space savings compared to 2.00 mm systems. Shrouded 1 row design with 13 male contacts secures mating connection and prevents accidental unmating.

Surface mount type with solder termination offers strong PCB retention and strain relief. Durable nylon housing material withstands operating temperatures from -40°C to 105°C. Phosphor bronze contacts plated with tin ensure solid electrical conductivity.

Ideal for high density wire-to-board interconnections in automotive, industrial, medical, and consumer electronics. Features locking windows and latching ramps for friction lock ensuring vibration resistance. Explore a wide range of precision PCB Headers from Molex and other top brands for your electronics manufacturing and design projects on EnvMart.
