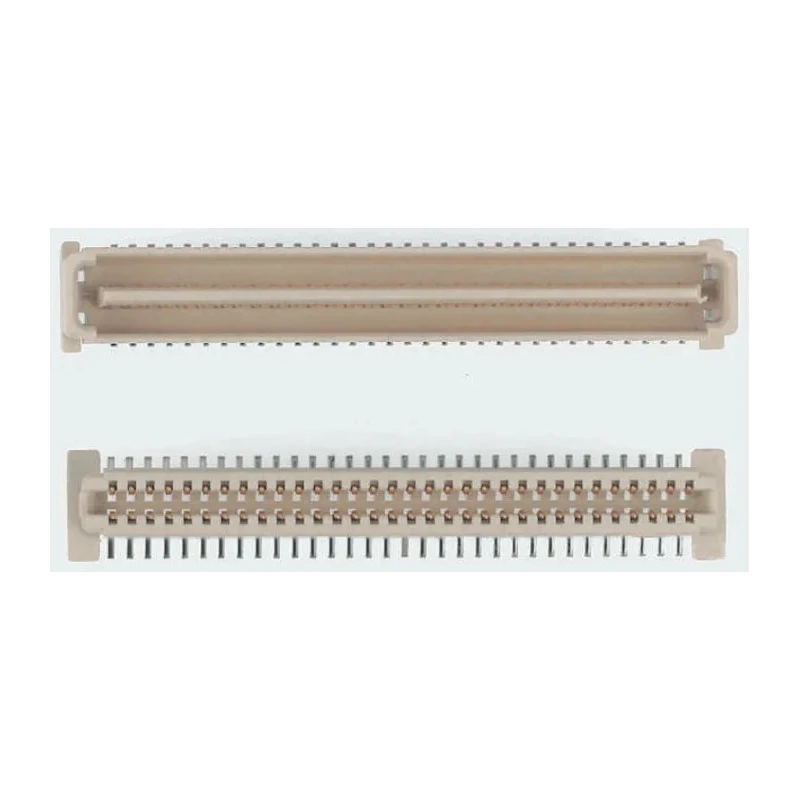

Molex PMC Mezzanine Series Straight Surface PCB Header, 64 Contacts, 1 mm Pitch, 2 Row, Shrouded 71436-2464

Molex 71436-2464 PMC Mezzanine Series Straight Surface PCB Header is a high-quality connector designed for vertical stacking SMT applications requiring reliable board-to-board interfacing. This model offers 64 contacts arranged in 2 straight rows with a 1 mm pitch, allowing practical use in demanding electronic environments.

The header features a shrouded contact design which protects the contacts from damage during handling and assembly. Its housing is constructed from high-temperature thermoplastic material compatible with reflow solder processes, ensuring durability and reliability.

Contacts are made of phosphor bronze and plated with gold to optimize conductivity and resist corrosion in various operating environments. The connector supports a maximum operating voltage of 100 volts and a current rating of 1 ampere, suitable for LAN, WAN, telecommunication, PC, and workstation applications.

Designed for surface mount technology, it enables efficient solder termination and low insertion force sockets to facilitate easy assembly and maintenance. The operating temperature range of -55°C to 85°C allows usage in a wide variety of industrial and commercial conditions.

Its vertical stacking capabilities provide mated heights ranging from 8 to 15 mm according to combination guides, making it adaptable for complex board configurations requiring IEEE 1386 compliance.

Features a 1.00 mm pitch for precision connectivity. 64 contacts in dual row configuration support high-density connections. Shrouded design minimizes damage risk to header contacts. Durable thermoplastic housing suitable for reflow soldering.

Gold-plated phosphor bronze contacts ensure optimal conductivity. Supports solder termination and low insertion force sockets. Rated for 100 V and 1 A current capacity with wide temperature range. Ideal for LAN, WAN, telecommunication, PC, and workstation uses.

Meets vertical stacking height requirements from 8 to 15 mm.

This Molex PMC Mezzanine Series PCB Header 71436-2464 is highly suitable for industrial, telecommunications, computing, and networking applications demanding reliable and compact board-to-board connectivity. Explore more connectors and components in the Electronics & Electricals category at EnvMart.
