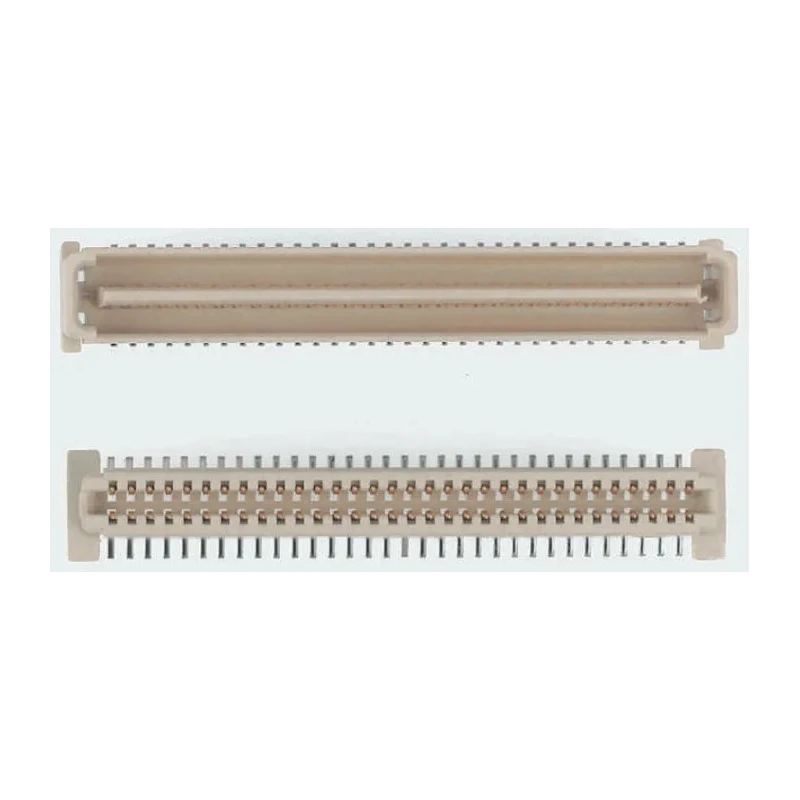

Molex PMC Mezzanine Series Straight Surface PCB Header, 64 Contacts, 1 mm Pitch, 2 Row, Shrouded 71436-2464

Molex 71436-2464 PMC Mezzanine Series Straight Surface PCB Header is a premium quality connector designed for reliable board-to-board connections in electronic systems. Featuring 64 contacts arranged in two rows with a 1 mm pitch, this straight surface mount header supports vertical stacking applications as defined by the IEEE 1386 standard.

The connector's thermoplastic housing offers excellent durability and is engineered for high-temperature reflow solder processes, making it suitable for automated PCB assembly. The phosphor bronze contacts are plated with gold to ensure low contact resistance and superior conductivity.

This shrouded header minimizes the risk of contact damage and provides a secure locking mechanism for mating mezzanine cards to VMEbus and Multibus host boards. It is rated for a voltage of 100V and a current of 1A, suitable for telecom, networking, PC, and workstation environments.

The product operates efficiently within a temperature range of -55°C to 85°C and features a low insertion force design combined with anti-flux properties to optimize manufacturing yields. Mated heights vary between 8 and 15 mm, catering to different vertical stacking requirements.

Applications include industrial and commercial electronic assemblies requiring robust board-to-board interconnects. Typical uses span LAN and WAN systems, telecommunication infrastructure, PC peripherals, and workstation configurations.

High-quality thermoplastic housing for durability and heat resistance. Phosphor bronze gold-plated contacts for consistent conductivity. Supports 100V and 1A electrical ratings for varied applications. Shrouded design reduces contact damage and improves reliability.

Surface mount with low insertion force designed for SMT processes. Wide operating temperature range ensures performance in diverse environments. Anti-flux design enhances soldering quality and reliability. Mated heights from 8 to 15 mm accommodate stacking needs.
