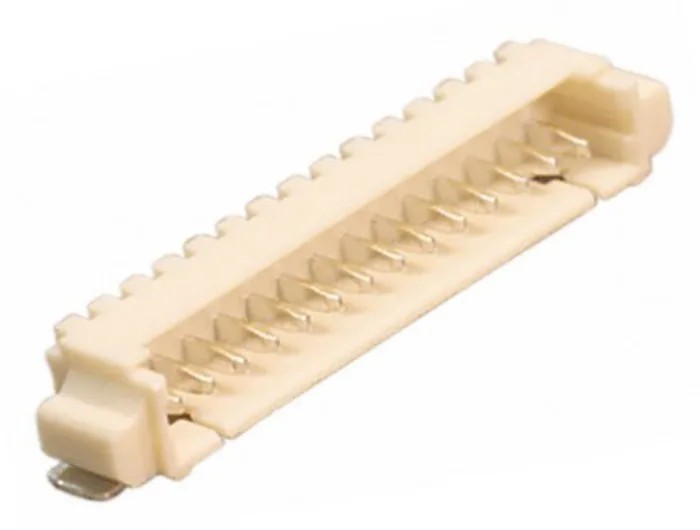

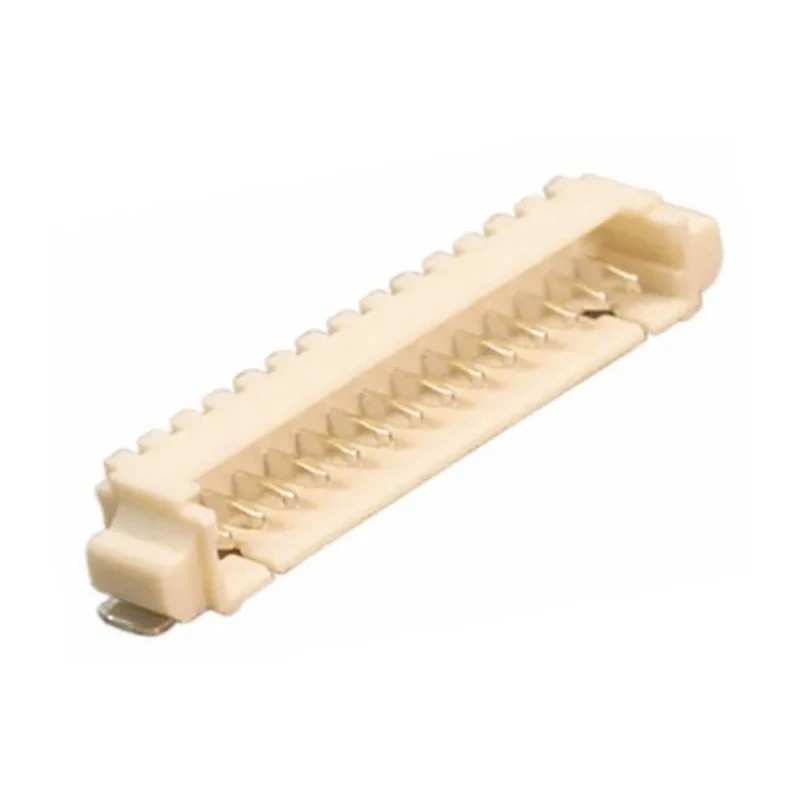

Molex PicoBlade Series Right Angle Surface PCB Header 14 Contacts 1.25 mm Pitch 1 Row Shrouded 53261-1471
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a compact 1.25 mm pitch for space-saving PCB designs.
- Equipped with 14 male contacts arranged in a single shrouded row.
- Supports 1 A current capacity for reliable performance.
- Constructed with thermoplastic housing and phosphor bronze contacts plated with tin.
- Right angle surface mount type with solder termination ensures strong mechanical retention.
- Operates within a temperature range of -40°C to 105°C for versatile applications.
- Includes friction locking mechanism to prevent accidental unmating.
- Ideal for automotive, industrial, and medical device PCB interconnections.
Product Description
Molex 53261-1471 PicoBlade Series Right Angle Surface PCB Header is engineered for high-density electronics requiring reliable wire-to-board connections with minimal PCB space usage. Its compact 1.25 mm pitch allows for up to 45% PCB space saving compared to larger 2.00 mm pitch connectors.
The header features 14 male contacts in a single row with a shrouded design to ensure durability and protection. The housing is made of thermoplastic that withstands temperatures from -40°C up to 105°C, suitable for demanding industrial environments.
This right angle surface mount header incorporates solder tabs that provide secure retention on the PCB and strain relief, minimizing solder joint cracking during handling. The friction locking system between connector housings offers a secure mating connection, preventing accidental disconnections caused by vibration or mishandling.
Typical industrial and commercial applications include automotive alarm systems, car audio and DVD players, industrial process controls, and medical patient monitoring devices where space and reliability are critical.
Compact 1.25 mm pitch design saves PCB space. Shrouded 14 contact single row configuration. Thermoplastic housing with phosphor bronze contacts. Right angle surface mount with solder termination. Operates from -40°C up to 105°C.
Friction locking mechanism for secure mating. Suitable for automotive, industrial, and medical uses. Explore more in our PCB Header category for reliable connector solutions in various industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of 1 A, ensuring reliable performance in various applications.
It features a compact pitch size of 1.25 mm, allowing for significant space-saving on PCBs.
The housing is made from thermoplastic, and the contacts are constructed from phosphor bronze with a tin plating.
It operates within a temperature range of -40°C to 105°C, making it suitable for demanding environments.
This unit is equipped with 14 male contacts arranged in a single shrouded row.
It utilizes solder termination, which ensures strong mechanical retention on the PCB.
The orientation of this model is right angle, designed for surface mounting on PCBs.
It is ideal for automotive, industrial, and medical device PCB interconnections, particularly where space and reliability are critical.
Yes, it features a friction locking mechanism that prevents accidental unmating due to vibration or mishandling.
The voltage rating for this model is 125V, suitable for various electronic applications.
The country of origin for this PCB header is Malaysia.
The shrouded design enhances durability and provides protection for the contacts, ensuring reliable connections.
