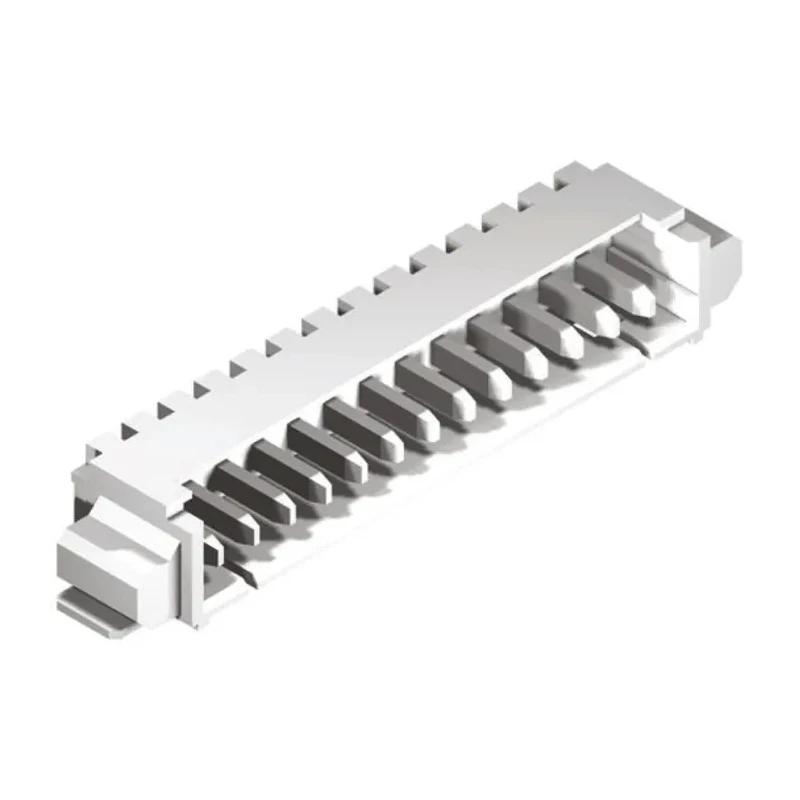

Molex PicoBlade Series Right Angle Surface PCB Header, 13 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53261-1371
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 13 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact 1.25 mm pitch design provides up to 45% PCB space saving compared to 2.00 mm systems.
- Features a friction locking mechanism with shrouded housing for secure mating connection.
- Supports 1 A current rating suitable for automotive alarms, industrial controls, and medical devices.
- Right angle orientation with surface mount type and solder termination ensures reliable board attachment.
- Constructed with thermoplastic housing and phosphor bronze contacts with tin plating for durability.
- Operates in temperature range from -40°C to 105°C suitable for demanding environments.
- Single row, 13 contact male header designed for high-density harness applications.
Product Description
Molex 53261-1371 PicoBlade Series right angle surface PCB header is a compact and durable connector designed for electronic devices requiring wire-to-board interfaces. Featuring 13 male contacts arranged in one row with a 1.25 mm pitch, it optimizes PCB space by nearly 45% over traditional 2.00 mm pitch connectors.
The shrouded housing made of thermoplastic includes locking windows that engage with counterpart crimp housings, providing a friction locking mechanism to prevent accidental unmating under vibration or mishandling. This security makes the connector reliable in automotive alarms, car audio systems, industrial process controls, and medical patient monitors.
Supporting a continuous current rating of 1 A and a voltage rating of 125 V, the PicoBlade header maintains excellent electrical performance. Contact materials of phosphor bronze with tin plating ensure long-lasting conductivity and resistance to corrosion. The solder termination with SMT solder tabs secures the header firmly to the PCB and minimizes solder joint stress.
Designed for right angle surface mounting, this header operates reliably across a wide temperature range from -40°C to 105°C, making it suitable for harsh industrial and automotive environments. Its compact footprint and robust locking features make it ideal for high-density wiring harnesses where space saving and connection integrity are priorities.
Compact 1.25 mm pitch design reduces PCB footprint. Friction lock with shrouded housing prevents accidental disconnection. 1 A current rating supports demanding electronic applications. Thermoplastic housing and phosphor bronze contacts with tin plating.
Right angle, surface-mount termination with solder tabs for strain relief. Wide operational temperature range from -40°C to 105°C. Suitable for automotive, industrial, and medical device connectors.
This Molex PicoBlade PCB Header enhances design flexibility and reliability in electronics manufacturing. Browse the Electronics Components category on EnvMart for more connector solutions with varied pitch and configurations.
