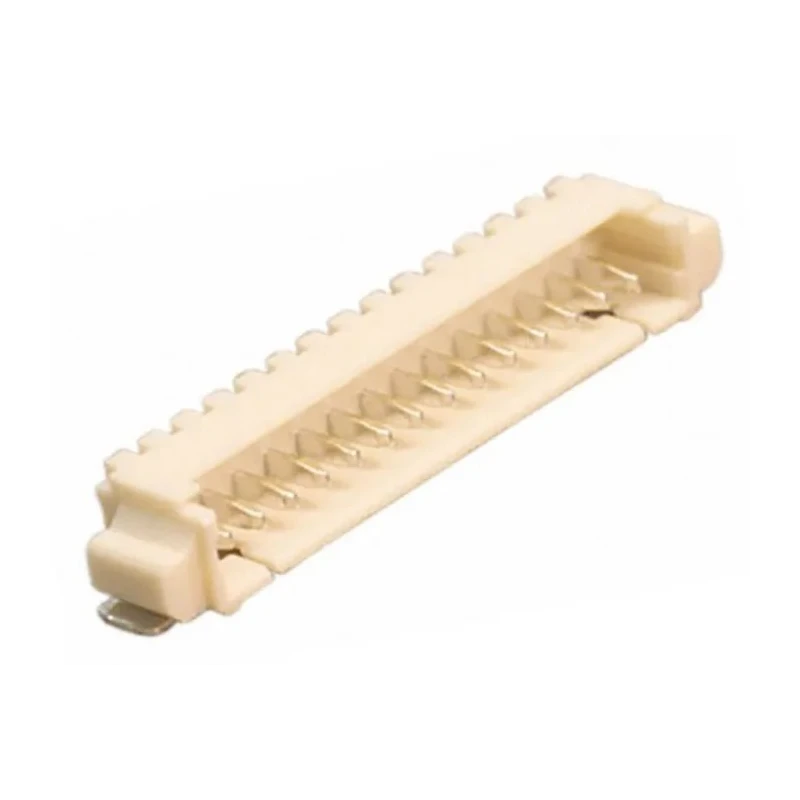

Molex PicoBlade Series Right Angle Surface PCB Header 14 Contacts 1.25 mm Pitch 1 Row Shrouded 53261-1471

Molex 53261-1471 PicoBlade Series Right Angle Surface PCB Header is a compact wire-to-board connector designed for high-density applications requiring a secure and reliable connection. Featuring 14 contacts spaced at a 1.25 mm pitch, this 1-row header offers significant PCB space savings of up to 45% compared to traditional 2.00 mm pitch connectors.

The connector supports a current rating of 1 A, matching the performance of larger pitch systems in a smaller footprint. It includes a shrouded housing that incorporates locking windows which engage with crimp housing latches to create a friction locking mechanism, preventing accidental disconnection caused by mishandling or vibration.

The surface mount design places the header at a right angle on the PCB, and solder tabs provide secure retention and strain relief, minimizing solder joint damage during assembly or use. The housing is made of durable thermoplastic suitable for industrial environments, and contacts are made from phosphor bronze plated with tin for reliable electrical performance.

This PCB Header is suitable for use in automotive alarm systems, car audio and DVD players, industrial process controls, and medical patient monitoring equipment. It effectively balances compact size with robust electrical and mechanical properties.

Compact 1.25 mm pitch reduces PCB space significantly. 1 A current capability in a small form factor. Friction locking shrouded housing for secure mating. Solder tabs provide PCB retention and strain relief. Thermoplastic housing provides high durability.

Phosphor bronze contacts with tin plating ensure conductivity. Wide operating temperature range from -40°C to 105°C. Right angle surface mount configuration. Suitable for automotive, industrial, and medical applications.
