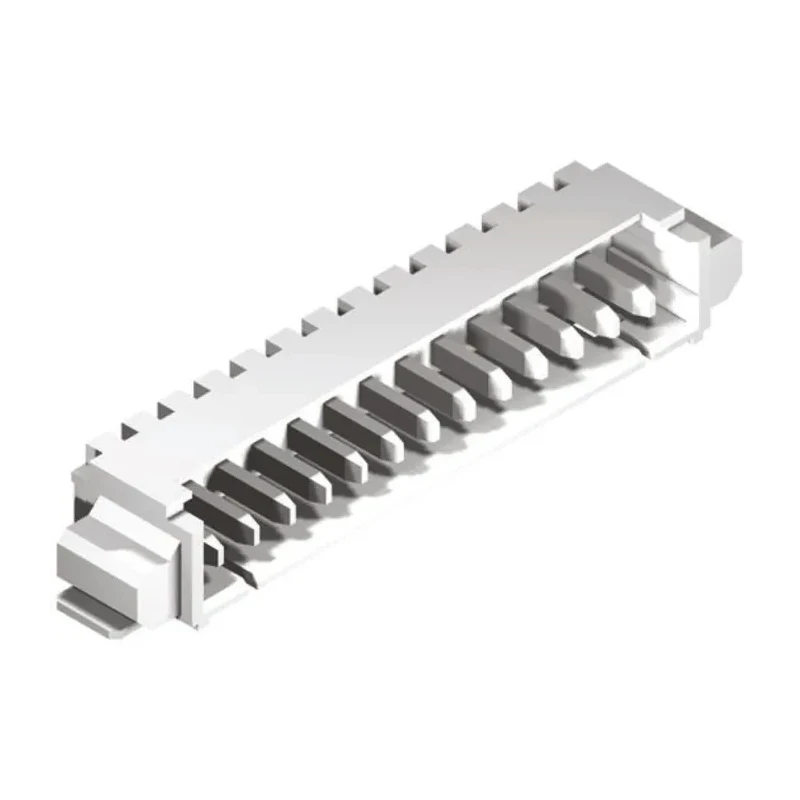

Molex PicoBlade Series Right Angle Surface PCB Header, 13 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53261-1371

The Molex 53261-1371 PicoBlade Series Right Angle Surface PCB Header is a high-density, compact connector solution designed for efficient PCB space utilization and secure electrical connections. It features a 13-contact configuration arranged in a single row with a 1.25 mm pitch, offering significant PCB space savings of up to 45% when compared to traditional 2.00 mm pitch systems.

Capable of handling a 1 A current, this connector maintains reliable electrical performance in a compact form factor. The right angle orientation enables flexible PCB layouts, while the shrouded design includes a friction locking mechanism that prevents accidental disconnections caused by handling or vibration.

The housing is manufactured from durable thermoplastic material, providing mechanical stability and insulation. Contacts are constructed from phosphor bronze and plated with tin to ensure excellent conductivity and corrosion resistance. The solder termination method and male contact gender support robust wire-to-board interconnections with surface mounting for ease of assembly.

This connector series is rated for operation across a wide temperature range from -40°C to 105°C, making it suitable for demanding environments.

The Molex PicoBlade system finds common applications in automotive alarm systems, car audio equipment, DVD players, industrial process controls, and medical patient monitoring devices, ensuring versatility across various industries.

Compact 1.25 mm pitch with 13 contacts for dense PCB layouts. 1 A current rating suitable for power and signal applications. Right angle and shrouded design enhances mounting flexibility and connection security. Durable thermoplastic housing and tin-plated phosphor bronze contacts.

Solder termination with surface mount ensures reliable mechanical retention. Operational temperature range from -40°C to 105°C supports harsh conditions. Explore our broad range of PCB Headers and connectors in the Electronics & Electricals category to find the optimal solution for your projects.
