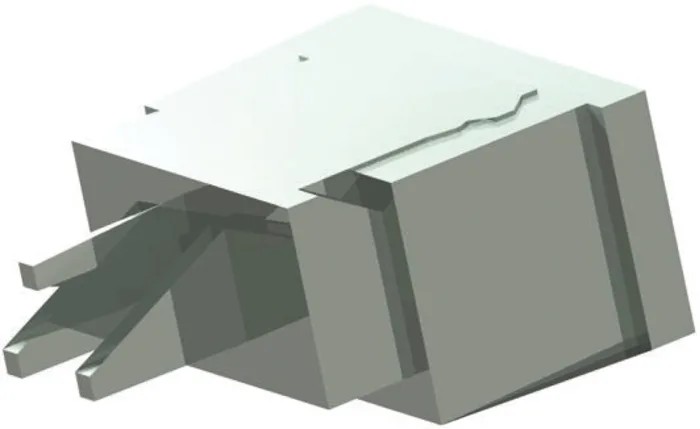

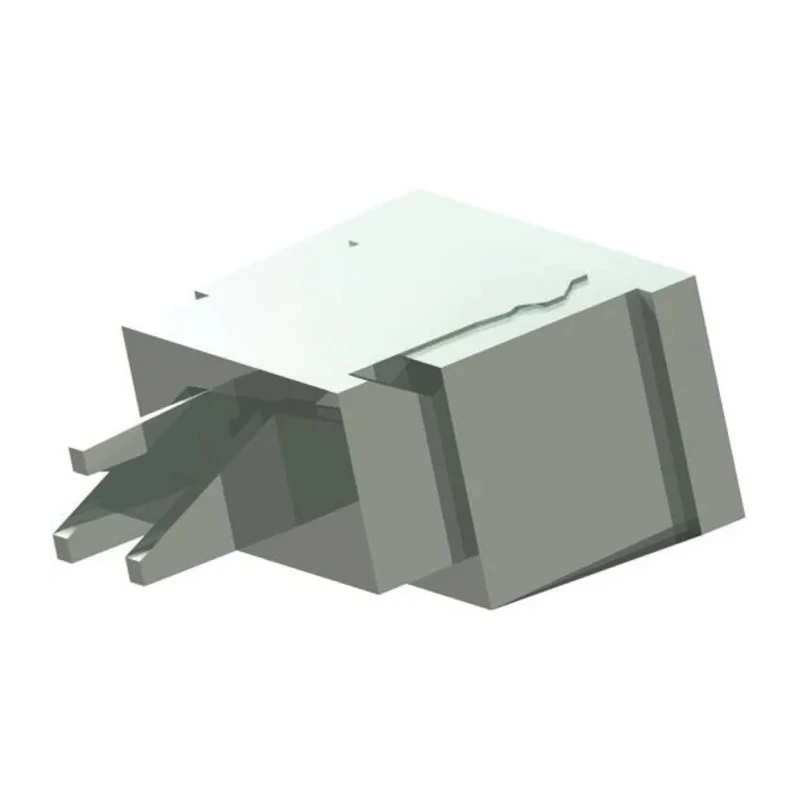

Molex 5597 Series 1.25 mm Pitch 11 Way Straight Female FPC Connector, Solder Termination 39-53-2115
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 11 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- Features a 1.25 mm pitch with 11 contact points for precise signal transmission.
- Constructed with phosphor bronze contacts plated with tin over nickel for durability.
- Zero Insertion Force (ZIF) design enables repeat cycling with minimal wear.
- Includes a slide type actuator for secure and easy insertion of flat flexible cables.
- Designed for operating temperatures ranging from -20°C to 80°C for versatile use.
- Rated for a voltage of 200V and a current of 1 Ampere.
- Housing made from Polyethylene Terephthalate ensuring insulation and mechanical stability.
- Incorporates a locking mechanism to prevent accidental disconnection.
Product Description
Molex 39-53-2115 is a 5597 series 1.25 mm pitch 11 way straight female FPC Connector designed for through hole PCB mounting and solder termination. It features a Zero Insertion Force (ZIF) contact mechanism for minimal wear during repeated mating cycles, making it ideal for applications requiring durable and reliable connections.
The connector construction includes phosphor bronze contacts with tin over nickel plating, housed in durable Polyethylene Terephthalate material. The slide type actuator securely locks flexible printed circuits (FPC) while facilitating easy insertion and removal. Rated for 200 volts and 1 amp, it supports reliable signal transmission in a wide temperature range from -20°C to 80°C, suitable for various electronic and automotive applications requiring compact, space-saving connectors.
The single row, straight orientation design offers an efficient footprint for PCB integration. Locking mechanism ensures robust contact retention, preventing accidental disconnections during operation.
This connector series is engineered in Japan, adhering to high manufacturing standards. It is commonly used in electronics, telecommunications, automotive electronics, and other industrial applications where high-density flexible PCB connections are necessary.
Features a 1.25 mm pitch with 11 contact points for precise signal transmission. Constructed with phosphor bronze contacts plated with tin over nickel for durability. Zero Insertion Force (ZIF) design enables repeat cycling with minimal wear.
Includes a slide type actuator for secure and easy insertion of flat flexible cables. Designed for operating temperatures ranging from -20°C to 80°C for versatile use. Rated for a voltage of 200V and a current of 1 Ampere.
Housing made from Polyethylene Terephthalate ensuring insulation and mechanical stability. Incorporates a locking mechanism to prevent accidental disconnection. Single row, straight orientation suitable for compact, space-saving PCB designs.
Manufactured in Japan ensuring high quality standards. Explore more high-quality connectors and electronic components in the Electronics & Electricals category at EnvMart for your specialized industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector features a 1.25 mm pitch and has 11 contact points for precise signal transmission.
It is designed for a maximum operating temperature of 80°C, allowing for versatile use in various applications.
This model uses solder termination, suitable for through hole PCB mounting.
It is rated for a voltage of 200V and a current of 1 Ampere, ensuring reliable performance in electronic applications.
The connector is constructed with phosphor bronze contacts plated with tin over nickel, and the housing is made from Polyethylene Terephthalate.
The ZIF design enables repeat cycling with minimal wear, making it ideal for applications requiring durable and reliable connections.
It includes a slide type actuator that securely locks flexible printed circuits while facilitating easy insertion and removal.
This connector has a straight orientation, which is suitable for compact, space-saving PCB designs.
It is manufactured in Japan, adhering to high quality standards.
The minimum operating temperature for this connector is -20°C, allowing it to function in a wide range of environments.
It is commonly used in electronics, telecommunications, automotive electronics, and other industrial applications requiring high-density flexible PCB connections.
This model features a single row design, which contributes to its compact footprint for PCB integration.
