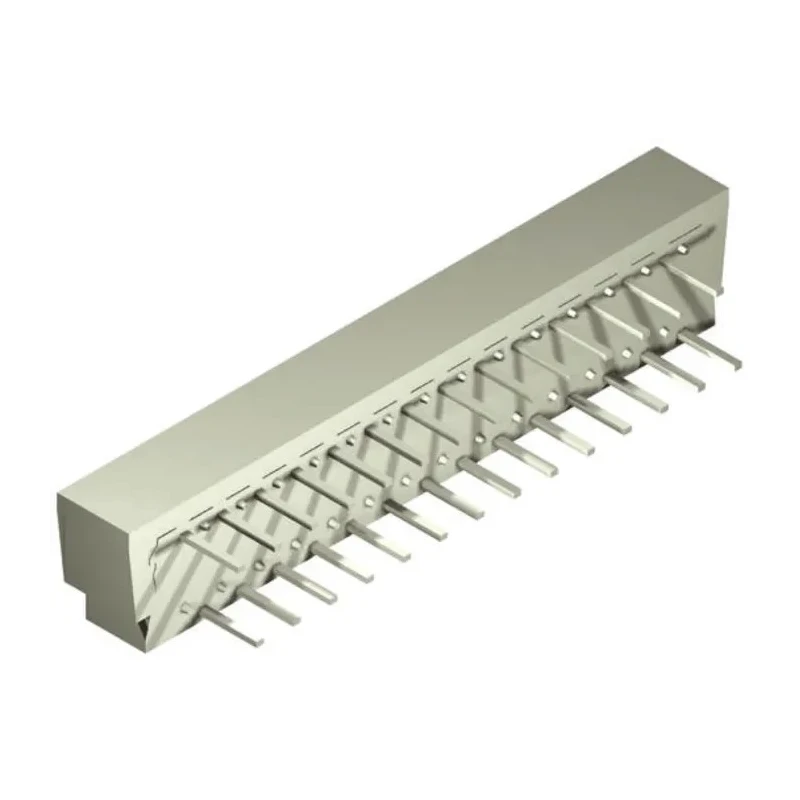

Molex 5597 1.25 mm Pitch 18 Way Right Angle Female FPC Connector, Solder 39-53-2184
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- The 5597 series connectors use Zero Insertion Force (ZIF) technology for minimal wear and easy repeated cycling.
- Features a slide type actuator to secure the connection between the FPC and connector terminals.
- Constructed with phosphor bronze contacts plated with tin bismuth over nickel for reliable conductivity.
- Housing made from durable polybutylene terephthalate material ensuring robust mechanical stability.
- Rated for 200V voltage and 1A current carrying capacity, suitable for automotive and electronic applications.
- Designed with a right angle orientation and locking mechanism to aid secure installation in compact PCB layouts.
- Operates reliably in temperatures ranging from -20°C to 80°C.
- Contains 18 contacts arranged in a single row with easy-on FFC/FPC subtype.
Product Description
Molex 39-53-2184 is an 18 way, right angle female FPC connector from the 5597 series featuring a 1.25 mm pitch. It is designed for solder termination and through-hole mounting, making it suitable for tight packaging applications in automotive and other electronic industries.
This connector employs Zero Insertion Force (ZIF) technology with a slide type actuator to allow easy insertion and secure connection of flexible printed circuits while minimizing wear during repeated cycles. The contacts are made from phosphor bronze and plated with tin bismuth over nickel to ensure excellent conductivity and corrosion resistance.
The polybutylene terephthalate housing provides a rugged and stable mechanical structure. It is rated for operation between -20°C to 80°C, supports a voltage of 200V, and a current of 1A, making it ideal for various electronic assemblies requiring compact, reliable connections.
The connector’s right angle orientation facilitates space-saving PCB layouts while the locking mechanism ensures secure mating retention. It comes with 18 contacts arranged in a single row, supporting easy-on FFC/FPC subtype connectors.
Zero Insertion Force (ZIF) technology reduces insertion wear and allows repeated cycling. Slide type actuator provides a reliable and easy connection of FPC cables. Phosphor bronze contacts with tin bismuth over nickel plating for durable conductivity.
Polybutylene terephthalate housing ensures mechanical strength and durability. Rated for 200V voltage, 1A current, and operating temperature range -20°C to 80°C. Right angle orientation designed for compact PCB installations.
Locking mechanism secures connector firmly during use. Suitable for automotive electronics and electronic component applications.
This FPC connector is part of the Molex 5597 series, incorporating advanced features for reliable, compact connections in industrial and electronic device manufacturing. Explore more solutions in FPC Connectors at EnvMart for your industrial and laboratory electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 200V.
It has a current carrying capacity of 1A.
The connector operates reliably in temperatures ranging from -20°C to 80°C.
This model features 18 contacts arranged in a single row.
It supports through-hole mounting, making it suitable for tight packaging applications.
The contacts are made from phosphor bronze and plated with tin bismuth over nickel, while the housing is constructed from polybutylene terephthalate.
It employs Zero Insertion Force (ZIF) technology, which allows for easy insertion and reduces wear during repeated cycles.
This connector is designed with a right angle orientation, facilitating space-saving PCB layouts.
It utilizes solder termination for secure connections.
It is classified as an Easy-On FFC/FPC connector.
Yes, it features a locking mechanism that ensures secure mating retention during use.
The country of origin for this connector is India.
