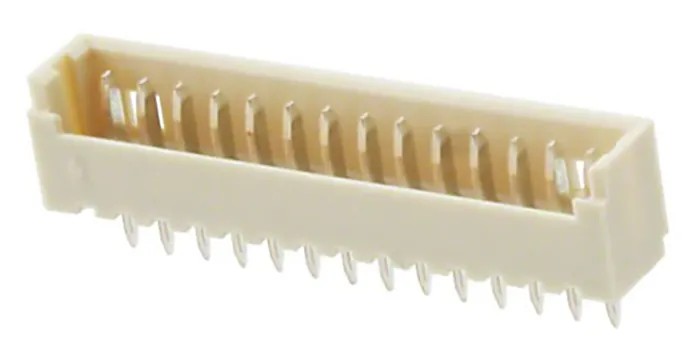

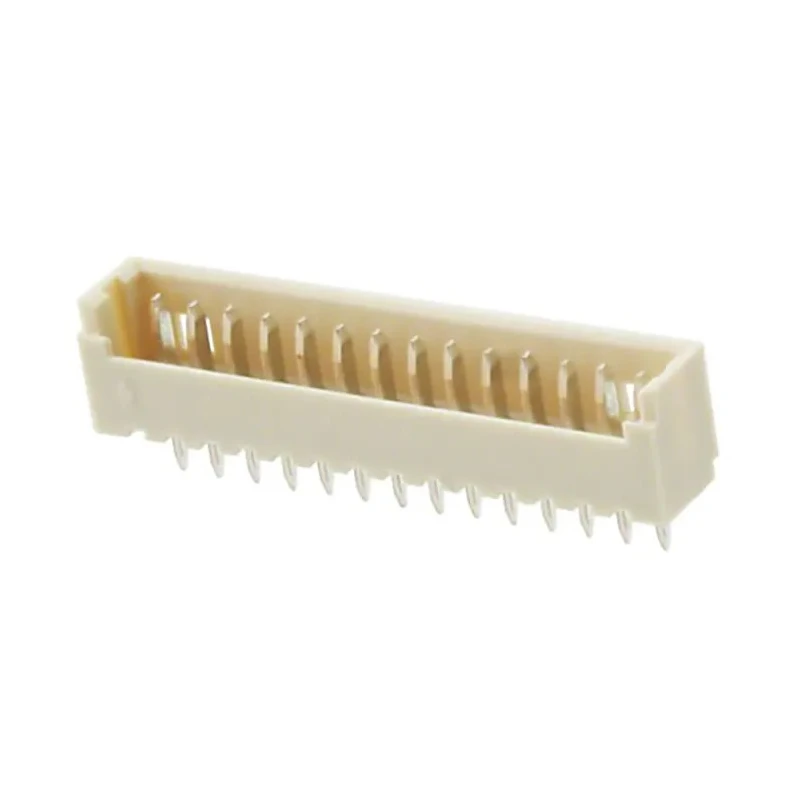

Molex PicoBlade Series PCB Header 14 Contacts 1.25 mm Pitch 1 Row Straight Through Hole Shrouded 53047-1410
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact 1.25 mm pitch design conserves PCB space by up to 45% compared to 2.00 mm pitch alternatives.
- Supports 1 A current capability ensuring efficient electrical performance.
- Phosphor bronze contact material with tin plating for durability and conductivity.
- Through hole mount with solder termination for secure PCB attachment.
- Friction locking mechanism provides secure mating and prevents accidental disconnection.
- Operating temperature range from -40°C to 85°C suitable for diverse environments.
- Shrouded single row housing made of nylon enhances connector protection and insulation.
- Designed for wire-to-board connections in high-density applications.
Product Description
Molex 53047-1410 PicoBlade Series PCB Header is a high-density, compact connector featuring 14 male contacts arranged in a single row with a 1.25 mm pitch. The straight through hole mounting style incorporates a shrouded nylon housing that provides secure insulation and protection. This PCB header is designed for wire-to-board interconnection systems, offering up to 45% PCB space savings compared to 2.00 mm pitch systems while maintaining a 1 A current rating.
The contacts are crafted from phosphor bronze material with tin plating, ensuring excellent conductivity and corrosion resistance. Its friction locking mechanism utilizes locking windows and latching ramps to maintain secure mating and prevent accidental disconnection due to vibration or mishandling. The solder termination type guarantees a firm attachment to printed circuit boards, improving durability and strain relief.
This connector operates reliably across a temperature range from -40°C to 85°C, making it suitable for multiple industrial, automotive, and electronic applications such as alarm systems, car audio, DVD players, industrial process controls, and medical monitoring equipment.
The compact design supports wire harness applications requiring efficient space utilization without sacrificing electrical performance. The shrouded housing provides additional mechanical protection, ensuring the contacts are shielded during assembly and operation.
Compact 1.25 mm pitch design conserving PCB space. 1 A current capability suitable for moderate power applications. Phosphor bronze contacts with tin plating for reliable connectivity. Friction-based secure locking mechanism to prevent accidental unmating.
Through hole solder termination offering strong PCB retention. Wide operating temperature range from -40°C to 85°C. Shrouded nylon housing for contact protection and insulation. Ideal for automotive, industrial, and medical electronics applications.
Explore additional Molex connectors and PCB Header options available on EnvMart for diverse electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 1.25 mm, which helps conserve PCB space by up to 45% compared to 2.00 mm pitch alternatives.
This model features 14 male contacts arranged in a single row.
It has a maximum current rating of 1 A, making it suitable for moderate power applications.
This unit utilizes a solder termination type for secure attachment to printed circuit boards.
The contacts are made from phosphor bronze and are plated with tin to ensure reliable conductivity and corrosion resistance.
The operating temperature range is from -40°C to 85°C, allowing it to function in diverse environments.
Yes, the housing is shrouded and made of nylon, which enhances protection and insulation for the contacts.
This model features a through hole mounting style for secure PCB attachment.
It is designed for wire-to-board connections in high-density applications such as automotive, industrial, and medical electronics.
The friction locking mechanism utilizes locking windows and latching ramps to maintain secure mating and prevent accidental disconnection due to vibration or mishandling.
The country of origin for this PCB header is India.
This model has a voltage rating of 125V, suitable for various electronic applications.
