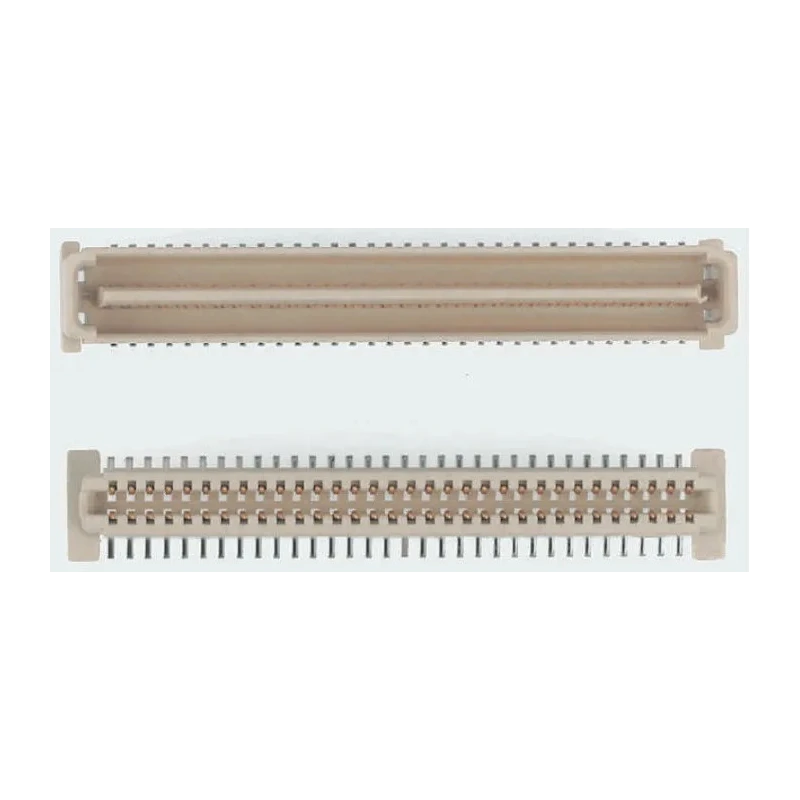

Molex PMC Mezzanine Series Straight Surface PCB Header, 64 Contact, 1 mm Pitch, 2 Row, Shrouded 71436-0364

Molex 71436-0364 PMC Mezzanine Series Straight Surface PCB Header is a high-quality electronic component designed for board-to-board connection applications requiring 64 contact points arranged in 2 rows with a 1 mm pitch. Engineered with a shrouded, straight orientation, this surface-mount header is ideal for vertical stacking uses in industrial, telecommunications, and computing environments.

The component features high-temperature thermoplastic housing suitable for reflow soldering processes, ensuring durability and reliability under thermal stress. Its phosphor bronze contacts are gold plated to maintain excellent conductivity and resist corrosion over long operating periods. The shrouded leaf design offers additional protection, reducing mechanical damage risk to delicate header pins during assembly or maintenance.

With a current capacity of 1 ampere and a voltage rating of 100 V, this PCB Header meets the electrical requirements of LAN, WAN, telecommunication, PC, and workstation systems. It is capable of operating in extreme temperatures ranging from -55°C to 85°C, making it suitable for diverse environments.

The connector is designed for surface-mount technology (SMT), allowing for compact and reliable vertical stacking of mezzanine cards as per IEEE 1386 standards. It supports mated heights from 8 to 15 mm, facilitating various PCB layout combinations.

Produced in the United States, the header adheres to UL recognised component standards, ensuring compliance and quality assurance. This product features 64 gold-plated phosphor bronze contacts for excellent electrical performance.

High-temperature thermoplastic construction supports use in reflow soldering. Shrouded design protects contact pins from damage and contamination. Designed for board-to-board surface mount applications with vertical stacking.

Suitable for industrial, laboratory, telecommunications, and computing applications. Operates effectively from -55°C up to 85°C ambient temperatures. Explore more electronic connector components on EnvMart to enhance your design and manufacturing capabilities.
