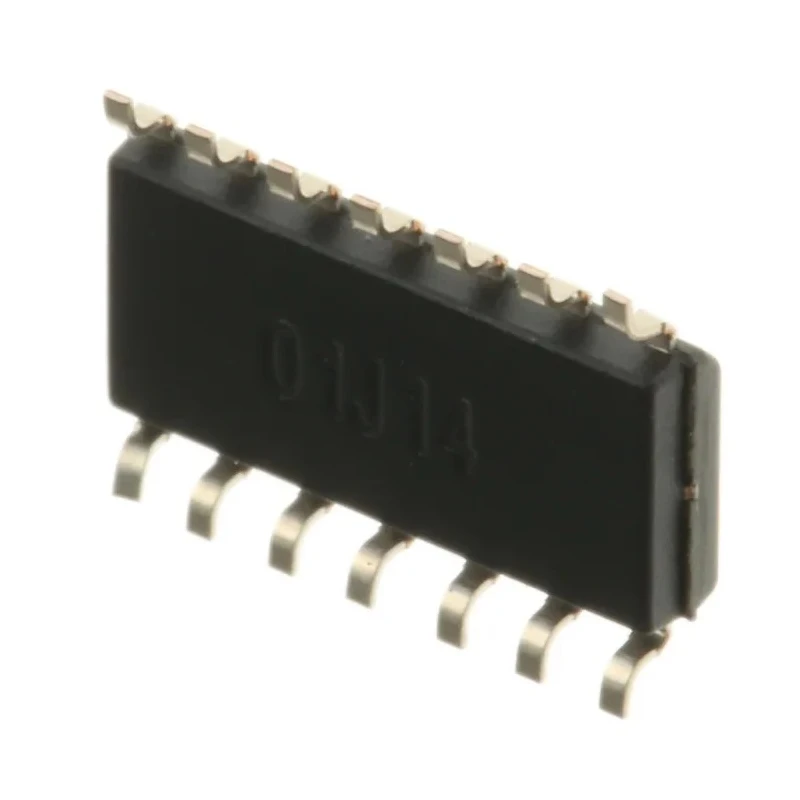

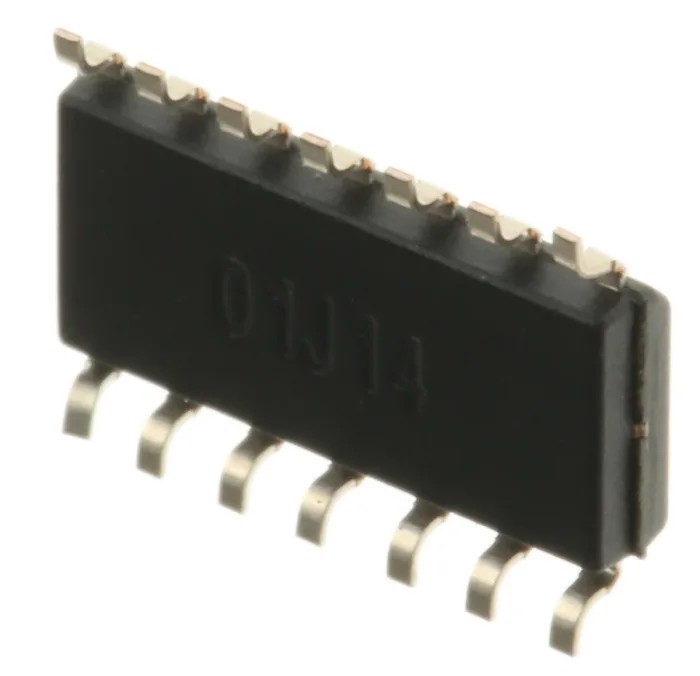

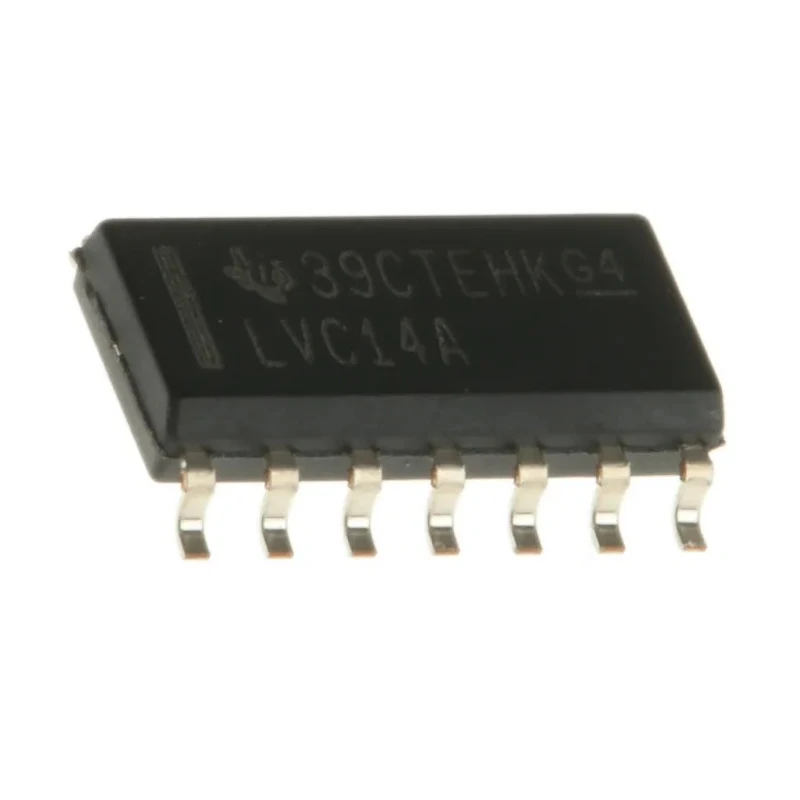

Texas Instruments Schmitt Trigger Input CMOS Inverter 6-Element 14-Pin SOIC SN74LVC14AD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | SN74LVC14AD |
| Width | 3.91mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | CMOS, Push Pull |
| Series | SN74LVC14A |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 1.65 to 3.6V |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | LVC |
| Logic Function | Inverter |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 9.5ns |
| Maximum Low Level Output Current | 24mA |
Key Features
- Operates at supply voltage range from 1.65V to 3.6V.
- Features six inverter elements with Schmitt trigger inputs for improved noise immunity.
- Maximum propagation delay time is 9.5 nanoseconds at CL.
- Supports output currents of -24mA (high level) and 24mA (low level).
- Low power consumption suitable for modern digital circuits operating at 3.3V.
- Surface mount SOIC package with 14 pins for easy PCB integration.
- Wide operating temperature range from -40°C to 125°C.
- Compatible with LVTTL/TTL inputs and outputs LVCMOS signals.
Product Description
Texas Instruments SN74LVC14AD is a high-performance CMOS inverter IC featuring Schmitt trigger inputs. This IC comprises six individual inverter elements packaged in a compact 14-pin SOIC format, tailored for modern low-voltage digital logic applications.
Operating voltage range is from 1.65V to 3.6V, which significantly reduces power consumption compared to traditional 5V logic circuits, making it ideal for portable and energy-efficient devices. The Schmitt trigger input provides enhanced noise immunity and superior signal integrity, suitable for industrial or commercial electronics requiring reliable switching performance.
The device supports a maximum propagation delay of 9.5 nanoseconds at typical load conditions, enabling fast logic transitions and responsive system control. Output drive capabilities are strong, with maximum high level output current of -24mA and low level output current of 24mA, allowing it to drive various loads directly.
Designed for surface-mount printing, the SOIC 14-pin package facilitates automated assembly and compact PCB layouts. The operating temperature range from -40°C to 125°C ensures suitability across a broad spectrum of environments including industrial and automotive electronics.
The IC is compatible with LVTTL and TTL inputs and produces LVCMOS outputs, ensuring interoperability in mixed-signal systems. The device also benefits from recognized latch-up and ESD protection standards, enhancing reliability in demanding applications.
Operates between 1.65V and 3.6V supply voltage range. Contains six inverter elements with Schmitt trigger inputs. 14-pin SOIC surface mount package for efficient PCB integration. Maximum propagation delay of 9.5 nanoseconds at load.
High drive current capability: -24mA high level, 24mA low level. Wide temperature range from -40°C to 125°C. Compatible with LVTTL/TTL input and LVCMOS output. Meets latch-up and ESD protection requirements.
This electronic component is widely used in industrial automation, consumer electronics, communication devices, and embedded systems, where reliable switching and low power consumption are critical.
Explore more semiconductor products and Texas Instruments components at EnvMart for professional-grade electronics solutions.
Explore more products in our Inverters ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range is from 1.65V to 3.6V, making it suitable for low-voltage applications.
It contains six inverter elements, each with Schmitt trigger inputs for improved noise immunity.
The maximum propagation delay time is 9.5 nanoseconds at typical load conditions.
It supports a maximum high-level output current of -24mA and a low-level output current of 24mA.
The operating temperature range is from -40°C to 125°C, allowing it to function in various environments.
The SN74LVC14AD is packaged in a 14-pin SOIC format, designed for surface mounting.
Yes, it is compatible with LVTTL and TTL inputs and produces LVCMOS outputs.
The dimensions are 1.58mm in height, 3.91mm in width, and 8.65mm in length.
The input type is Schmitt Trigger, which enhances noise immunity and signal integrity.
It belongs to the LVC logic family, which is designed for low-voltage applications.
The output type is CMOS with a push-pull configuration, suitable for driving various loads directly.
The country of origin for this model is India.
