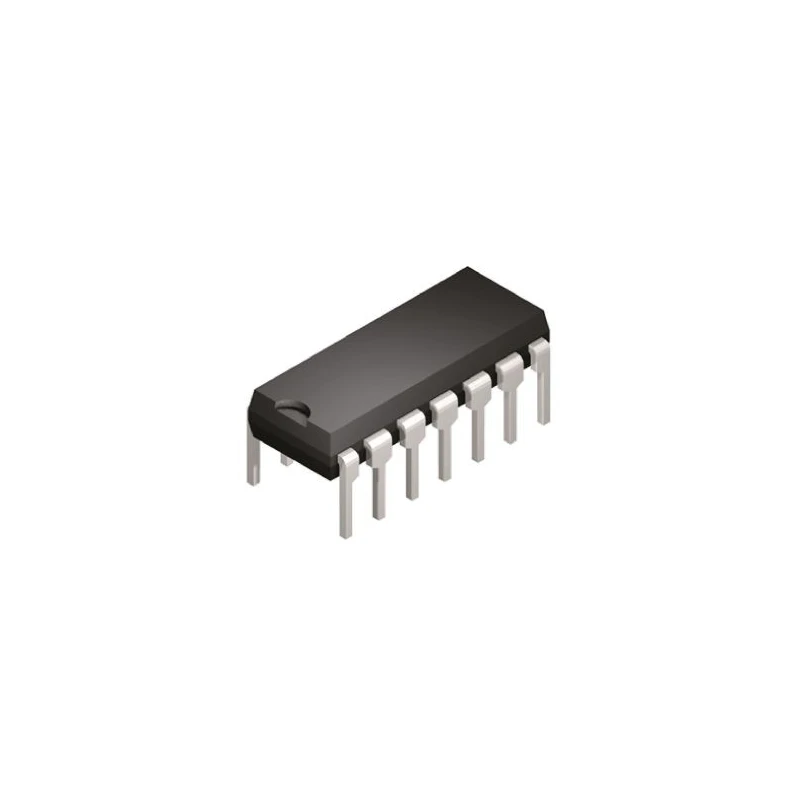

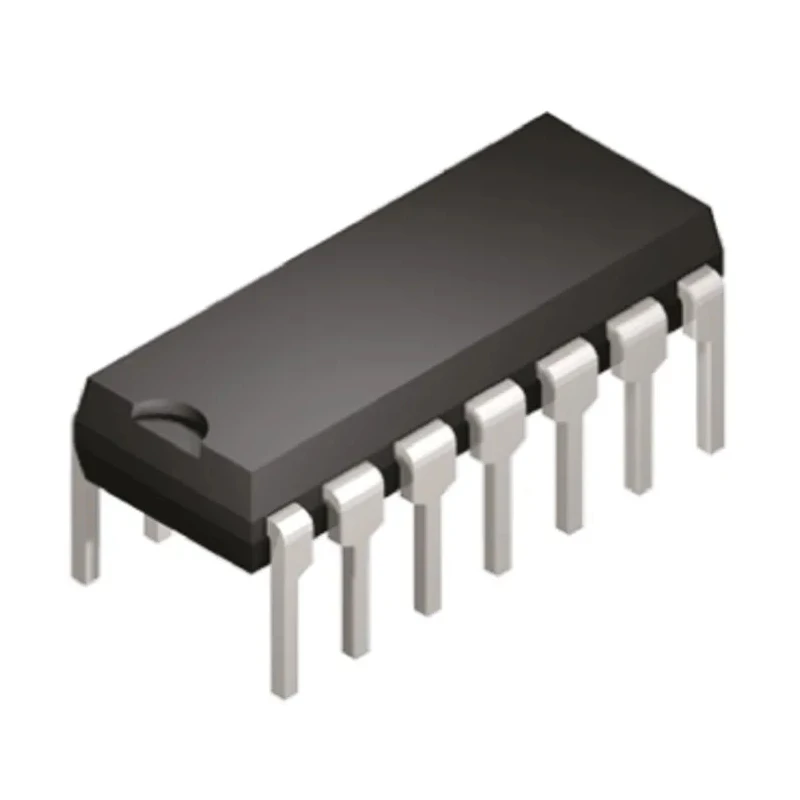

Texas Instruments Inverter 1 Element CMOS Logic IC 14-Pin PDIP CD4007UBE

Texas Instruments CD4007UBE is a high-performance CMOS inverter logic IC featuring a single inverter element in a robust 14-pin PDIP through-hole package. Designed to operate over a wide voltage range of 3V to 18V, it offers flexibility across various electronic and industrial applications.

This device belongs to the 4000 series CMOS logic family known for low power consumption, high noise immunity, and robust operation in diverse conditions. It supports an extensive operating temperature range from -55°C to 125°C, making it very reliable for harsh environments.

The chip features a maximum propagation delay of 110 ns with typical loading and is specifically designed without a Schmitt trigger input to maintain standard logic signal characteristics. Its compact physical dimensions (19.3 mm by 6.35 mm by 4.57 mm) make it suited for space-constrained printed circuit boards where through-hole mounting is preferred.

Industrial use cases include signal inversion in processing units, buffer applications, and incorporation into semiconductor logic circuits and development kits. This inverter IC is widely used in laboratory instrumentation, electronic component manufacturing, and educational electronics projects.

CMOS input type for low power consumption. Single inverter element per chip provides simple logic operation. Supports supply voltage from 3V to 18V. Through-hole 14-pin PDIP package facilitates PCB mounting. Wide operating temperature range from -55°C to 125°C ensures durability.

Max propagation delay time is 110 nanoseconds (@ CL). Compact device size suits various electronic boards. Part of the reliable 4000 CMOS logic series. Ideal for laboratory, industrial electronics, and semiconductor uses.
