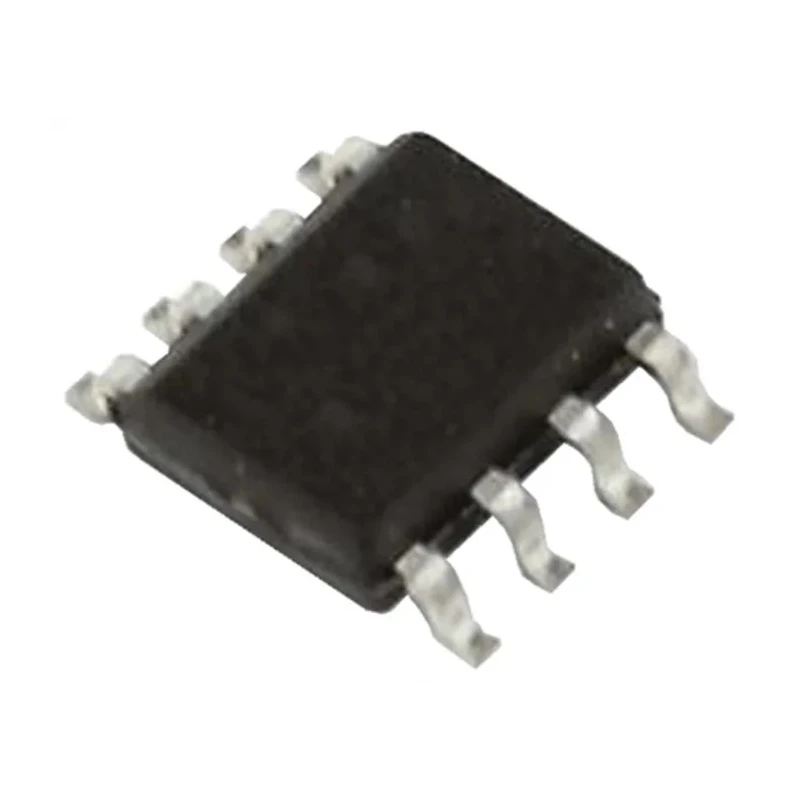

Texas Instruments Schmitt Trigger Input CMOS Inverter 3 Elements 8-Pin SSOP Operating Voltage 1.65 to 5.5 V SN74LVC3G14DCTR

Texas Instruments model SN74LVC3G14DCTR is a low-voltage CMOS inverter IC with incorporated Schmitt trigger input designed to improve noise immunity and signal integrity in digital circuits. Operating within a supply voltage range of 1.65 to 5.5 volts, this device contains three identical inverter elements packaged in an 8-pin SSOP surface mount package, making it well-suited for high-density surface mounted PCB layouts.

With a maximum propagation delay of 9.7 nanoseconds at specified load capacitance, the SN74LVC3G14DCTR provides fast and reliable switching performance for timing-critical applications. It supports maximum ±32 mA output current levels to effectively drive TTL and CMOS loads. The logic family LVC ensures compatibility with a wide range of logic families for input and output interfacing.

The device is engineered to operate under a broad temperature range from -40 to 85 degrees Celsius, supporting robustness in industrial, automotive, and commercial electronics. Its compact dimensions (length 2.95 mm, width 2.8 mm, and height 1.29 mm) enable integration in space-constrained environments.

This CMOS inverter with Schmitt trigger input is ideal for applications including waveform conditioning, signal debouncing, oscillator circuits, and as a basic building block in control and interface circuits in laboratory instruments, industrial automation systems, and embedded electronic designs.

High noise immunity and hysteresis from Schmitt trigger inputs improve signal stability. Low power consumption enabled through advanced CMOS technology. Compact surface mount package supports modern electronic assembly techniques.

Robust electrical characteristics suitable for demanding environments. Compatibility with LVTTL/TTL inputs and LVCMOS outputs ease integration with mixed logic systems. Useful in industrial equipment, instrumentation, and consumer electronic device development.

Supports automated manufacturing with pack quantities facilitating production efficiency. Designed by Texas Instruments, a trusted leader in semiconductor solutions.

For further design support, 3D models, schematics, and footprints are available through DesignSpark and Texas Instruments technical resources. This IC ensures dependable performance in signal processing and digital logic applications, supporting enhanced product development and innovation. Explore EnvMart's extensive inventory for more semiconductor and logic IC components optimized for your projects.
