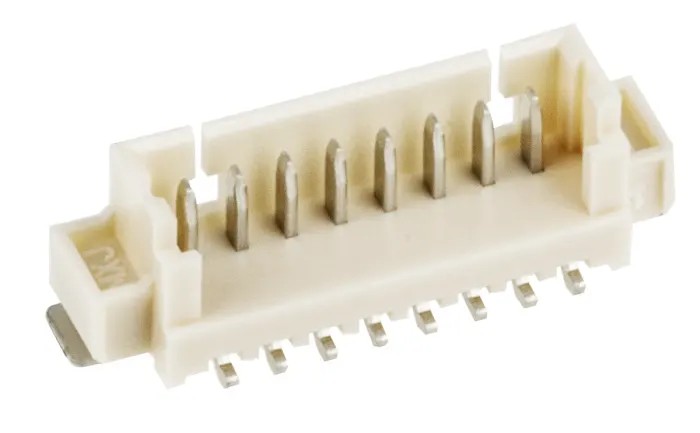

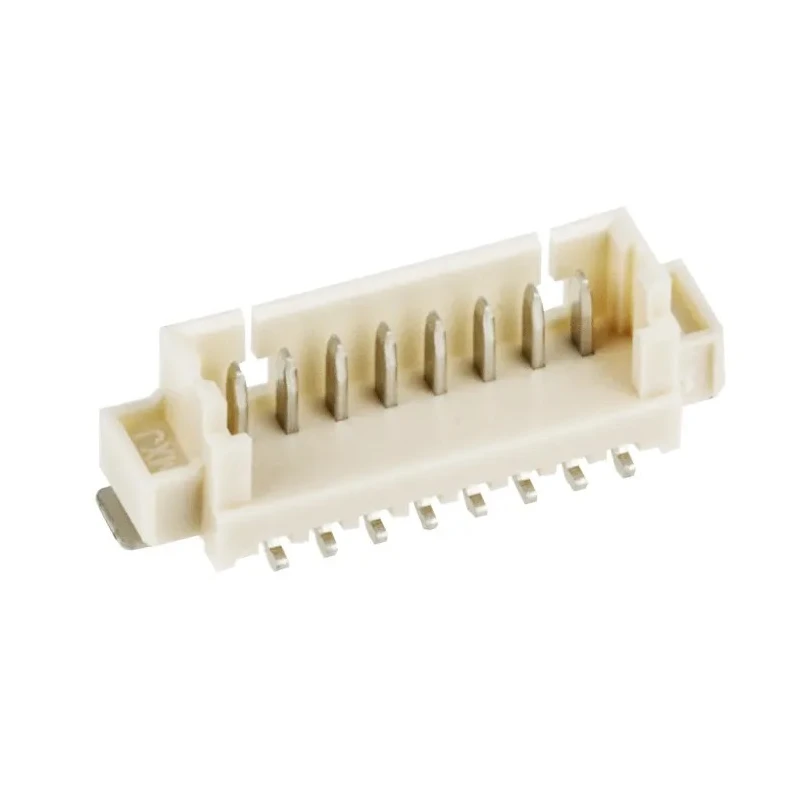

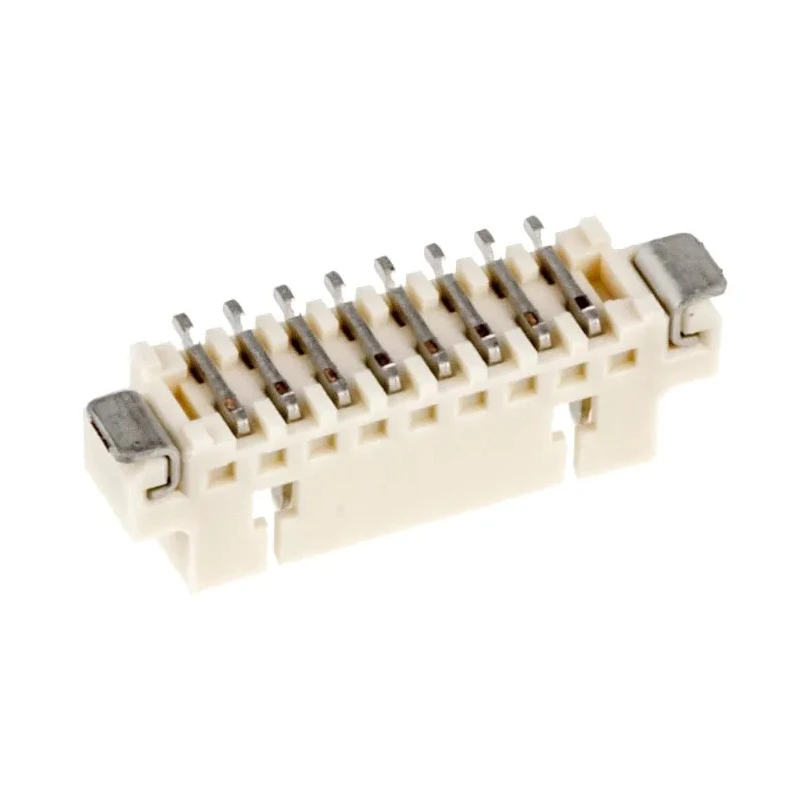

Molex PicoBlade Series Straight Surface PCB Header 8 Contact 1.25mm Pitch 1 Row Shrouded 53398-0871

Molex 53398-0871 PCB Header is a high-quality electronic connector designed for surface mount applications on printed circuit boards. Featuring 8 male contacts arranged in a single-row configuration with a compact 1.25 mm pitch, this shrouded header provides a secure and space-saving wire-to-board connection solution.

The connector’s tin-plated phosphor bronze contacts offer excellent conductivity ensuring reliable current flow up to 1 Amp. The housing is made of resilient nylon material that protects the contacts from mechanical damage and environmental impacts.

Operating over a wide temperature range from -40°C to 105°C, this PCB header is suitable for demanding industrial, automotive, telecommunications, security, and instrumentation applications. Its friction locking mechanism secures mating connections and prevents accidental disconnection due to vibration or handling.

This Molex PicoBlade series header is designed for straightforward soldering onto PCB surfaces with solder tails measuring 0.6 mm, enabling robust and lasting joints. The shrouded design enhances protection against contact damage and improves connection reliability.

Supports up to 1 Amp current for reliable performance. Compact single-row layout with a 1.25 mm pitch saves PCB space. Constructed with durable nylon housing for impact resistance. Features tin-plated phosphor bronze contacts for excellent conductivity.

Designed for surface mount installation on PCBs for easy integration. Operates in temperatures from -40°C to 105°C for harsh environments. Shrouded design protects contacts and ensures secure mating connection. Ideal for vehicle navigation, telecommunications, security, and measuring devices.

Provides wire-to-board connection with friction locking to prevent accidental unmating.

This product is an excellent choice for engineers and designers requiring compact, reliable, and industry-standard PCB headers. Browse the Electronics & Electricals > Connectors > PCB Header category on EnvMart to explore more options from Molex and other reputable manufacturers.
