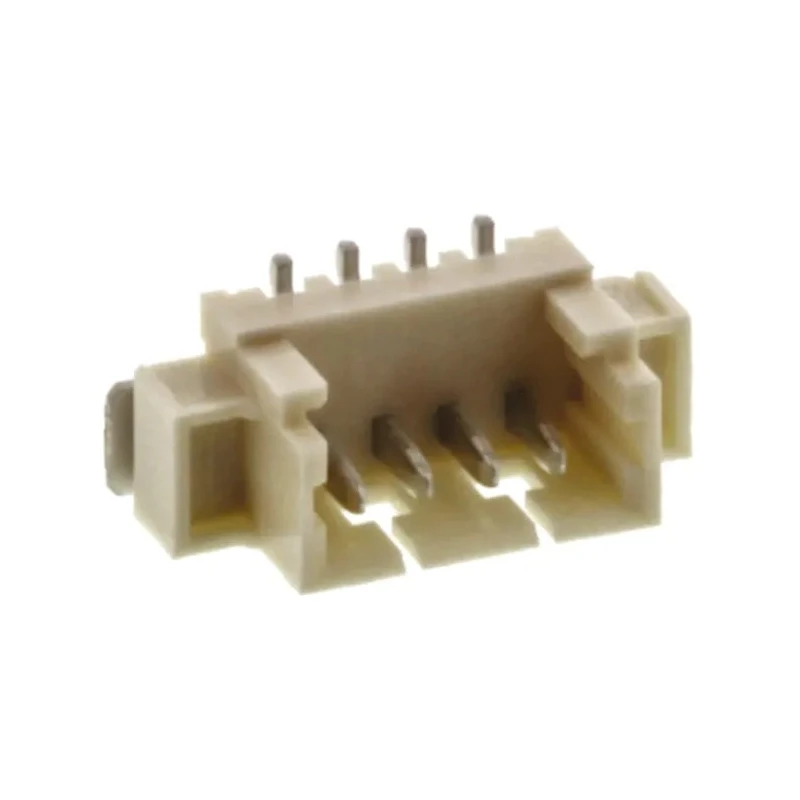

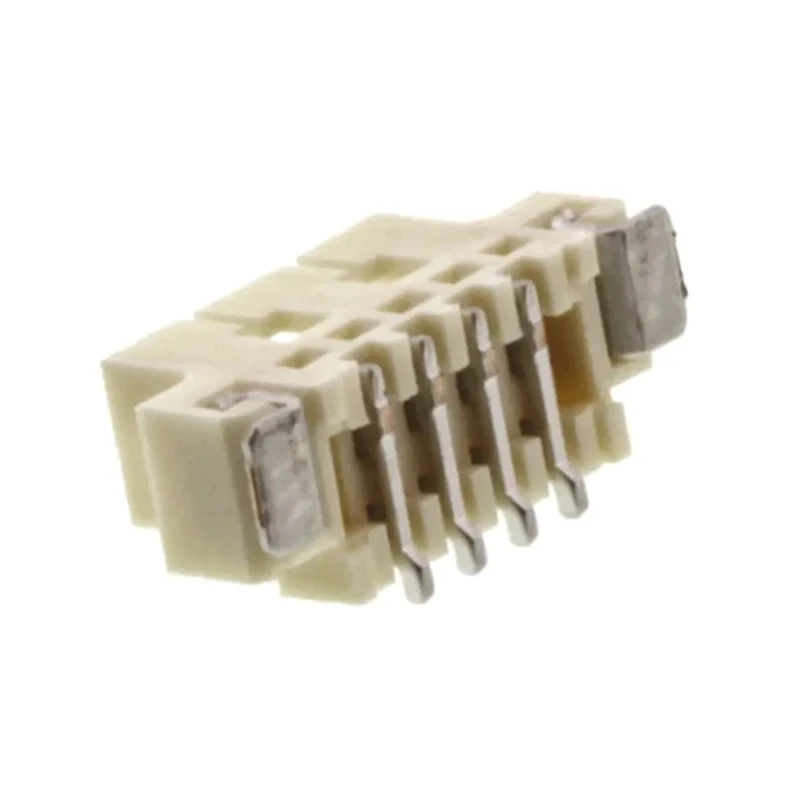

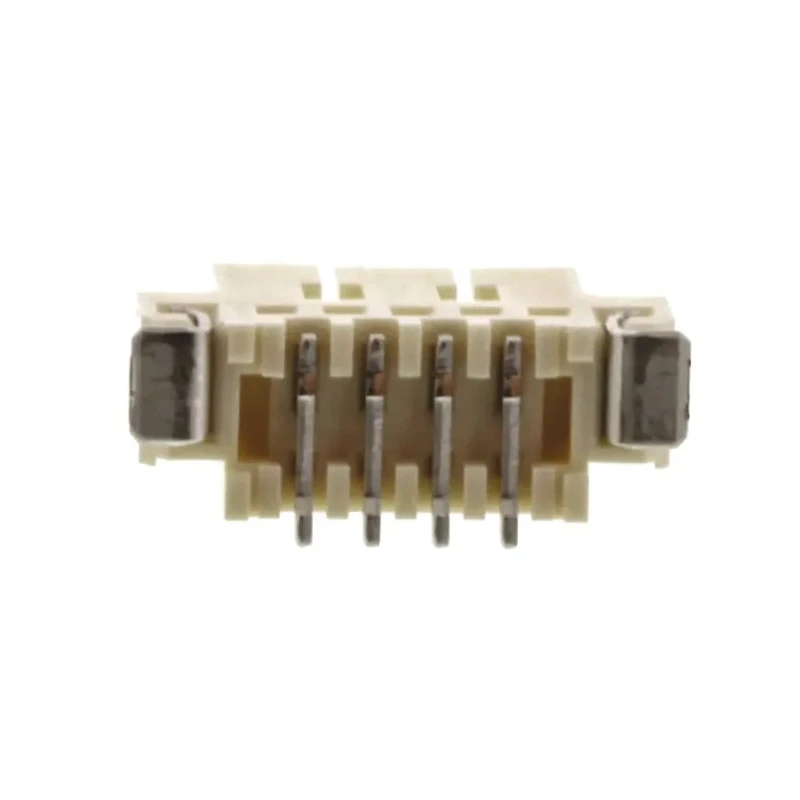

Molex PicoBlade Series Straight Surface PCB Header, 4 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53398-0471
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 0.6mm |
Key Features
- This PCB header has a current rating of 1A suitable for low power applications.
- The nylon housing provides durability and resistance to impact.
- Phosphor bronze contacts with tin plating ensure reliable conductivity and corrosion resistance.
- Designed for surface mount technology, facilitating high-speed signal transmission.
- Operates reliably in a temperature range of -40°C to 105°C.
- Polarised design prevents incorrect mating and assembly errors.
- Compact 1.25 mm pitch allows for PCB space savings of up to 45% compared to standard 2.00 mm systems.
Product Description
Molex 53398-0471 PicoBlade Series straight surface PCB header is a compact, shrouded connector with 4 male contacts arranged in a single row with a 1.25 mm pitch, delivering reliable wire-to-board connections. The nylon housing offers mechanical stability and impact resistance, suitable for challenging operating environments.
This connector supports a current rating of 1A and a voltage rating of 125V, making it ideal for low-power electronic circuits. The phosphor bronze contacts plated with tin provide excellent electrical conductivity and prevent oxidation, delivering long-term durability and consistent performance.
The header is designed for surface mount technology (SMT), supporting efficient and secure soldering to printed circuit boards (PCBs), with solder tabs that provide strain relief and prevent solder joint failures from mechanical stress or vibration.
Wide operating temperature range from -40°C to 105°C enables use in demanding conditions across industrial, commercial, and medical equipment manufacturing sectors. Its polarised design ensures correct mating with matching connectors, avoiding assembly mistakes and improving reliability.
The small 1.25 mm pitch allows PCB space savings up to 45% compared to 2.00 mm pitch systems, facilitating compact electronic device design. Applications include consumer electronics, medical instrumentation, office equipment, and alternative energy generation systems.
This PicoBlade header is partially shrouded to reduce electromagnetic interference and enhance signal integrity. It features a friction locking mechanism by engaging locking windows with latching ramps from crimp housings to prevent accidental disconnection.
Lightweight design, approximately 0.17 grams, simplifies handling and assembly. Offers durable, reliable wire-to-board interconnection for high-density PCB layouts. Supports standard solder termination for ease of installation.
The Molex 53398-0471 PicoBlade series is a trusted solution for compact and reliable PCB interconnects across various sectors. For more options and technical details, explore the PCB Header category on EnvMart.
