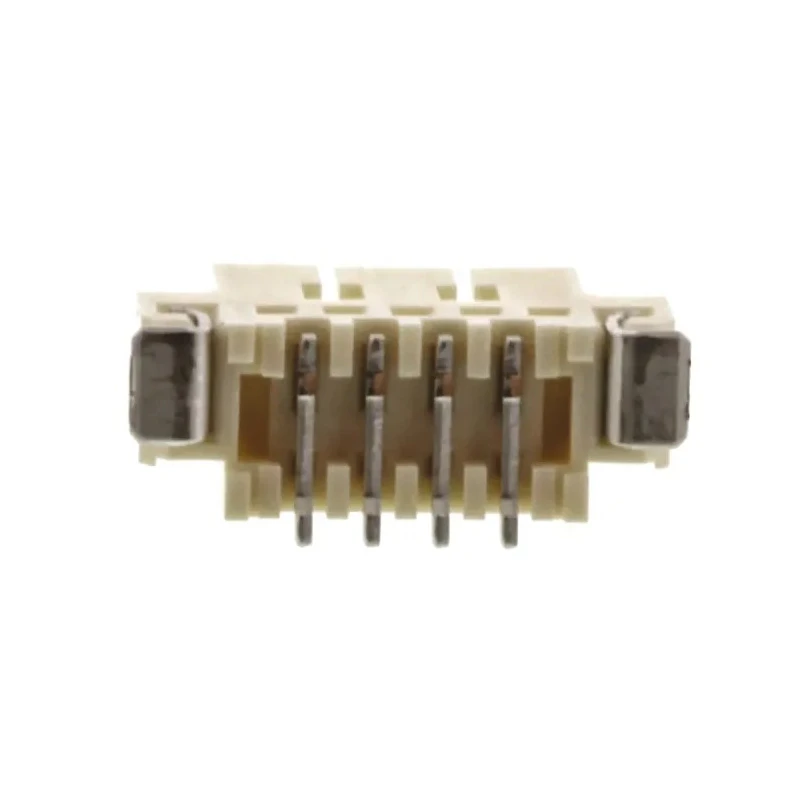

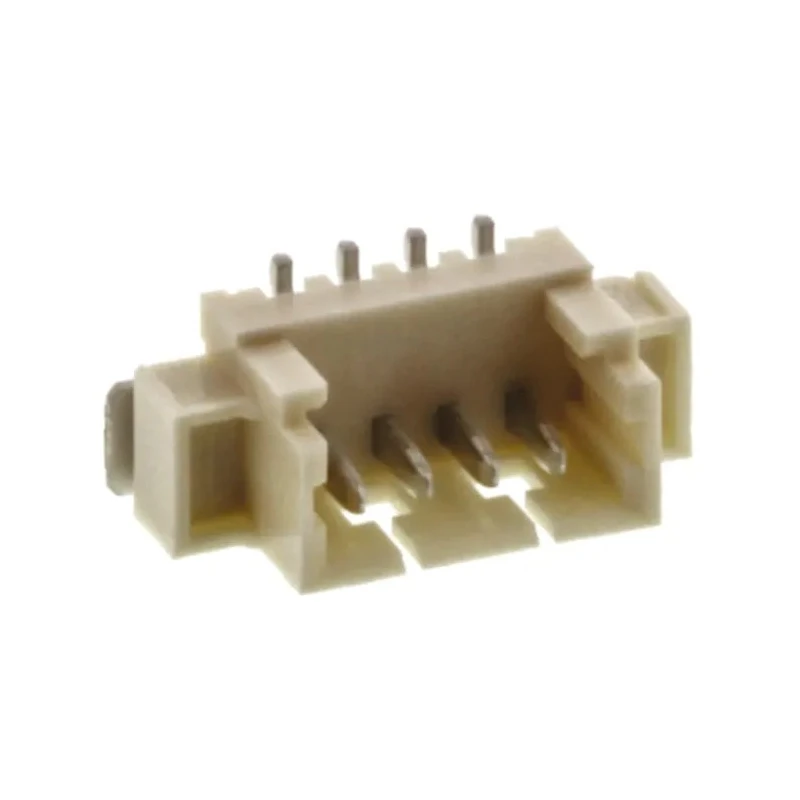

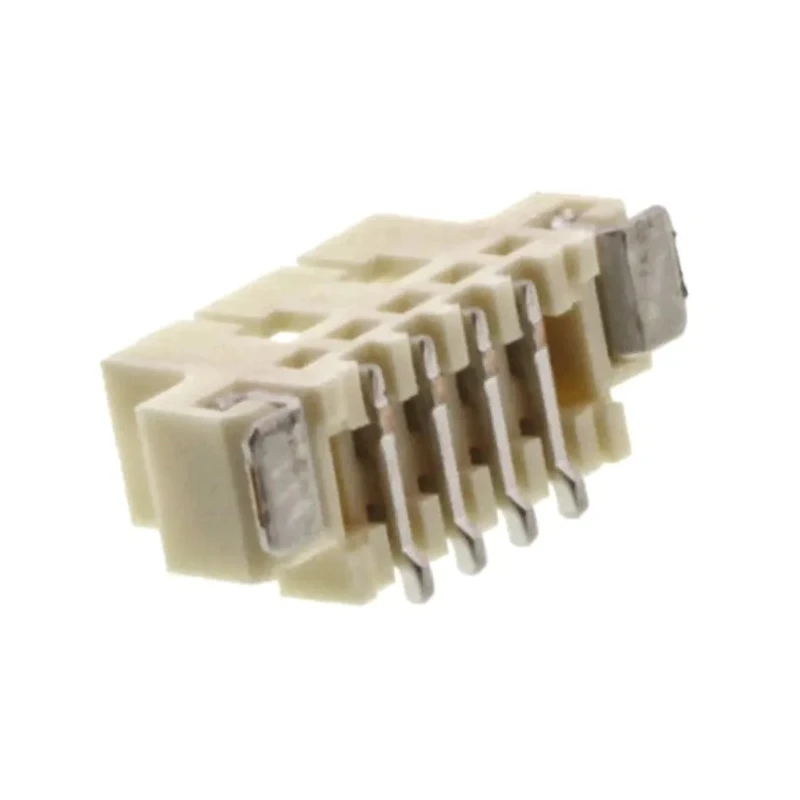

Molex PicoBlade Series Straight Surface PCB Header, 4 Contacts, 1.25 mm Pitch, 1 Row, Shrouded, 1A Current, 125V 53398-0471

Molex 53398-0471 PicoBlade Series Straight Surface PCB Header is a technically advanced wire-to-board connector designed to facilitate secure, high-efficiency connections on printed circuit boards. Featuring four male contacts with a precise 1.25 mm pitch in a single row, this shrouded header supports current ratings up to 1 ampere and voltage ratings up to 125 volts, making it suitable for various electronic applications.

The housing is crafted from high-quality nylon that provides durability and excellent impact resistance, ensuring the header’s integrity in industrial and commercial environments. The phosphor bronze contacts are plated with tin to offer excellent electrical conductivity while protecting against oxidation and corrosion for long-term reliability.

Designed for surface mounting, this PCB header supports high-speed signal transmission, contributing to efficient electronic circuit performance. Its operating temperature ranges from -40°C to 105°C, enabling it to function reliably in harsh temperature conditions.

This header’s partially shrouded and polarised design prevents incorrect mating and orientation, simplifying assembly processes and improving overall device safety. It provides a compact footprint with a 1.25 mm pitch, allowing up to 45% PCB space savings compared to larger pitch connectors.

Weighing approximately 0.17 grams, the header is lightweight and easy to handle during assembly with manual or automated pick-and-place equipment. Typical applications include consumer electronics, medical manufacturing equipment, alternative energy devices, offices, and commercial operations.

Constructed with durable nylon housing providing excellent impact resistance. Phosphor bronze contacts with tin plating ensure high conductivity and corrosion resistance. Rated for operation from -40°C up to 105°C to suit demanding environments.

Surface mount type facilitating high-speed signal transmission on PCBs. Polarised shrouded design prevents mismating for easy assembly. Compact 1.25 mm pitch saves PCB space effectively. Lightweight at approximately 0.17 grams for effortless handling.

Ideal for consumer electronics, medical equipment, and alternative energy applications. Explore Molex PCB Header products available through EnvMart for quality interconnect solutions suited for industrial, laboratory, manufacturing, and electronics assembly needs.
