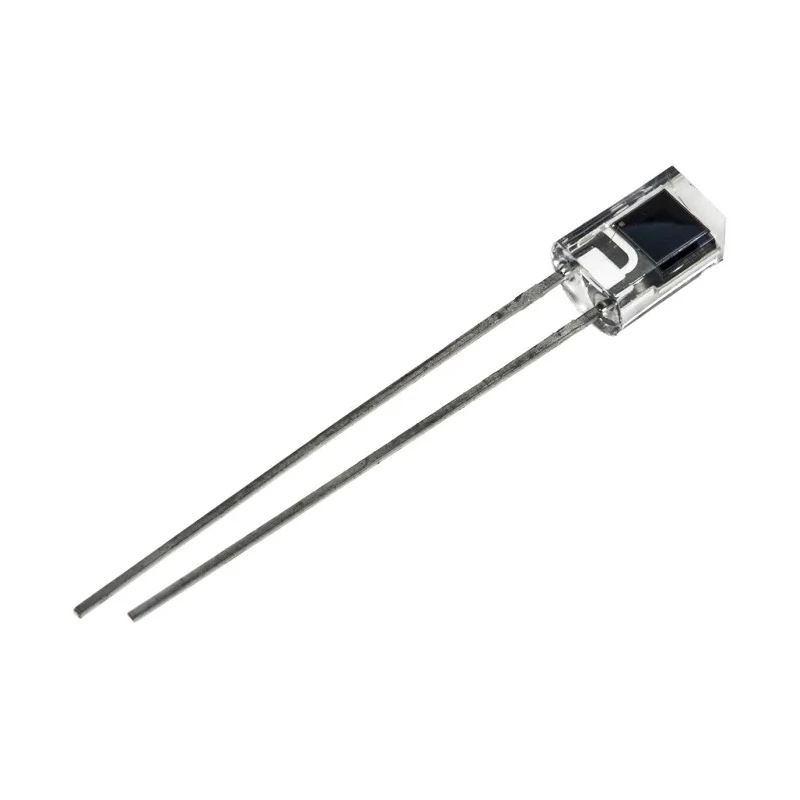

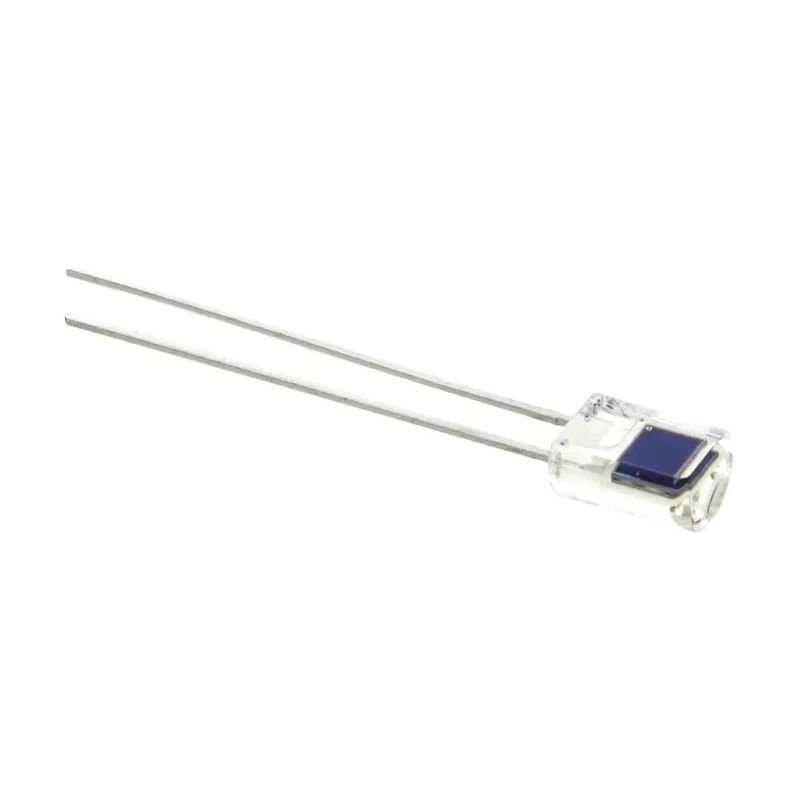

ams OSRAM Visible Light, Infrared Photodiode, 60 ° Acceptance Angle, Through Hole T-1 3/4 SFH 206 K
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Height | 6.9mm |
| Length | 5.1mm |
| Model | SFH 206 K |
| Packaging | Tape & Reel |
| Width | 4.1mm |
| Mount Type | Through Hole |
| Series | SFH |
| Short Circuit Current | 80μA |
| Maximum Operating Temperature | 85°C |
| Package Type | T-1 3/4 |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Dark Current | 5nA |
| Open Circuit Voltage | 350mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 0.02μs |
| Automotive Standard | AEC-Q101 |
| Wavelength of Peak Sensitivity | 850nm |
| Spectrums Detected | Visible Light, Infrared |
| Breakdown Voltage | 20V |
| Minimum Wavelength Detected | 400nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 60 ° |
| Radiant sensitive area | 2.65 mm² |
| Acceptance angle | 120° |
Key Features
- Detects both visible light and infrared spectrums for broad optical sensitivity.
- Features a 5.1 mm length and 4.1 mm width in a clear plastic package.
- Operates reliably between -40°C and 85°C for diverse environments.
- Through-hole mounting ensures firm installation in PCB assemblies.
- Fast switching times with typical rise and fall times of 0.02 μs each.
- Offers radiant sensitive area of 2.65 mm² for effective light capture.
- Complies with RoHS and automotive AEC-Q101 standards for quality and safety.
- Utilized in photointerrupters, industrial electronics, and computer-controlled flash circuits.
Product Description
ams OSRAM SFH 206 K Visible Light, Infrared Photodiode is a high-performance PIN photodiode designed for reliable and precise light detection in industrial and electronic applications. It features a 60° acceptance angle in a through-hole T-1 3/4 package, enabling efficient light capture within its spectral range of 400 nm to 1100 nm, peaking at 850 nm wavelength.
This photodiode is housed in a 5 mm clear LED plastic case suitable for through-hole mounting on circuit boards. Its robust operating temperature range from -40°C to 85°C ensures compatibility with various industrial environments. The device's fast typical rise and fall times of 0.02 microseconds allow for quick response times in switching and detection applications.
Key features include a radiant sensitive area of 2.65 mm² and low dark current of 5 nA, contributing to its efficiency in photointerrupters, industrial electronics, computer-controlled flash circuits, and other control or drive circuit applications. The forward polarity design and 2-pin layout ensure straightforward integration into electronic assemblies.
Detects visible light and infrared spectra effectively. Through-hole mounting enables durable PCB installation. Fast switching characteristics support dynamic applications. Compliant with RoHS and automotive AEC-Q101 standards for reliability.
Low dark current enhances sensitivity and signal quality. Radiant sensitive area optimized for accurate light measurements. Wide operating temperature range suitable for industrial use. Compact package size fits standard applications efficiently.
Commonly used in photointerrupters and precision electronics.
This photodiode is ideal for industrial, electronic manufacturing, computer hardware, and automotive sectors requiring precise optical sensing components. Its combination of spectral sensitivity and fast response makes it a versatile choice for numerous optoelectronic systems.
Explore ams OSRAM products for reliable Photodiodes and related optoelectronic components, meeting industrial standards and delivering consistent performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can detect wavelengths from 400 nm to 1100 nm, with peak sensitivity at 850 nm.
The acceptance angle of this photodiode is 120°, allowing for efficient light capture.
It has a length of 5.1 mm, a width of 4.1 mm, and a height of 6.9 mm.
The photodiode operates reliably between -40°C and 85°C, making it suitable for diverse environments.
It features typical rise and fall times of 0.02 microseconds each, supporting fast response applications.
The radiant sensitive area is 2.65 mm², which enhances its light detection capabilities.
This model utilizes through-hole mounting, ensuring a firm installation on PCB assemblies.
The dark current is specified at 5 nA, contributing to its efficiency in light detection.
It complies with RoHS and automotive AEC-Q101 standards, ensuring quality and safety.
The short circuit current rating is 80 μA, indicating its capability in various applications.
It is commonly utilized in photointerrupters, industrial electronics, and computer-controlled flash circuits.
The photodiode is packaged in a T-1 3/4 configuration, suitable for through-hole mounting.
