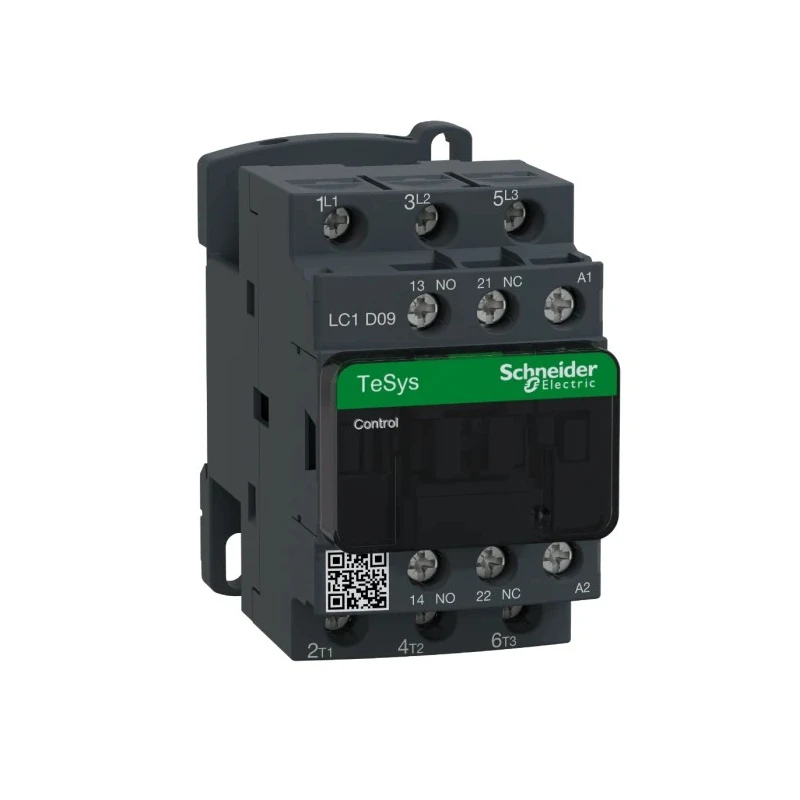

Schneider Electric TeSys D Contactor, 42V AC Coil, 3-Pole 9A 2.2kW 690V AC/DC LC1D09D7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D09D7 |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC 61095 |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 42V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 42V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 42V AC coil suitable for 50/60Hz frequency operation.
- Features 3 normally open poles and built-in 1 NO plus 1 NC auxiliary contacts, including a mirror certified NC contact.
- Rated for up to 2.2 kW power at 690V AC/DC contact voltage.
- Compact DIN rail mounting design with screw clamp terminals for easy installation.
- Operates reliably in temperatures from -40°C to 60°C with a high switching rate of up to 3600 cycles per hour.
- Meets multiple international standards including IEC 61095 and is Green Premium compliant with RoHS/REACh.
- Suitable for motor control and resistive load applications with a maximum operational current of 9A.
- Designed for demanding industrial environments featuring high durability and reliability.
Product Description
Schneider Electric LC1D09D7 TeSys D Contactor is designed for industrial automation and motor control applications, providing robust and reliable switching for resistive and inductive loads. It features a 42V AC coil rated to operate at 50/60Hz, with a contact current capacity of 9A and a power rating of 2.2 kW at 690V AC/DC, making it suitable for moderate load requirements.
This contactor includes three normally open poles (3NO) along with one normally open and one normally closed auxiliary contact, the latter being mirror certified for enhanced safety and compliance. The device is built for DIN rail mounting, equipped with IP20 finger-safe screw clamp terminals marked for both North American and international connections. Its compact dimensions (77mm x 45mm x 86mm) allow for space-saving installation in control panels.
Operating temperature ranges from -40°C to 60°C and a high mechanical endurance supporting up to 3600 cycles per hour ensures dependability in continuous industrial operations. The contactor is certified to IEC 61095 standards and complies with international certifications (UL, CSA, CCC, EAC, Marine), supporting wide-ranging industrial applications including HVAC, manufacturing, water treatment, and motor starter systems.
The Schneider Electric TeSys D range is noted for combining long mechanical and electrical life cycles with easy integration into control systems. This LC1D09D7 model is ideal for applications requiring efficient motor control, resistive load switching, and high reliability under demanding conditions.
42V AC coil voltage for consistent control circuit operation. Three poles with 3NO normal state configuration for flexible motor control. One NO plus one NC auxiliary contacts with mirror certification of NC. Screw clamp terminals optimize wiring convenience and security.
Compact size and DIN rail mount facilitate integration in control panel setups. Certified to IEC 61095 and multiple international standards ensuring quality and safety compliance. Robust construction supports demanding industrial environments and high operation cycles.
Compliant with RoHS/REACh for environmental sustainability. Country of Origin: France. Explore the Automation & Control Gear category at EnvMart for a wide range of Contactors and motor control products from top brands like Schneider Electric.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D09D7 contactor has a power rating of 2.2 kW at a contact voltage of 690V AC/DC.
This model supports a maximum operational current of 9A.
It operates with a coil voltage of 42V AC.
The contactor features three normally open poles (3NO).
The dimensions of the LC1D09D7 are 77mm in length, 45mm in width, and 86mm in depth.
It operates reliably within a temperature range of -40°C to 60°C.
This model is designed for DIN rail mounting.
It includes one normally open and one normally closed auxiliary contact, with the NC contact being mirror certified.
The LC1D09D7 is certified to IEC 61095 and complies with multiple international standards.
It is suitable for motor control and resistive load applications.
It features IP20 finger-safe screw clamp terminals, marked for both North American and international connections.
The contactor can operate at a high switching rate of up to 3600 cycles per hour.
