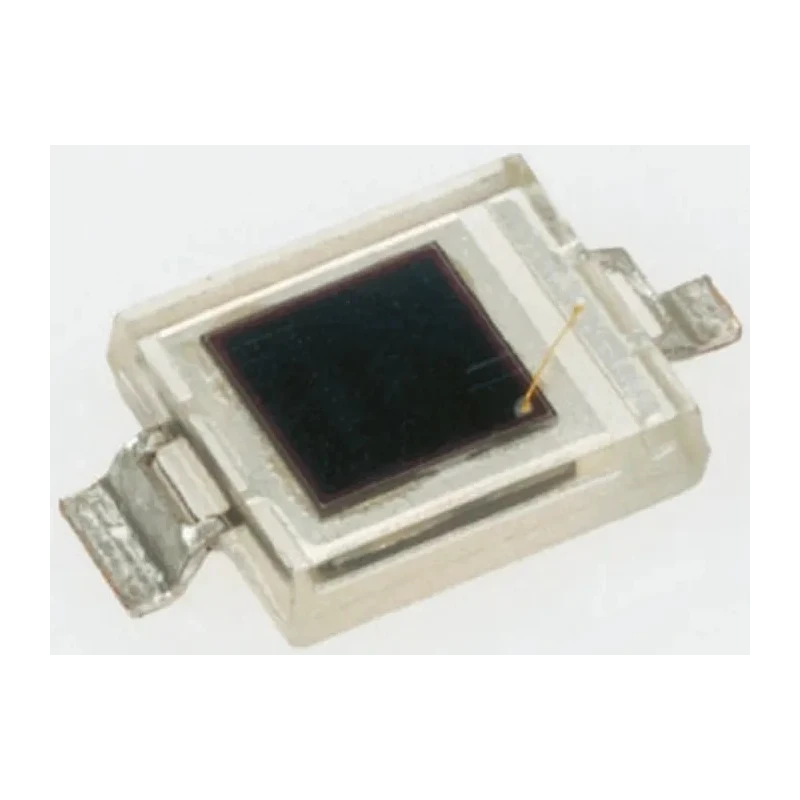

ams OSRAM Photodiode Visible Light, Infrared, 60° Half Sensitivity Angle, Surface Mount DIP Package SFH 2430-Z

ams OSRAM SFH 2430-Z is a high-performance photodiode designed for detecting visible light and infrared spectra with Vlambda characteristics that mimic the human eye's sensitivity. Packaged in a compact surface mount DIP plastic package with a 60° half sensitivity angle, it offers a precise sensing solution for ambient light applications.

This photodiode operates effectively across a spectral range from 400nm to 900nm, peaking at 570nm wavelength sensitivity. It features rapid electrical response with typical rise and fall times of 40 nanoseconds, making it suitable for dynamic sensing environments.

The SFH 2430-Z is ideal for integration in ambient light sensors found in mobile phones, rain sensors, and air conditioning systems, enabling automatic adjustments based on environmental lighting conditions. It operates reliably within a temperature range of -40°C to 85°C, ensuring durability across varied industrial and commercial environments.

Mechanical dimensions measure 4.5mm in length, 4mm in width, and 1.2mm in height, facilitating compact PCB layouts. Its electrical characteristics include a maximum breakdown voltage of 20V, an open circuit voltage up to 350mV, and a low dark current of 5nA to maintain sensing accuracy in low light.

The device is non-amplified, has 2 pins, and meets RoHS certification requirements for environmental compliance. Its surface mount DIP package supports automated installation processes, improving production efficiency.

Designed to resemble human eye sensitivity with Vlambda characteristics. Operates over a spectrum from 400nm to 900nm with peak sensitivity at 570nm. Typical rise and fall time of 40ns for fast response. Suitable for ambient light sensing in mobile phones, rain sensors, and HVAC regulation.

Compact size of 4.5 x 4 x 1.2 mm enhances device integration. Operating temperature range from -40°C to 85°C for robustness. Non-amplified photodiode in a surface mount DIP plastic package. Maximum breakdown voltage of 20V with open circuit voltage of 350mV.

Low dark current of 5nA facilitates accurate low light detection. RoHS compliant for environmental safety.

Widely used in industrial, commercial, and consumer electronics for reliable light detection and sensing applications. Explore the Electronics Components > Photodiode category at EnvMart for similar high-quality products from ams OSRAM.
