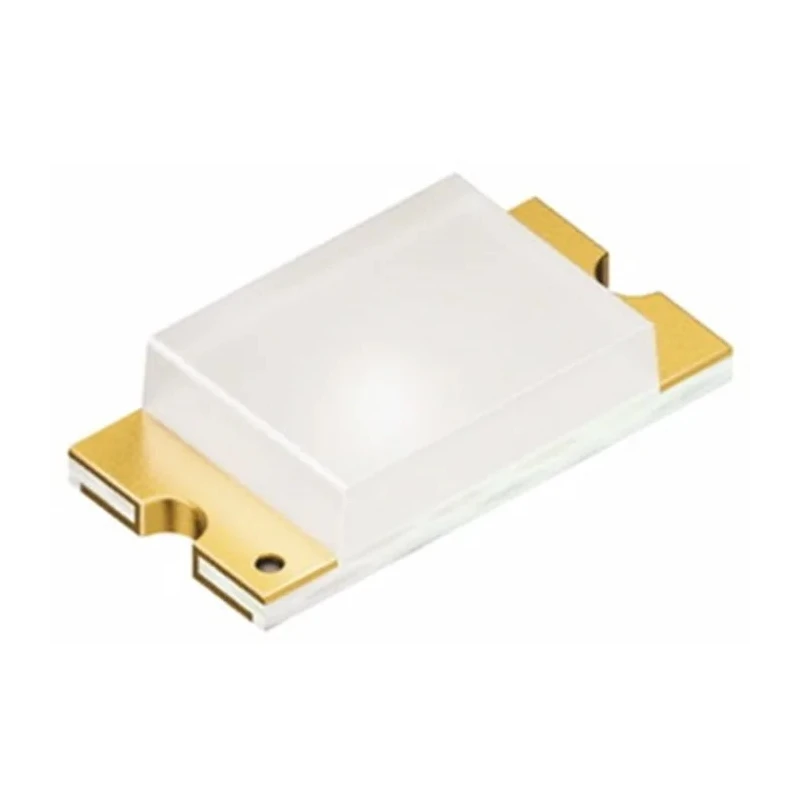

ams OSRAM 2.5 V Red LED 0603 Surface CHIP LED 0603 LS Q976-NR-1

Name: ams OSRAM 2.5 V Red LED 0603 Surface CHIP LED 0603 LS Q976-NR-1
Brand: ams OSRAM
SKU: 343857
Price: 0.06 USD
Availability: InStock



Category LED Brand ams OSRAM Condition New

Specifications

Country of Origin	India
Brand	ams OSRAM
Dimensions	1.6 x 0.8 mm
Model	LS Q976-NR-1
Packaging	Tape & Reel
Mount Type	Surface
Series	CHIP LED 0603
Maximum forward current	25mA
Viewing angle	160 °
Package Type	0603
Standards/Approvals	IEC 62707
LED Colour	Red
Dominant Wavelength	633nm
Forward Voltage	2.5V
Number of Pins	2
LED Luminosity	180 mcd
Lens Dimensions	1.6 x 0.8 x 0.8 mm
Lens Shape	Rectangular
Lens Finish	Black Package, Clear, Clear Resin, White, Diffused, Whitish Appearance
LED Luminous Flux	0.33 lm
Osram Opto2.5 V Red LED SMD, LSQ976NR1020R18Brand	OSRAM Opto Semiconductors
Broadcom1.9 V Red LED 1608 (0603) SMD, HSMC-C190Brand	Broadcom
Osram Opto2.3 V Red LED 1608 (0603) SMD, CHIPLED 0603 LR Q396Brand	OSRAM Opto Semiconductors

Key Features

Operates at a forward voltage of 2.5 V with a maximum current of 25 mA.
Compact rectangular 0603 package with dimensions 1.6 x 0.8 x 0.8 mm.
Surface mount type designed for PCB integration.
Delivering luminous flux of 0.33 lm and 180 mcd brightness.
Viewing angle of 160 degrees for wide light dispersion.
Adheres to IEC 62707 standards for reliability.
Available in tape & reel packaging for ease of automated assembly.
Dominant wavelength of 633 nm ensuring a pure red light emission.

Product Description

ams OSRAM LS Q976-NR-1 is a high-quality red LED in a 0603 surface mount CHIP LED package, designed to deliver efficient illumination with a low forward voltage of 2.5 V and a maximum forward current of 25 mA. Its compact rectangular dimensions of 1.6 x 0.8 x 0.8 mm make it ideal for space-constrained electronic applications.

Featuring a wide viewing angle of 160 degrees and a luminous flux of 0.33 lumens with a brightness of 180 mcd, it provides excellent visibility for indicator and backlighting purposes. This LED conforms to IEC 62707 standards, assuring quality and consistency in operation.

The LS Q976-NR-1 series is particularly suitable for use in key and LCD backlighting, display indicators, and other applications requiring a reliable red LED with a clear lens finish and surface mount capability. The tape and reel packaging supports streamlined automated assembly in manufacturing environments.

The product is a genuine ams OSRAM component known for durability and consistent performance in various electronics, automotive indicator lights, and communication devices. Compact 0603 rectangular package measuring 1.6 x 0.8 x 0.8 mm.

Maximum forward current of 25 mA for optimized energy consumption. Red LED with 633 nm dominant wavelength for vivid color output. Surface mount design suitable for modern PCB layouts. Suitable for industrial, automotive, consumer electronics, and communication device lighting applications.

Complies with IEC 62707 quality standards. Convenient tape & reel packaging for manufacturing efficiency.

This ams OSRAM LED model LS Q976-NR-1 is a trusted choice for engineers and manufacturers requiring reliable, low power, bright red LED solutions in compact form factors. Explore more in the Electronics & Electricals category at EnvMart for related LED components and lighting solutions.
