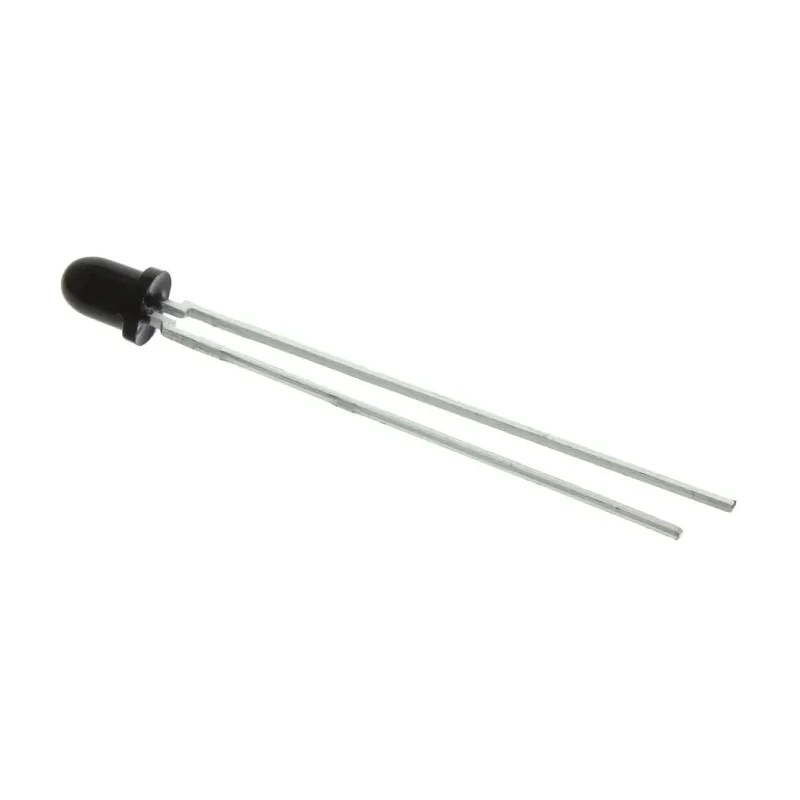

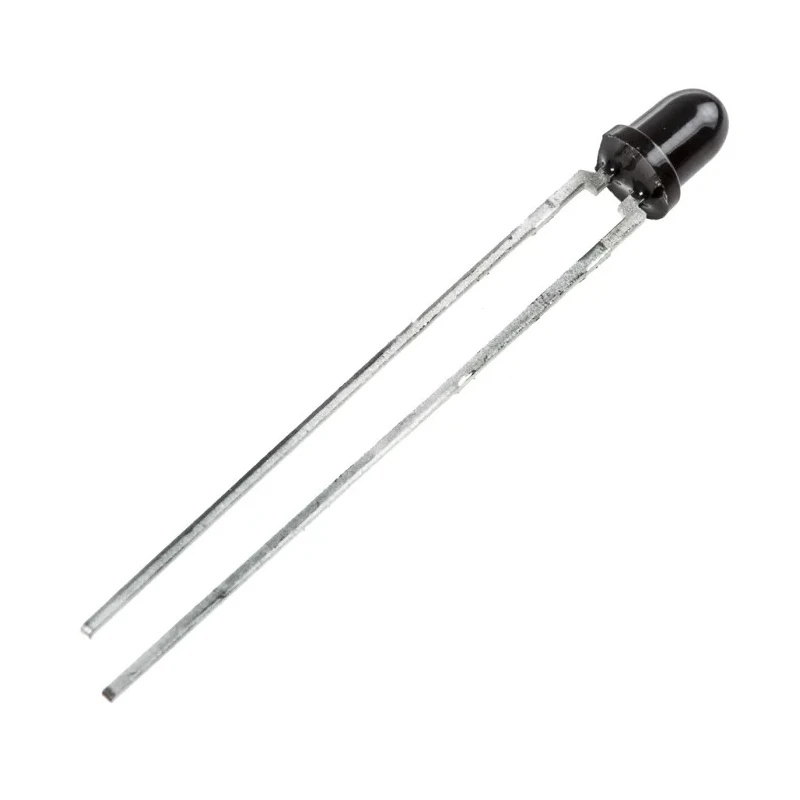

ams OSRAM Infrared Photodiode Through Hole T-1 34° Angle of Half Sensitivity SFH 229 FA

ams OSRAM SFH 229 FA is a high-performance Infrared Photodiode housed in a standard T-1 (3 mm) through-hole package. It features a radiant sensitive area of 0.56 x 0.56 mm² and is optimized for detecting infrared light with peak sensitivity at 900 nm wavelength. The photodiode offers a narrow angle of half sensitivity of 34°, making it well-suited for targeted infrared sensing applications.

This photodiode supports fast switching speeds with typical rise and fall times of 10 ns, enabling rapid response in photointerrupter and industrial control circuits. Its operating temperature range from -40°C to 85°C ensures dependable performance in demanding environments.

The device delivers a short circuit current of 9 μA and a minimal dark current of 5 nA, enhancing signal fidelity. It has a forward polarity configuration with a breakdown voltage of 20 V and an open circuit voltage of 350 mV, supporting stable operation within specified electrical limits.

Product is supplied in tape and reel packaging, facilitating automated insertion in manufacturing processes. The SFH 229 FA complies with RoHS standards for environmental safety. This infrared photodiode is ideal for use in photointerrupters, industrial electronics, control systems, and drive circuits in electronic and industrial applications.

Detects infrared spectrum with peak sensitivity at 900 nm. Compact T-1 package with 3 mm diameter for through-hole mounting. Fast switching times for responsive electronic control. Wide operating temperature range suitable for harsh environments.

Low dark current and reliable electrical characteristics. RoHS compliant for environmentally conscious applications. Explore more electronic components like Photodiodes and optoelectronic devices in the Electronics & Electricals category at EnvMart for reliable industrial and commercial use.
