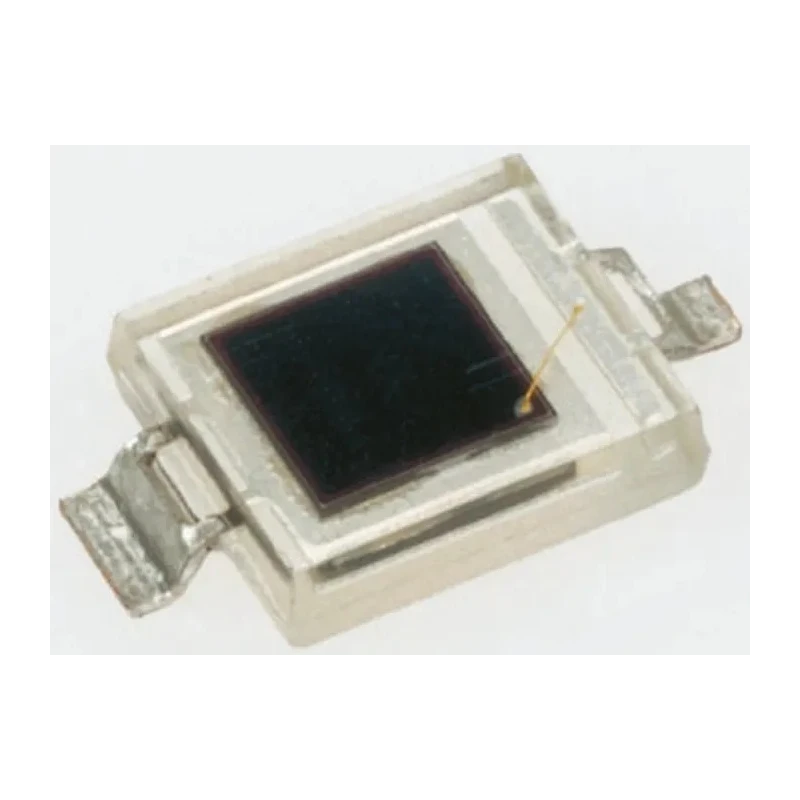

ams OSRAM Photodiode Visible Light, Infrared, 570nm Peak Sensitivity, 60° Angle, Surface DIP Package SFH 2430-Z

ams OSRAM SFH 2430-Z photodiode is a high-performance silicon photodiode characterized by its Vlambda sensitivity curve that closely matches human eye response. It detects visible light and infrared wavelengths, peaking at 570nm, making it ideal for ambient lighting sensing and related applications.

Housed in a surface mount DIP plastic package, this photodiode enables easy integration into compact and automated electronic assemblies. It offers excellent reliability over an operating temperature range of -40°C to +85°C.

The device features a 60° angle of half sensitivity, ensuring directional light detection with minimized background interference. Typical rise and fall times of 40ns suit fast switching and sensor circuits.

Electrical attributes include a short circuit current of 71μA and a low dark current of just 5nA, which increases sensor accuracy and sensitivity in low ambient conditions. The photodiode supports wavelengths from 400nm to 900nm, encompassing visible and near-infrared spectral ranges.

Its forward polarity design simplifies connection in electronic systems while the device complies with RoHS standards for environmental safety.

This photodiode is widely suited for industrial and commercial applications including mobile phone ambient light sensors, rain sensors, air conditioning regulation, and other optical sensing tasks in automotive electronics, manufacturing, HVAC systems, and laboratory instrumentation.

Features a 60° angle of half sensitivity for precise light detection. Surface mount DIP package suitable for automated assembly processes. Operates reliably from -40°C to 85°C ambient temperature. Low dark current of 5nA ensures high signal-to-noise ratio.

Typical rise and fall times of 40ns support fast response applications. Short circuit current rating of 71μA enables accurate sensor outputs. Maximum wavelength detection range extends from 400nm to 900nm. Built with RoHS compliant materials ensuring environmental safety.

Forward polarity design allows straightforward circuit integration. Molded dimensions maintain a compact footprint for flexible design integration. Discover the extensive range of Photodiodes and optoelectronic components available in the Electronics Components category on EnvMart to find perfect solutions for your projects.
