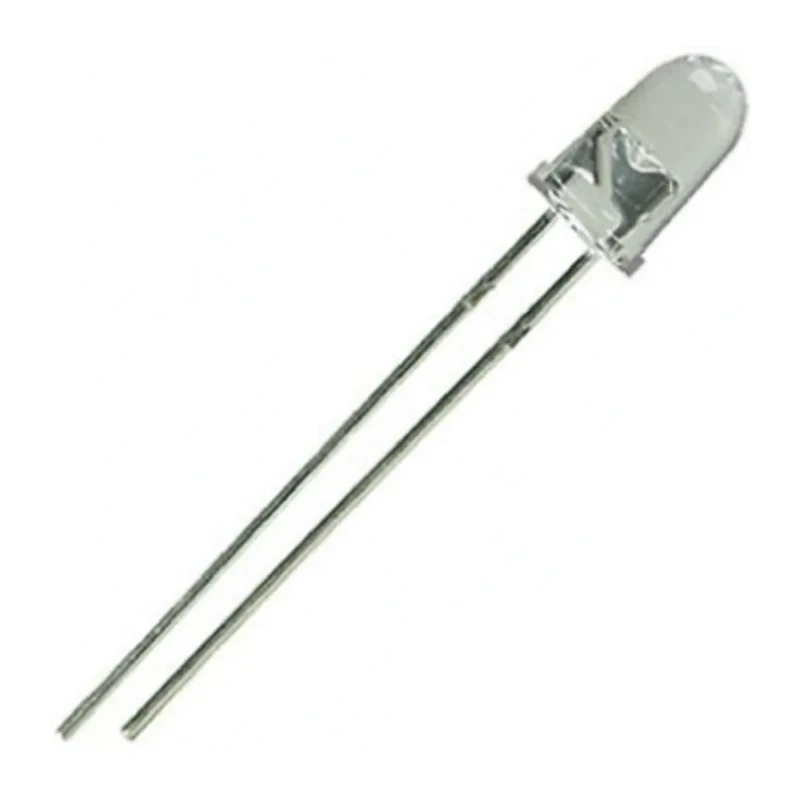

ams OSRAM 50 ° Visible Light, Infrared Phototransistor Through Hole 2-Pin 5 mm (T-1 3/4) Package SFH 300-3/4

The ams OSRAM SFH 300-3/4 phototransistor is engineered for high sensitivity detection of visible and infrared light, suitable for a wide range of electronic and optoelectronic applications. Encased in a robust 5 mm (T-1 3/4) through hole package, this device facilitates easy mounting on printed circuit boards using its two-pin configuration. It features an effective angle of half sensitivity of 50°, allowing accurate directional detection in sensing systems.

Designed for performance, the SFH 300-3/4 operates efficiently over a temperature range from -40°C to 100°C, ensuring reliability in diverse industrial and commercial environments. The phototransistor provides fast switching times, with typical rise and fall times of 10 microseconds, enabling rapid response in signal detection circuits.

The phototransistor exhibits a peak sensitivity at 880 nm wavelength, optimizing infrared light acquisition while also detecting visible light, making it suitable for applications like automatic lighting control, optocoupling, and ambient light sensing. It supports a maximum collector current of 50 mA, with maximum collector emitter and emitter collector voltages of 35V and 7V respectively, delivering robustness for low voltage signal switching.

Compliant with RoHS directives, this component meets environmental safety standards, making it ideal for modern electronic design. Its compact size (Diameter: 5.1 mm, Width: 5.9 mm, Height: 9 mm, Length: 5.9 mm) ensures it integrates seamlessly into compact devices. This Phototransistor is widely applicable in industrial electronics, consumer electronics, automation, and sensor modules.

Detects visible and infrared light for versatile sensing applications. Compact through hole 5 mm package for PCB mounting. Fast switching times with 10 microsecond rise and fall times. Wide operating temperature range from -40°C to 100°C.

Maximum collector current rated at 50 mA for robust operation. Peak wavelength sensitivity at 880 nm for infrared detection. Directional sensitivity with 50° angle of half sensitivity. Compliance with RoHS environmental standards.

Durable with maximum voltages: collector emitter 35V, emitter collector 7V. Ideal for industrial, commercial, and electronic sensor applications. Explore comprehensive lighting and sensor components at EnvMart for your electronic design needs.
