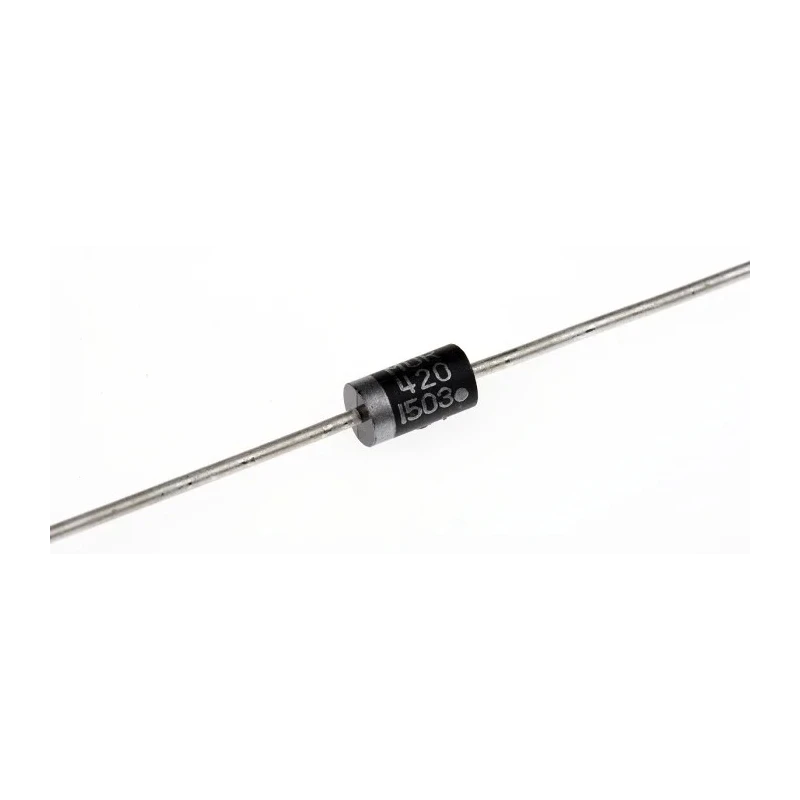

onsemi 200 V 4 A Switching Diode 2-Pin DO-201AD MUR420RLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | onsemi |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | MUR420RLG |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | MUR420 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 4A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 125A |
| Maximum Forward Voltage Vf | 890mV |
| Peak Reverse Recovery Time trr | 35ns |
| onsemi 200V 4A, Silicon Junction Diode, 2-Pin DO-201AD MUR420Brand | ON Semiconductor |
Key Features
- This diode features a peak non-repetitive forward surge current of 125 A.
- It has a maximum forward voltage of 890 mV for efficient conduction.
- The peak reverse recovery time is only 35 ns, suitable for high-speed switching applications.
- Operating temperature ranges from -65°C minimum to 175°C maximum.
- The package dimensions include a length of 9.5 mm and diameter of 5.3 mm.
- The device is configured as a single switching rectifier diode with 2 pins for through-hole mounting.
- It carries no specific automotive standard or certifications but is designed for reliable industrial use.
Product Description
onsemi MUR420RLG is a high-performance switching diode designed to handle peak reverse voltages of 200 V and continuous forward currents up to 4 A. This device comes in a through-hole DO-201AD package with two pins, ensuring easy integration in various power electronics circuits.
The diode features a minimal forward voltage drop of 890 mV, reducing power loss and improving efficiency in rectifier and switching applications. Rapid switching capabilities are assured with a peak reverse recovery time of 35 ns, making it ideal for power supplies, motor controls, and industrial equipment.
Its robust construction supports operation in harsh environments from -65°C up to 175°C, ensuring consistent performance. The diode's compact dimensions include a length of 9.5 mm and diameter of 5.3 mm, facilitating versatile PCB layouts.
This diode provides a peak non-repetitive forward surge current rating of 125 A, enhancing its durability during transient conditions. The 5 μA peak reverse current ensures low leakage for sensitive electronic designs. The MUR420RLG is a single configuration rectifier suitable for high-speed switching circuits.
No specific approvals or automotive certifications apply, focusing on general industrial uses. This diode is a reliable component for electronics manufacturing, prototyping, and repair work in power electronics and semiconductor fields.
Explore more semiconductor Diodes and rectifier components on EnvMart to meet your industrial and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 4 A.
This model can handle a peak reverse repetitive voltage of 200 V.
The diode has a length of 9.5 mm and a diameter of 5.3 mm.
It features a peak non-repetitive forward surge current rating of 125 A.
The peak reverse recovery time is 35 ns, making it suitable for high-speed switching applications.
This diode operates within a temperature range of -65°C to 175°C.
It is designed for through-hole mounting with a 2-pin configuration.
The maximum forward voltage drop is 890 mV.
The peak reverse current is 5 μA, indicating low leakage.
It is suitable for power supplies, motor controls, and industrial equipment due to its rapid switching capabilities.
This diode does not carry specific automotive standards or certifications but is designed for reliable industrial use.
The country of origin for this diode is India.
