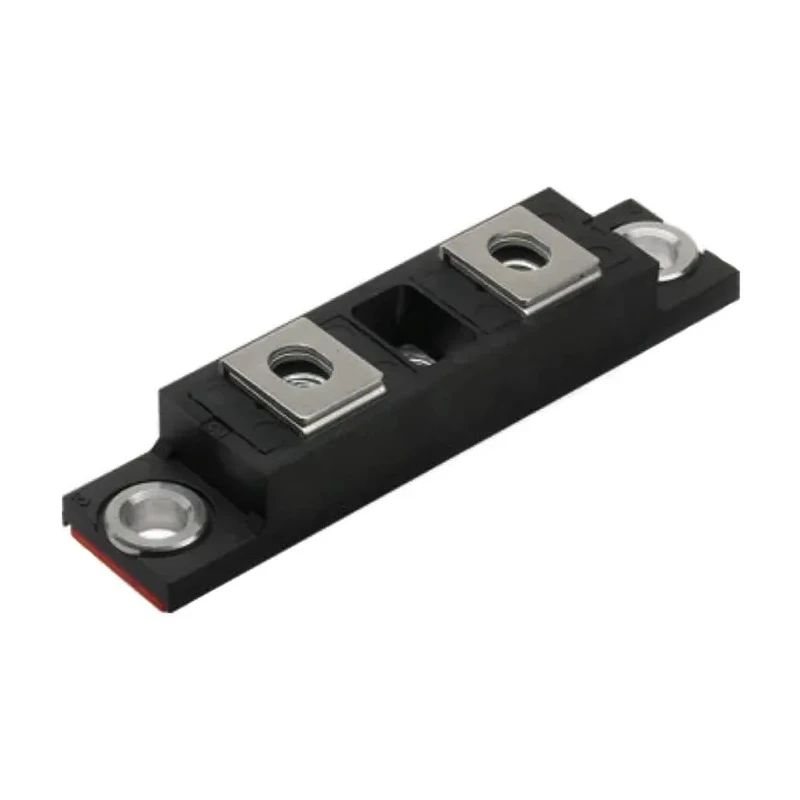

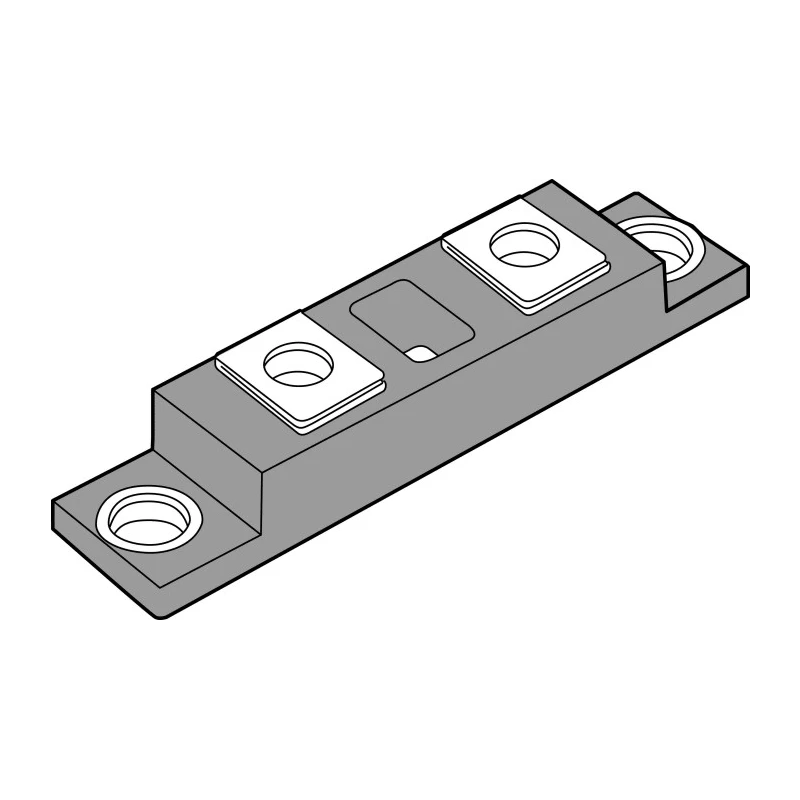

Vishay 50 V 200 A Schottky Diode 3-Pin TO-244 VS-201CNQ050PBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 17.5mm |
| Length | 93mm |
| Model | VS-201CNQ050PBF |
| Width | 21mm |
| Mount Type | Panel |
| Series | VS |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-244 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 200A |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 90mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 16kA |
| Maximum Forward Voltage Vf | 580mV |
Key Features
- This diode features a maximum continuous forward current of 200 A.
- It has a peak reverse repetitive voltage of 50 V for reliable operation.
- The diode configuration is common cathode for efficient circuitry integration.
- The package type is TO-244 with panel mount suitable for industrial use.
- Maximum forward voltage drop of 580 mV minimizes power dissipation.
- Operates across a temperature range from -55°C to 175°C.
- Peak non-repetitive forward surge current capability is 16 kA for surge resilience.
- Pin count of 3 permits straightforward mounting and connection.
Product Description
Vishay VS-201CNQ050PBF is a high-performance Schottky diode rated for 50 V peak reverse voltage and 200 A maximum continuous forward current. Housed in a TO-244 panel mount package, it offers low forward voltage drop of 580 mV and fast switching action suitable for advanced power electronics and industrial uses.
The diode features a common cathode configuration with a pin count of 3, facilitating easy installation in various circuit designs. Its robust surge current capacity of 16 kA ensures reliability under transient conditions. The device operates efficiently over a wide temperature range from -55°C to 175°C, making it suitable for harsh industrial and automotive environments.
The compact dimensions of 93 mm length, 21 mm width, and 17.5 mm height allow it to fit effectively into power modules and assemblies. This Schottky rectifier is ideal for applications requiring low power loss, high efficiency, and fast recovery, including power supplies, converters, and electronic switching equipment.
Vishay Semiconductor's stringent quality and manufacturing standards provide confidence for demanding electronics and industrial applications. The diode does not carry specific automotive certifications but is built to perform reliably in industrial conditions.
This diode features a maximum continuous forward current of 200 A. It has a peak reverse repetitive voltage of 50 V for reliable operation. The diode configuration is common cathode for efficient circuitry integration. The package type is TO-244 with panel mount suitable for industrial use.
Maximum forward voltage drop of 580 mV minimizes power dissipation. Operates across a temperature range from -55°C to 175°C. Peak non-repetitive forward surge current capability is 16 kA for surge resilience. Pin count of 3 permits straightforward mounting and connection.
Dimensions are 93 mm length, 21 mm width, and 17.5 mm height for standardized fitting. This component is ideal for power electronics, switching supplies, and industrial semiconductor applications. Explore more Vishay Semiconductor products and Schottky Diodes at EnvMart for your advanced electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 200 A.
It has a peak reverse repetitive voltage rating of 50 V.
The diode configuration is common cathode, allowing for efficient circuitry integration.
The maximum forward voltage drop is 580 mV, which helps minimize power dissipation.
This diode operates efficiently over a temperature range from -55°C to 175°C.
The peak non-repetitive forward surge current capability is 16 kA.
The dimensions of the TO-244 package are 93 mm in length, 21 mm in width, and 17.5 mm in height.
This diode has a pin count of 3, which allows for straightforward mounting and connection.
The diode is designed for panel mounting, making it suitable for industrial use.
This diode is ideal for applications requiring low power loss, high efficiency, and fast recovery, such as power supplies and converters.
The peak reverse current rating is 90 mA.
This diode belongs to the VS series by Vishay.
