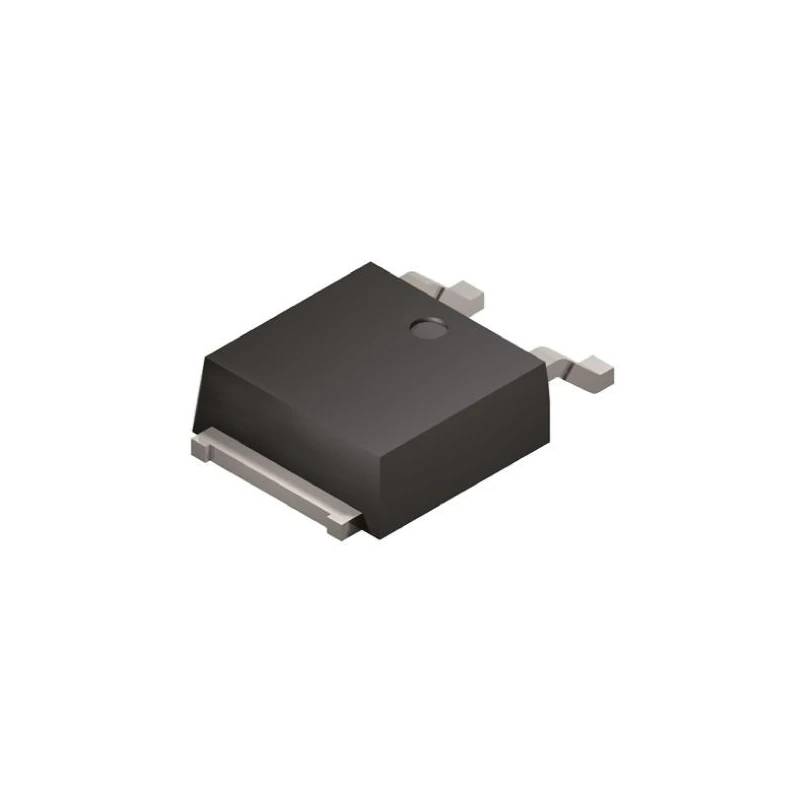

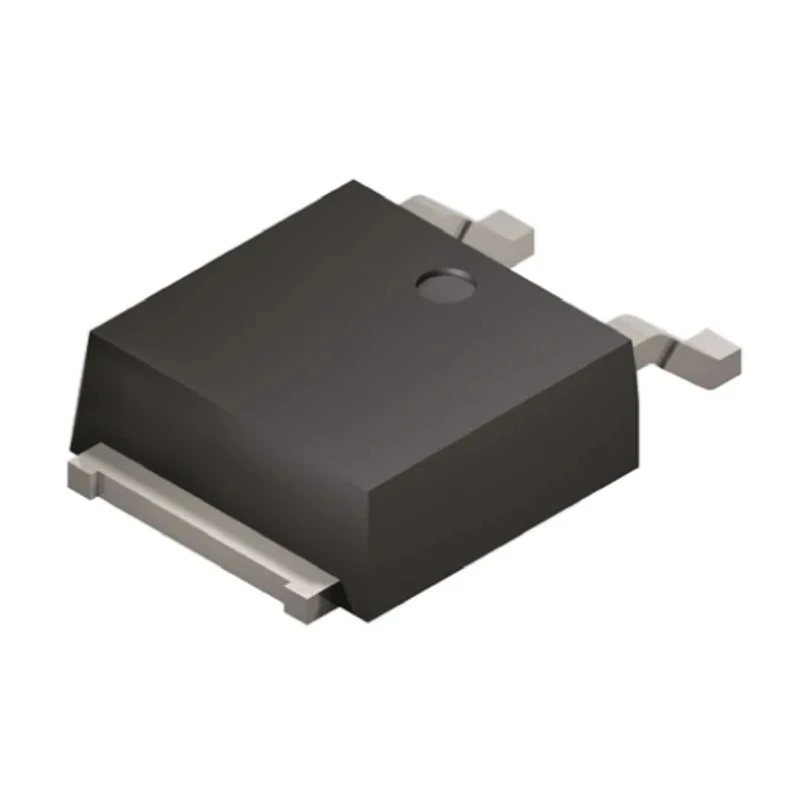

Vishay 30 V 7 A Schottky Diode Surface Mount 3-Pin DPAK VS-6CWQ03FNPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-6CWQ03FNPBF |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 7A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 535A |
| Maximum Forward Voltage Vf | 0.35V |
Key Features
- Surface mount design suitable for compact PCB layouts.
- Low forward voltage drop of 0.35 V for high efficiency.
- Common cathode diode configuration enabling versatile circuit designs.
- Wide operating temperature range from -40°C to 150°C.
- Peak non-repetitive forward surge current of 535 A for transient robustness.
- Designed for fast switching applications with minimal power loss.
- Reliable semiconductor device for power rectification and protection.
Product Description
Vishay VS-6CWQ03FNPBF is a high-performance Schottky diode designed for power electronics requiring fast switching and low forward voltage drop. Housed in a 3-pin DPAK surface mount package (TO-252 type), it offers a maximum continuous forward current of 7 A and a peak reverse repetitive voltage of 30 V.
The Schottky diode's low forward voltage (0.35 V) enables efficient operation with reduced power loss, making it suitable for power rectification and protection circuits in industrial, electronic, and automotive applications. It supports a wide temperature range from -40°C to 150°C ensuring reliability under harsh conditions.
The device features a common cathode configuration and can handle peak non-repetitive forward surge currents of up to 535 A for transient events. Compact dimensions (6.73 mm length, 6.22 mm width, and 2.39 mm height) allow integration in dense PCB assemblies.
Applications include power supplies, DC-DC converters, freewheeling diodes in motors, and reverse polarity protection in electronic systems. This Vishay diode provides robust performance to optimize switching efficiency while minimizing electromagnetic interference.
Surface mount technology for space-saving PCB design. High surge current tolerance offers circuit protection during transient conditions. Wide temperature range enhances device life in demanding environments. Low forward voltage drop reduces thermal dissipation and improves overall system efficiency.
Compact DPAK package facilitates easy automated assembly. Ideal for industrial, automotive, and consumer electronics power circuits. Common cathode Schottky design supports various circuit topologies. Reliable operation with quick recovery times for high-frequency switching.
Choose Vishay for trusted semiconductor diodes delivering excellent performance and durability in power electronic designs. Explore our comprehensive range of Schottky Diodes and rectifiers for your manufacturing and repair needs through EnvMart.
