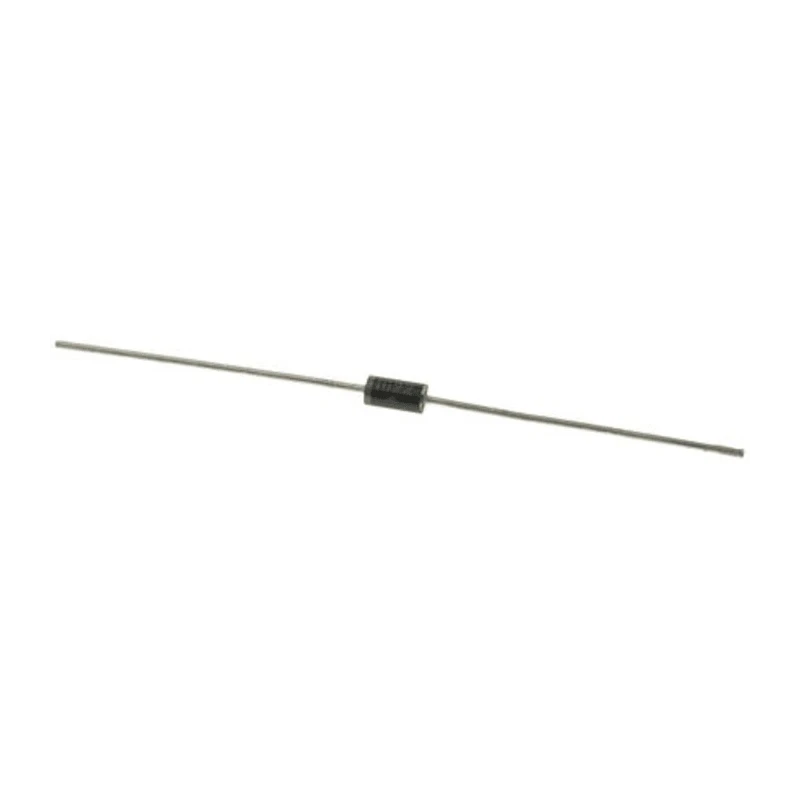

onsemi 30 V 1 A Diode Rectifier Diode 2-Pin DO-41 1N5818RLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N5818RLG |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 0.4 Gram |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | 1N5818 |
| Maximum Operating Temperature | 125°C |
| Case | Epoxy, Molded |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Indicated by Polarity Band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Rectifier Diode |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 550mV |
| Lead Temperature for Soldering Purposes | 260°C Max for 10 Seconds |
| onsemi 30V 1A, Schottky Diode, 2-Pin DO-41 1N5818Brand | ON Semiconductor |
Key Features
- Designed with a through-hole mount type suitable for easy PCB integration.
- Encapsulated in a DO-41 epoxy molded package for durability.
- Supports maximum continuous forward current of 1 A and peak non-repetitive forward surge current of 25 A.
- Features a peak reverse repetitive voltage of 30 V with a maximum forward voltage of 550 mV.
- Operates reliably between -65°C to 125°C ambient temperatures.
- Cathode polarity indicated by a polarity band for correct orientation.
- All external surfaces are corrosion resistant with readily solderable terminal leads.
- Ideal for high frequency inverters, free wheeling diodes, and polarity protection applications.
Product Description
onsemi 1N5818RLG Diode Rectifier DO-41 30 V 1 A is a precision metal-to-silicon Schottky diode designed for effective rectification in electronic circuits. It features an epoxy molded DO-41 package with through-hole mounting, supporting continuous forward current ratings up to 1 A and surge currents up to 25 A. The diode offers robust thermal and electrical performance with a peak reverse voltage of 30 V and a low forward voltage drop of 550 mV.
The device is built with corrosion-resistant external surfaces and solderable leads, ideal for assemblies requiring long-term reliability. Polarity is clearly indicated by a marked cathode band ensuring correct placement during manufacturing. Its operational temperature range from -65°C to 125°C allows utilization in demanding environments.
This diode excels in industrial, laboratory, and commercial applications including high frequency inverters, free wheeling diodes, and polarity protection circuits. Its low stored charge and majority carrier conduction provide low power loss and enhanced efficiency in power electronics.
Through-hole mount type for easy circuit board assembly. DO-41 epoxy molded package ensuring mechanical protection. Supports 1 amp maximum continuous forward current and 25 amp surge current. Low forward voltage of 550 mV minimizes energy loss.
Operating temperature range from -65°C to 125°C for extended reliability. Cathode marked with polarity band for error-free placement. Corrosion-resistant finish and solderable leads for durable connections. Suitable for high frequency inverter and polarity protection applications.
Energy efficient with extremely low forward voltage and low stored charge.
This product is suitable for a broad range of electronics manufacturing and repair needs, particularly where efficient rectification and protection diodes are required. Explore more semiconductor components in the Electronics & Electricals category on EnvMart.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 1 A.
The peak reverse repetitive voltage rating is 30 V.
This model operates reliably between -65°C and 125°C.
The maximum forward voltage drop is 550 mV.
It features a through-hole mount type suitable for easy PCB integration.
The diode is encapsulated in a DO-41 epoxy molded package.
The maximum peak non-repetitive forward surge current is 25 A.
The cathode polarity is indicated by a polarity band for correct orientation.
The gross weight of this diode is 0.4 grams.
All external surfaces are corrosion resistant and the terminal leads are readily solderable.
This diode has a pin count of 2.
It is suitable for high frequency inverters, free wheeling diodes, and polarity protection applications.
