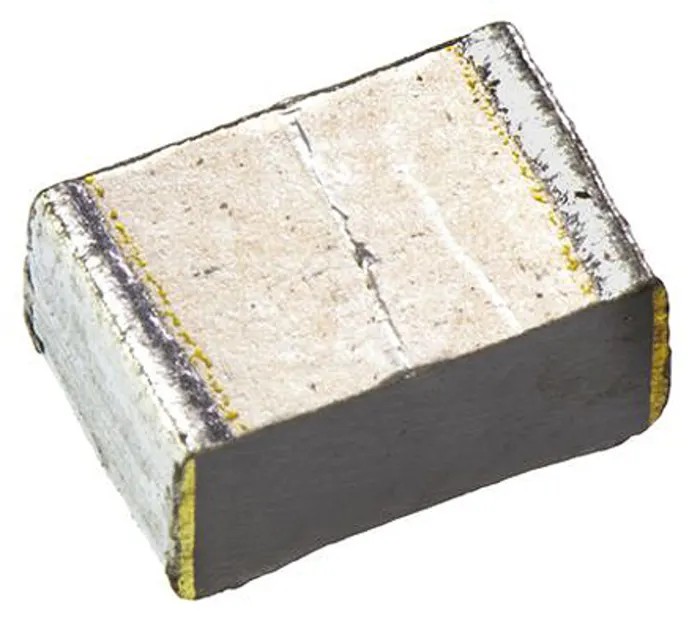

Panasonic Film Capacitor ECHU1C682GX5 6.8nF, 16V AC/DC, Surface Mount

Panasonic ECHU1C682GX5 is a high-quality film capacitor featuring a 6.8nF capacitance and surface mount configuration designed for use in electronic circuits requiring stable time-constant, oscillation, filtering, and audio applications. This capacitor supports a rated AC voltage of 16V and a rated DC voltage of 16V, making it suitable for low-voltage power and signal circuits in various industrial, manufacturing, and electronic component applications.

The device utilizes stacked metallised PPS (Polyphenylene Sulfide) film in a mould-less construction, imparting durability and reliable performance at temperatures up to 125°C. Its compact dimensions of 2mm length, 1.25mm width, and 0.9mm height allow for efficient PCB real estate use, supporting modern compact designs. Furthermore, this capacitor is designed specifically for reflow soldering processes, enabling seamless integration into automated electronics manufacturing lines.

With a low Equivalent Series Resistance (ESR), it enhances circuit efficiency and reduces power loss. Compliance with RoHS standards underscores its environmentally responsible production, essential for commercial and industrial electronics manufacturers. Ideal for applications involving resonance, filtering, and audio circuits, the Panasonic ECHU1C682GX5 offers consistent, long-term reliability and performance.

Constructed from stacked metallised PPS film with mould-less construction. Compact, lightweight design ideal for automated surface mount technology. Rated for 16V AC and 16V DC operation at temperatures up to 125°C. Low ESR characteristics for improved circuit performance.

Suitable for reflow soldering and RoHS compliant. Dimensions: 2mm (L) x 1.25mm (W) x 0.9mm (H).

This Panasonic Film Capacitor is widely used in industrial electronics manufacturing, audio equipment, and filtering applications in laboratory and commercial environments. Explore more Panasonic capacitors and electronic components on EnvMart to meet your design and production requirements.
